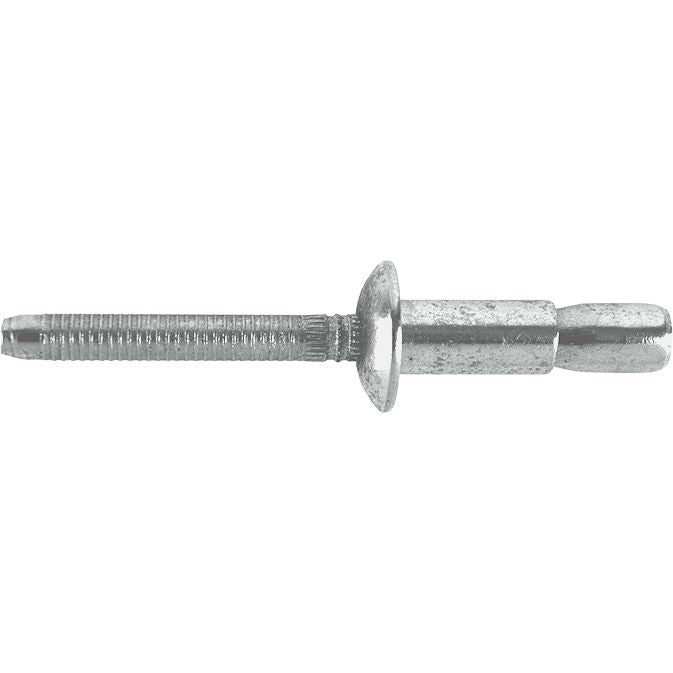

Structural Rivet Internal Lock Dome Head SS 1/4"
(Pack of
50.0)
Dome Head
• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• Standard nosepieces can be used for installation
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 11-120
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M6-1 x 30mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 40mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 35mm
Couldn't load pickup availability
Open End Rivet Large Flange Head SS 1/8"
Couldn't load pickup availability
Nosepiece for 491 Rivet Tool 1/8"
Couldn't load pickup availability
Multi-Grip Rivet Assortment 1200Pcs
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
Couldn't load pickup availability
Structural Rivet Internal Lock Dome Head SS 1/4"
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock 1/4"
Couldn't load pickup availability
Structural Rivet Internal Lock Dome Head SS 1/4"
Couldn't load pickup availability
Product Description
Dome Head• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• Standard nosepieces can be used for installation
Technical Specifications
| Item#: | 1543644 |
|---|---|
| Type | Structural – Internal Lock |
| Head Style | Dome Head |
| Material Body/Mandrel | Stainless Steel/Stainless Steel |
| Diameter | 1/4 " |
| Grip Range | 0.080 – 0.375 " |
| Hole Size | 0.261 – 0.276 " |
| Drill Size | G |
| Head Diameter | 0.525 " |
| Head Height | 0.117 " |
| Body Length | 0.560 " |
| Shear Strength | 2,400 lb |
| Tensile Strength | 1,850 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.97 lb |
