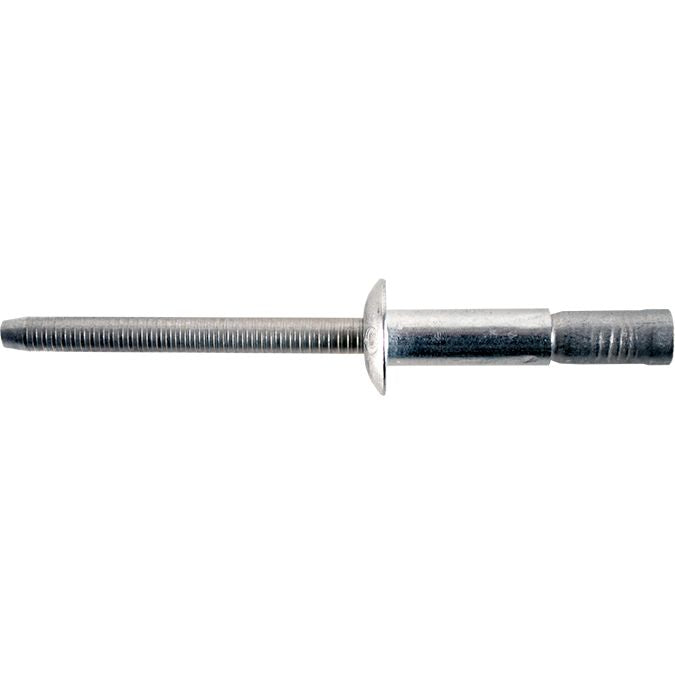

Tigerbolt® Structural Rivet, External Lock, Dome Head, Aluminum, 1/4" Diameter, 0.08 to 0.625" Grip Range, 0.847" Body Length
(Pack of
500)
Dome Head
• Locking feature is visible after the rivet is installed
• The mandrel is retained within the shear plane providing high strength under shear loads
• The external lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Interchangeable with Monobolts®
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• A special nosepiece is required to install External Locking Structural Rivets
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 11-120
Frequently Bought Together
Lockbolt Collar Standard Flange Aluminum 3/16"
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M10-1.25
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 5/32"
Couldn't load pickup availability
HuckBolt® C6L® Rivet Lockbolt Carbon Steel 1/4"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/4"
Couldn't load pickup availability
Solid Rivet Brazier Head Soft Aluminum 1/4"
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
Couldn't load pickup availability
Nylon Cable Tie 7-1/2" Black
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock 1/4"
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 3/16"
Couldn't load pickup availability
Structural Rivet Internal Lock Aluminum 1/4"
Couldn't load pickup availability
Product Description
Dome Head• Locking feature is visible after the rivet is installed
• The mandrel is retained within the shear plane providing high strength under shear loads
• The external lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Interchangeable with Monobolts®
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• A special nosepiece is required to install External Locking Structural Rivets
Technical Specifications
| Item#: | 1557939 |
|---|---|
| Type | Structural – External Lock |
| Head Style | Dome Head |
| Material Body/Mandrel | Aluminum/Aluminum |
| Diameter | 1/4 " |
| Grip Range | 0.080 – 0.625 " |
| Hole Size | 0.261 – 0.276 " |
| Drill Size | G |
| Head Diameter | 0.530 " |
| Head Height | 0.117 " |
| Body Length | 0.847 " |
| Shear Strength | 1,349 lb |
| Tensile Strength | 944 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 4.3211 lb |
