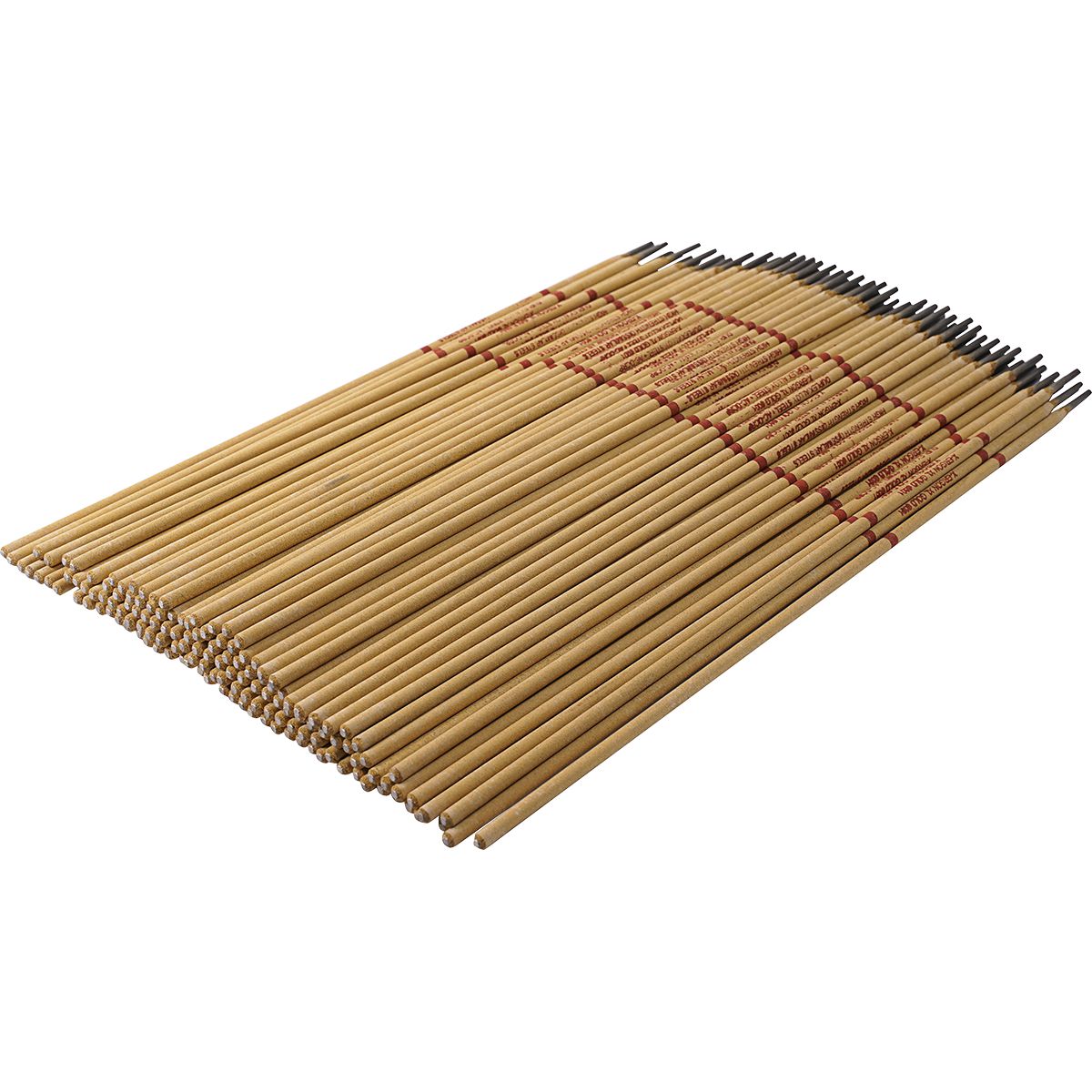

Xl Gold All Steel Electrode Joins Disimialar Metals Tensile Up To 186000 Elongation 32% Polarity Dcep/Ac 97Rb To 35Rc
(Pack of
5)
SKU:EG0013000G Item#: EG0013000G
The standard in all-steel maintenance welding electrodes. Has higher strength, excellent elongation and superior weldability. It is easier to use, the slag is self-lifting, and the deposit has tougher crack resistance. XL Gold™ is the latest generation in all-steel welding electrodes.
• Tougher Welds - Duplex alloy with maximum crack resistance
• Higher Tensile Strength – 186,000 PSI work hardened
• Improved welder appeal and slag removal with the exclusive Chem-A-Tized2 process
• Designed for welding difficult-to-weld steels like alloy steels and dissimilar types of steel
• All-position welding
• Tensile Strength: Up to 186,000 PSI work-hardened/1282 MPa, Up to 128,000 PSI as deposited
• Yield Strength: Up to 90,000 PSI/620 MPa
• Elongation: 32%
• Reduction of Area: 25%
• Machinability: Good with carbide tools
• Corrosion Resistance: Good Hardness: As deposited 97Rb
• Work-Hardened: 35 Rc
• Impact Resistance: 100 ft.-lbs. @ 75°F/25°C
• Heat Resistance: Good up to 750°F/399°C
• Current: DCEP (DC+) or AC
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
333 Dissimilar Steel Stick Rod Electrode 5/32"
$0.00
Couldn't load pickup availability
333 Dissimilar Steel TIG Wire 3/32"
$0.00
Couldn't load pickup availability
333 Dissimilar Steel Stick Rod Electrode 1/16"
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
$0.00
Couldn't load pickup availability
MIG 160i 30-160A 115/230V WeldingMachine
$0.00
Couldn't load pickup availability
Ground Clamp 200A /w 10' Cable
$0.00
Couldn't load pickup availability
Connector DINSE 10-25 Male
$0.00
Couldn't load pickup availability
9-6501 Plasma Cutting Tip
$0.00
Couldn't load pickup availability
9-6004 Plasma Cutting Shield Cup
$0.00
Couldn't load pickup availability
177888 Plasma Cutting Deflector
$0.00
Couldn't load pickup availability
Product Description
The standard in all-steel maintenance welding electrodes. Has higher strength, excellent elongation and superior weldability. It is easier to use, the slag is self-lifting, and the deposit has tougher crack resistance. XL Gold™ is the latest generation in all-steel welding electrodes.• Tougher Welds - Duplex alloy with maximum crack resistance
• Higher Tensile Strength – 186,000 PSI work hardened
• Improved welder appeal and slag removal with the exclusive Chem-A-Tized2 process
• Designed for welding difficult-to-weld steels like alloy steels and dissimilar types of steel
• All-position welding
• Tensile Strength: Up to 186,000 PSI work-hardened/1282 MPa, Up to 128,000 PSI as deposited
• Yield Strength: Up to 90,000 PSI/620 MPa
• Elongation: 32%
• Reduction of Area: 25%
• Machinability: Good with carbide tools
• Corrosion Resistance: Good Hardness: As deposited 97Rb
• Work-Hardened: 35 Rc
• Impact Resistance: 100 ft.-lbs. @ 75°F/25°C
• Heat Resistance: Good up to 750°F/399°C
• Current: DCEP (DC+) or AC
Technical Specifications
| Item#: | EG0013000G |
|---|---|
| Welding Process | Stick |
| Type | Stick |
| Diameter | 5/32 " |
| Tensile Strength | 186,000 PSI |
| Yield Strength | 90,000 PSI |
| Elongation | 32 % |
| Hardness | 35 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.16 lb |
