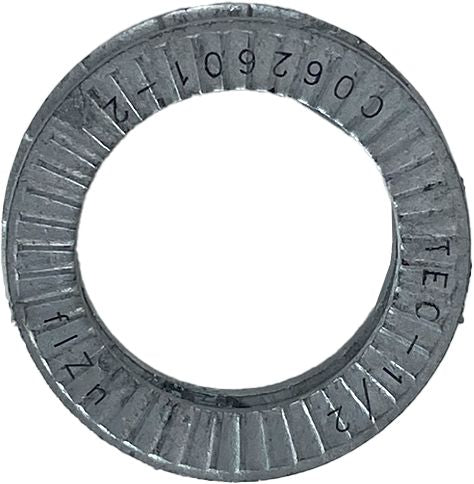

1/2 Standard Self Lock Washer
(Pack of
10)
• Self-locking design creates a wedge under the bolt head or nut that maintains clamp load, prevents unintentional loosening, and secures bolted joints even when exposed to dynamic loads and severe vibration
• Vibration proof according to MIL-STD-1312-7/NASM-1312-7
• Resists loosening due to vibration more effectively than split lock washers or nylon insert lock nuts
• Pre-assembled glued pairs are easy to use and can be installed and removed with standard tools
• Extremely versatile - can be used with blind, through and counterbore holes
• Special Delta Protekt® coating is RoHS compliant and provides better corrosion resistance than traditional zinc
• For use with up to Grade 8, Class 12.9 fasteners
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M6-1 x 45mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 50mm
Couldn't load pickup availability
Acorn Nut A2 Stainless Steel M6-1
Couldn't load pickup availability
DIN 7980 Lock Washer High Collar Steel M12
Couldn't load pickup availability
Lock Washer Internal Tooth 410 Stainless Steel #4
Couldn't load pickup availability
Lock Washer Internal Tooth 410 Stainless Steel #3
Couldn't load pickup availability

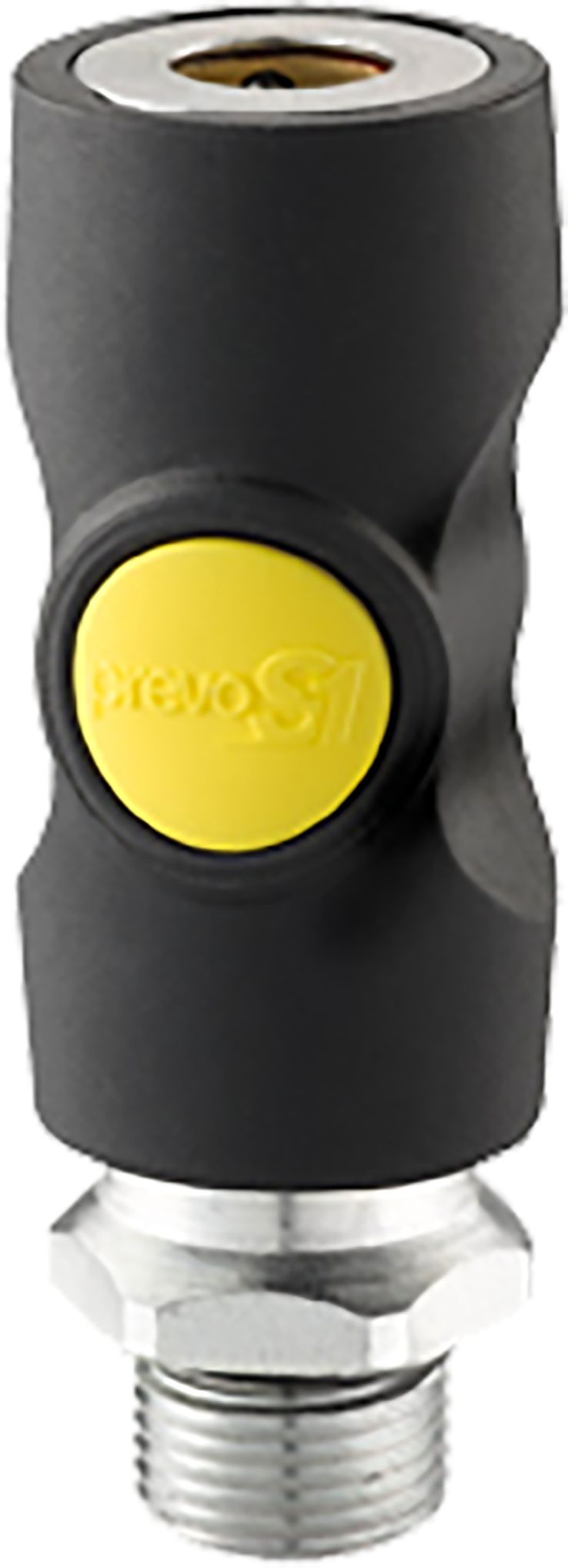

ARO 210 Safety Push-Button Safety Coupler 1/4" Body x 1/4" MNPT
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 3/8" MNPT
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" MNPT
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Couldn't load pickup availability
Lock Washer Non-Linking Steel 3/8"
Couldn't load pickup availability
DIN 127B Lock Washer Steel M20
Couldn't load pickup availability
SAE Flat Washer Low Carbon Steel 1/4"
Couldn't load pickup availability
Lock Washer Internal Tooth 410 SS 3/8"
Couldn't load pickup availability
Machine Screw Slotted Flat Head #8-32 x 1"
Couldn't load pickup availability
Machine Screw Slotted Round Head #10-32 x 1"
Couldn't load pickup availability
Product Description
• Self-locking design creates a wedge under the bolt head or nut that maintains clamp load, prevents unintentional loosening, and secures bolted joints even when exposed to dynamic loads and severe vibration• Vibration proof according to MIL-STD-1312-7/NASM-1312-7
• Resists loosening due to vibration more effectively than split lock washers or nylon insert lock nuts
• Pre-assembled glued pairs are easy to use and can be installed and removed with standard tools
• Extremely versatile - can be used with blind, through and counterbore holes
• Special Delta Protekt® coating is RoHS compliant and provides better corrosion resistance than traditional zinc
• For use with up to Grade 8, Class 12.9 fasteners
Technical Specifications
| Item#: | DY03682900 |
|---|---|
| Nominal Size | 1/2 " |
| Type | Self-Locking Lock Washer |
| Material | Carbon Steel |
| I.D. | 0.53 " |
| O.D. | 0.77 " |
| Finish | Delta Protekt® |
| Thickness | 0.10 " |
| UNSPSC #: | 31161801 |
| TAA Compliant: | No |
| Weight: | 0.06 lb |
Product Restrictions
