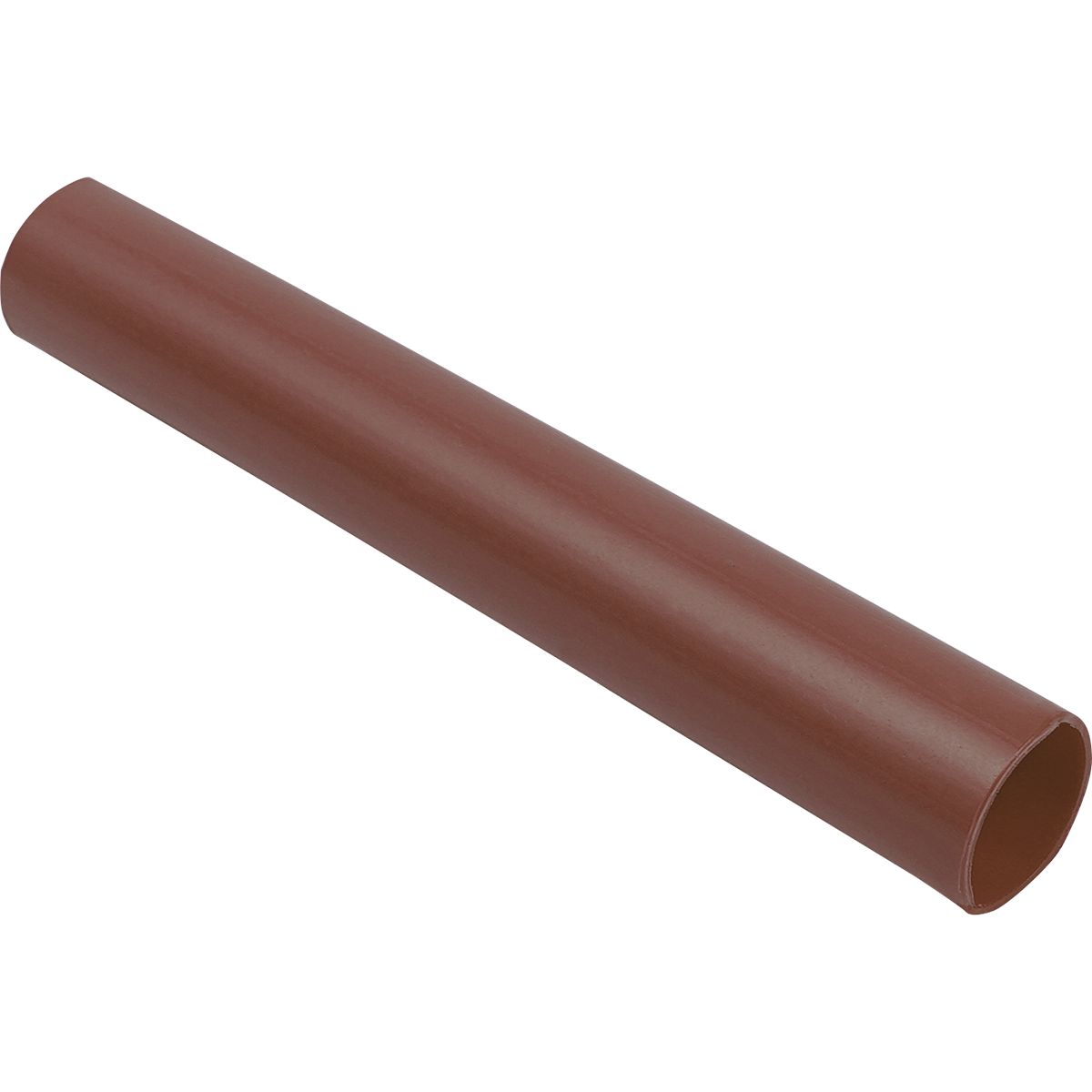

1/8 x 3" Brown Thermapod Heat Shrink Tube
(Pack of
10.0)
Thermal Shrinkable Wire Protection, Double Layer, Double Protection
• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Almost any heat source will convert the Thermapod™ into a moisture-resistant, tailor-fit covering for wire connection
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• When the two layers cool, they become a semi rigid, protective “pod” that seals the wiring from the environment
• Improved encapsulation and strain damage from flexing
• Temperature Rating: -67°F to +230°F (-55°C to +110°C)
• Shrink Temperature: 275°F/135°C
Frequently Bought Together
Super 33 Vinyl Electrical Tape Black 3/4" x 20'
Couldn't load pickup availability
Vinyl Electrical Tape Black 3/4" x 60', 10 Rolls Per Pack
Couldn't load pickup availability
Insulform Heat Shrink Tubing 16 to 14 AWG Black
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 18 to 16 AWG Black
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 4 to 1/0 AWG Black
Couldn't load pickup availability
Heat Shrink Tubing 12 to 10 AWG Black
Couldn't load pickup availability
Spot Weld Remover Drill Bit HSS 2-13/16(M8)
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
Couldn't load pickup availability
Heat Shrink Tubing Black 0.6 x 12"
Couldn't load pickup availability
Super 88 Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
3/4" Installation Tool Zipshield Harness Wrap
Couldn't load pickup availability
Product Description
Thermal Shrinkable Wire Protection, Double Layer, Double Protection• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Almost any heat source will convert the Thermapod™ into a moisture-resistant, tailor-fit covering for wire connection
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• When the two layers cool, they become a semi rigid, protective “pod” that seals the wiring from the environment
• Improved encapsulation and strain damage from flexing
• Temperature Rating: -67°F to +230°F (-55°C to +110°C)
• Shrink Temperature: 275°F/135°C
Technical Specifications
| Item#: | DY21870549 |
|---|---|
| Type | Pre-Cut |
| Style | Dual Wall |
| Wire Gauge Coverage | 22-20 AWG |
| Diameter | 1/8 " |
| Length | 3 " |
| Color | Brown |
| I.D. Before Shrinkage | 0.125 " |
| I.D. After Shrinkage | 0.023 " |
| Shrink Ratio | 3:1 |
| Dielectric Strength | 500 V/mm |
| Temperature Rating | -67°F to 230°F/ -55°C to 110°C |
| Shrink Temperature | 275°F/135°C |
| Tensile Strength | 1,500 PSI |
| Approvals | SAE-AMS-DTL - 23053/4, CL-1 |
| Description | Thermapod Heat Shrink Tubing Brown 1/8 x 3" |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.125 lb |
