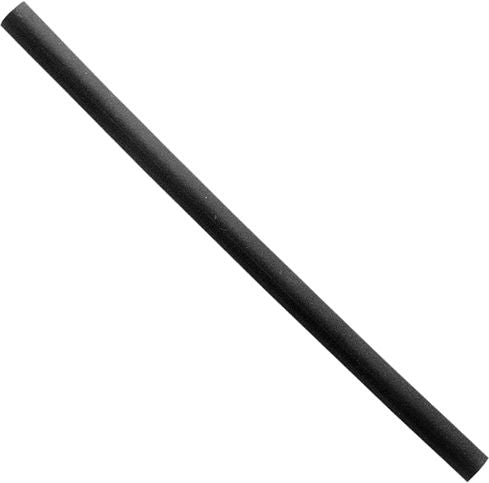

Tru-Shrink Heat Shrink Tubing, 20 to 18 AWG, Black, 1/8" Diameter, 6" Length, 0.125" ID Before and 0.062" ID After Shrinkage
(Pack of
10)
• 2:1 shrink ratio
• Easily assembled over components, connectors or other irregular shapes
• Flame-retardant
• Non-corrosive
• Non-nutrient – fungus resistant
• Excellent fluid resistance
• Meets or exceeds MIL-1-23053 D/5, Class I, II and III; AMS 3636C and AMS 3637B requirements
• Tensile strength: 1,500 PSI
• Elongation: 200%
• Dielectric strength: 500V/mil
• Volume resistivity: 1015 Ohm/cm
• Heat shock: Four hours at 482°F (250°C)
• Low temperature flexibility: Four hours at –67°F (–55°C)
• Longitudinal change: Less than 5%
• Secant modulus: 12,000 PSI
• Rated at 600V
• Use as electrical insulation over cable splices and terminations, and for wire harness covering, bundling and wire marker identification
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Frequently Bought Together
Heat Shrink Tubing 30 to 18 AWG Black
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
Couldn't load pickup availability
.293X6#2 SEMIRIGID SHRINK TUB/DLG-406
Couldn't load pickup availability
Heat Shrink Tubing 14 to 4 AWG Clear/Yellow
Couldn't load pickup availability
1/8 x 3" Brown Thermapod Heat Shrink Tube
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
Couldn't load pickup availability
Heat Shrink Tubing 20 to 16 AWG Black
Couldn't load pickup availability
Euro-Black™ Satin Finish 15oz
Couldn't load pickup availability
Flex-E-6020 High Viscosity Seam Sealer
Couldn't load pickup availability
Snap Bushing Nylon Black 1-5/16"
Couldn't load pickup availability
Vinyl Electrical Tape White 3/4" x 66'
Couldn't load pickup availability
Tite-Seal II Cord and Cable Grip 1/2" NPT
Couldn't load pickup availability
Product Description
• 2:1 shrink ratio• Easily assembled over components, connectors or other irregular shapes
• Flame-retardant
• Non-corrosive
• Non-nutrient – fungus resistant
• Excellent fluid resistance
• Meets or exceeds MIL-1-23053 D/5, Class I, II and III; AMS 3636C and AMS 3637B requirements
• Tensile strength: 1,500 PSI
• Elongation: 200%
• Dielectric strength: 500V/mil
• Volume resistivity: 1015 Ohm/cm
• Heat shock: Four hours at 482°F (250°C)
• Low temperature flexibility: Four hours at –67°F (–55°C)
• Longitudinal change: Less than 5%
• Secant modulus: 12,000 PSI
• Rated at 600V
• Use as electrical insulation over cable splices and terminations, and for wire harness covering, bundling and wire marker identification
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | 61655 |
|---|---|
| Type | Pre-Cut |
| Style | Thin Wall |
| Wire Gauge Coverage | 20-18 AWG |
| Diameter | 1/8 " |
| Length | 6 " |
| Color | Black |
| I.D. Before Shrinkage | 0.125 " |
| I.D. After Shrinkage | 0.06 " |
| Wall Thickness After Shrinkage | 0.020 " |
| Dielectric Strength | 500 V/mm |
| Voltage Rating | 600 V |
| Elongation | 200 % |
| Tensile Strength | 1,500 PSI |
| Heat Shock | 4 hours at 482 degrees F |
| Secant Modulus | 12,000 PSI |
| Longitudinal Change | Less than 5% |
| Approvals | CSA, UR and Meets or exceeds MIL-1-23053 D/5, Class I, II and II; AMS 3636C and AMS 3637B requirements |
| UNSPSC #: | 39121723 |
| TAA Compliant: | No |
| Weight: | 0.02 lb |
