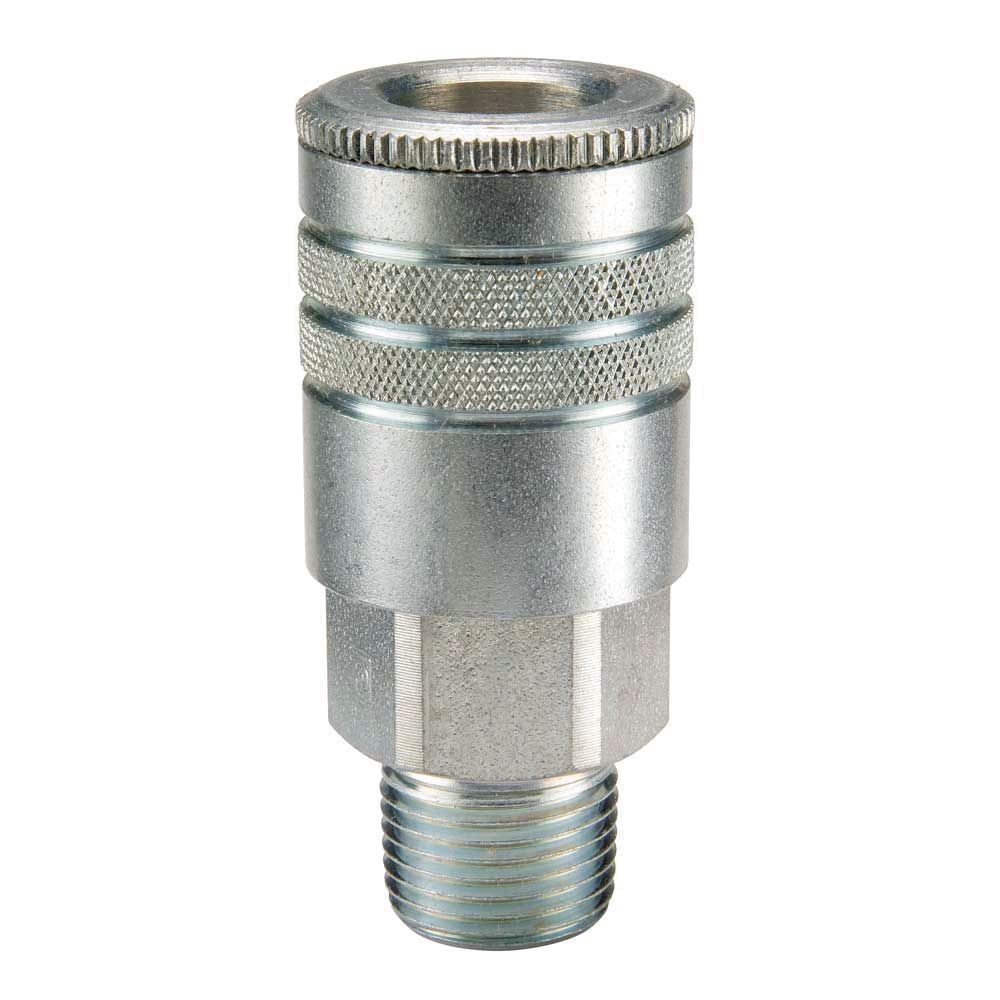

20 Series Coupler, Steel, Standard Industrial, 300PSI, Male NPTF, 3/8" Body Size, 1/2-14 Thread Size
(Pack of
1)
SKU:1267478 Item#: 1267478
20 Series Pneumatic Couplers mate with Industrial Interchange nipples, the standard male tip of the pneumatic industry.
• Mates with Industrial Interchange nipples manufactured to A-A-59439 (MIL-C-4109F, ISO 6150-B) global standards
• 1/4” body size has a brass body and steel valve, 3/8” body size has all steel construction
• Tubular valve delivers high flow with minimal pressure drop
• Integral sleeve guard resists accidental disconnection
• Air compressors
• Pneumatic tools
• Water
• Grease
• Paint
Frequently Bought Together
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
High Flow Safety Push-Button Safety Coupler 3/8" Body x 1/4" FNPT
$0.00
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 3/8" FNPT
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Hose End Brass 3/8 x 3/8"
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 11/16 to 1-1/2"
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Universal Air Coupler Brass 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
$0.00
Couldn't load pickup availability
Product Description
20 Series Pneumatic Couplers mate with Industrial Interchange nipples, the standard male tip of the pneumatic industry.• Mates with Industrial Interchange nipples manufactured to A-A-59439 (MIL-C-4109F, ISO 6150-B) global standards
• 1/4” body size has a brass body and steel valve, 3/8” body size has all steel construction
• Tubular valve delivers high flow with minimal pressure drop
• Integral sleeve guard resists accidental disconnection
• Air compressors
• Pneumatic tools
• Water
• Grease
• Paint
Technical Specifications
| Item#: | 1267478 |
|---|---|
| Manufacturer Model #: | 24F |
| Type | Coupler |
| Style | Standard Industrial |
| Body Size | 3/8 " |
| Thread Style | Male NPTF |
| Thread Size | 1/2-14 |
| Working Pressure | 300 PSI |
| Material | Steel |
| Length | 2.55 " |
| Seal Material | Nitrile |
| Hex Size | 0.88 " |
| Locking Mechanism | 8 Ball |
| UNSPSC #: | 27131613 |
| TAA Compliant: | No |
