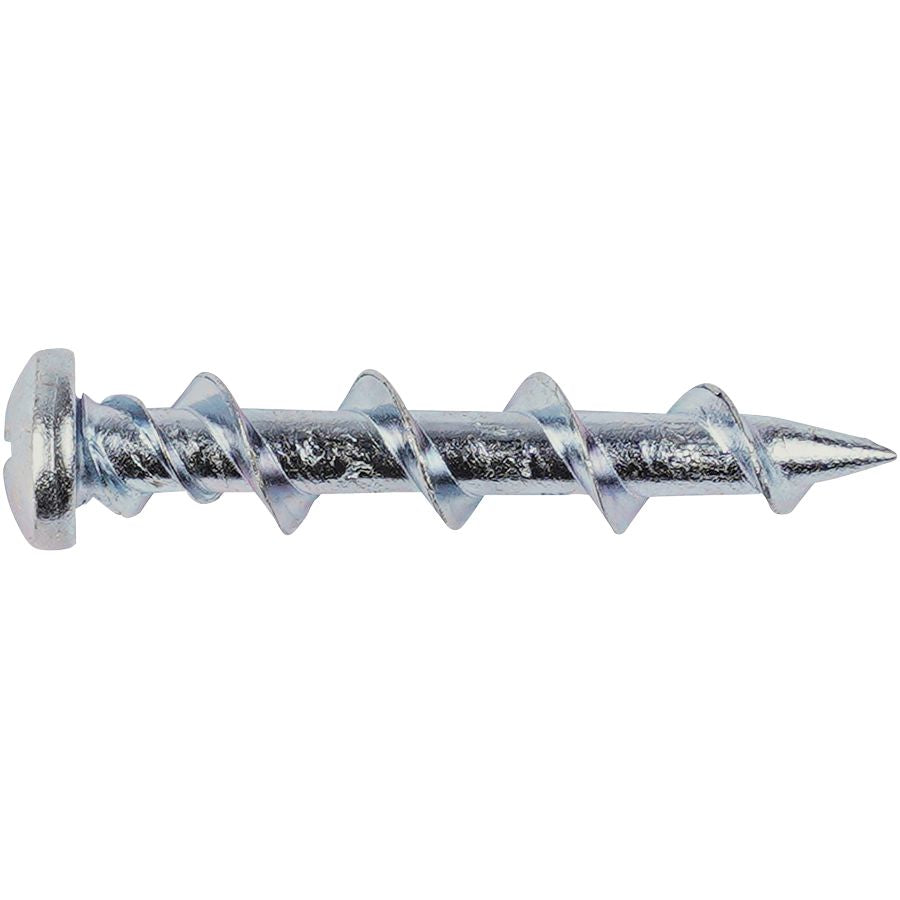

3/16X1-1/4 Chrome Ez-One Phillips Pan Hd
(Pack of
25.0)
• Unique multi-substrate anchor where the screw is the anchor
• High profile threads make fastening easy in wood, wallboard and masonry-based materials
• Deep cutting corkscrew-like threads provide a smooth entry and powerful hold
• When removed, leaves a much smaller hole than toggle bolts or expansion anchors
• Made of case-hardened steel and chrome plated for corrosion resistance
• Drills its own hole in wallboard and wood (use 3/16" masonry bit for anchoring into concrete, grout, brick, and plaster)
• Pull-Out Strength
– 5/8'' Wall Board: 135 lbs.
– 1/2'' Plywood: 255 lbs.
– Concrete, 4,000 PSI, 1'' Deep: 700 lbs.
– Grout, 1'' Deep: 285 lbs.
• Shear Strength
– 5/8'' Wall Board: 360 lbs.
– 1/2'' Plywood: 600 lbs.
– Concrete, 4,000 PSI, 1'' Deep: 1070 lbs.
– Grout, 1'' Deep: 825 lbs.
Frequently Bought Together
Toggle Bolt Anchor Assortment 70Pcs
Couldn't load pickup availability
Drill 'N Drive Masonry Anchor Assortment 283Pcs
Couldn't load pickup availability
Standard Self-Drilling Wallboard Anchor Kit 41Pcs
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 30mm
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Masonry Anchor Star Head Steel 1/4 x 1-3/4"
Couldn't load pickup availability
Masonry Anchor TORX® Head Steel 1/4 x 6"
Couldn't load pickup availability
Masonry Anchor TORX®Head Steel 1/4 x 5"
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Product Description
• Unique multi-substrate anchor where the screw is the anchor• High profile threads make fastening easy in wood, wallboard and masonry-based materials
• Deep cutting corkscrew-like threads provide a smooth entry and powerful hold
• When removed, leaves a much smaller hole than toggle bolts or expansion anchors
• Made of case-hardened steel and chrome plated for corrosion resistance
• Drills its own hole in wallboard and wood (use 3/16" masonry bit for anchoring into concrete, grout, brick, and plaster)
• Pull-Out Strength
– 5/8'' Wall Board: 135 lbs.
– 1/2'' Plywood: 255 lbs.
– Concrete, 4,000 PSI, 1'' Deep: 700 lbs.
– Grout, 1'' Deep: 285 lbs.
• Shear Strength
– 5/8'' Wall Board: 360 lbs.
– 1/2'' Plywood: 600 lbs.
– Concrete, 4,000 PSI, 1'' Deep: 1070 lbs.
– Grout, 1'' Deep: 825 lbs.
Technical Specifications
| Item#: | DY09816000 |
|---|---|
| Diameter | 3/16 " |
| Length | 1-1/4 " |
| Type | Screw Anchor |
| Material | Carbon Steel |
| Finish | Chrome Plated |
| Drive | Phillips |
| Head Style | Pan |
| Drive Style | Phillips |
| UNSPSC #: | 31162104 |
| TAA Compliant: | No |
| Weight: | 0.19 lb |
Product Restrictions
