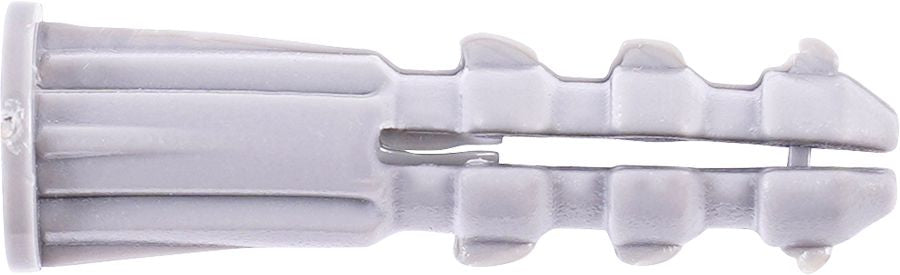

3/16x7/8 Gray Ribbed Plastic Wall Anchor
(Pack of
100)
SKU:DY09580009 Item#: DY09580009
• Works in concrete, brick, masonry or drywall
• Ribbed body expands and “bites in'' to the gripping surface to give a very dependable fastening application
• Safe for use in blind applications where electrical wiring might be present
• Yellow plastic anchor has a ribbed body plus gripping tabs on each side of the neck
• Minimum material thickness: 3/8”
Note: Strengths are dependent on size of anchor and strength of material and will vary depending on application. Strengths are higher on thicker materials.
Frequently Bought Together
Masonry Anchor TORX® Flat Head Steel 1/4 x 1-3/4"
$0.00
Couldn't load pickup availability
Sleeve Type Stud Bolt Anchor Steel 5/16 x 3-1/2"
$0.00
Couldn't load pickup availability
Double Expansion Shield Anchor Alloy Steel 5/16"
$0.00
Couldn't load pickup availability
Lockbolt Collar Standard Flange Aluminum 3/16"
$0.00
Couldn't load pickup availability
Hex Flange Nut Grade 8 Steel M6-1
$0.00
Couldn't load pickup availability
Sheet Metal Screw Phillips Truss Head #14 x 3/4"
$0.00
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
$0.00
Couldn't load pickup availability
Bumper Fascia Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
SNAPTOGGLE® Toggle Bolt Anchor 3/16-24
$0.00
Couldn't load pickup availability
E-Z Toggleâ„¢ Self-Drilling Wall Anchor
$0.00
Couldn't load pickup availability
1/4-20 Joggle-A-Toggle Plus
$0.00
Couldn't load pickup availability
Product Description
• Works in concrete, brick, masonry or drywall• Ribbed body expands and “bites in'' to the gripping surface to give a very dependable fastening application
• Safe for use in blind applications where electrical wiring might be present
• Yellow plastic anchor has a ribbed body plus gripping tabs on each side of the neck
• Minimum material thickness: 3/8”
Note: Strengths are dependent on size of anchor and strength of material and will vary depending on application. Strengths are higher on thicker materials.
Technical Specifications
| Item#: | DY09580009 |
|---|---|
| Length | 7/8 " |
| Type | Plastic Screw Anchor |
| Size | 3/16 X 7/8 |
| Diameter | 3/16 " |
| Material | Plastic |
| Drill Size | 3/16 " |
| Grip Range | 3/8 and up " |
| Color | Gray |
| Minimum Wall Thickness | 3/8 " |
| Screw Size | #6 or #8 |
| Tensile Pull-Out Strength | 40 - 58 lb |
| Shear Proof Test Load | 60 - 125 lb |
| UNSPSC #: | 31162103 |
| TAA Compliant: | Yes |
| Weight: | 0.06 lb |
