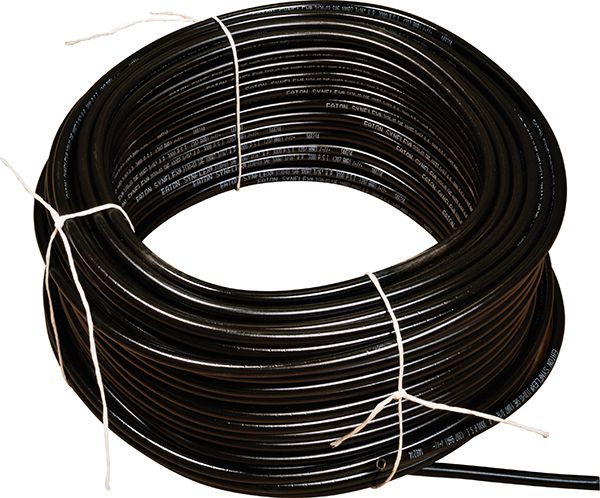

3130 Hydraulic Hose, Polyurethane, Spiral/Braided Synthetic Fiber, 3/16" ID, 0.427" OD, 250' Length, 3000PSI, SAE 100R7
(Pack of
250)
SKU:20427 03 Item#: 20427 03
• Agency Ratings: SAE 100R7
• Fittings Certified: 903 Series
• Agency Approvals: None
• Construction:
– Inner Tube: Nylon-lined core tube
– Reinforcement: Spiral or braided synthetic fiber**
– Cover: Black perforated polyurethane
• Temperature Range:
– Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)
– Water-based fluids: –40°F to +150°F (–40°C to +65°C)
• Application Note: General hydraulic operations, fork and man lifts, material handling, high-pressure gas transfer, chemical transfer
**3/4" – 1" hoses are spiral. All others are braided.
Frequently Bought Together
3TR7N Hydraulic Thermoplastic Hose 0.57" x 250'
$0.00
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 1.04" x 50'
$0.00
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 1.33" x 200'
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN 10.7 x 15.5mm
$0.00
Couldn't load pickup availability
Spacer Ring Orange/White
$0.00
Couldn't load pickup availability
Spacer Ring Green
$0.00
Couldn't load pickup availability
All-Plastic Ergonomic Venturi Blow Gun
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 3/8-18 x 1/4-18
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
$0.00
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.49" x 250'
$0.00
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.33" x 500'
$0.00
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.33" x 500'
$0.00
Couldn't load pickup availability
Upper Grille Retainer Nylon 1-1/4"
$0.00
Couldn't load pickup availability
DTM Primer Tan
$0.00
Couldn't load pickup availability
Ice Melter with Propel® 65lb
$0.00
Couldn't load pickup availability
Upper Grille Retainer Nylon 1-1/4"
$0.00
Couldn't load pickup availability
DTM Primer Tan
$0.00
Couldn't load pickup availability
Ice Melter with Propel® 65lb
$0.00
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE 100R7• Fittings Certified: 903 Series
• Agency Approvals: None
• Construction:
– Inner Tube: Nylon-lined core tube
– Reinforcement: Spiral or braided synthetic fiber**
– Cover: Black perforated polyurethane
• Temperature Range:
– Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)
– Water-based fluids: –40°F to +150°F (–40°C to +65°C)
• Application Note: General hydraulic operations, fork and man lifts, material handling, high-pressure gas transfer, chemical transfer
**3/4" – 1" hoses are spiral. All others are braided.
Technical Specifications
| Item#: | 20427 03 |
|---|---|
| Manufacturer Model #: | 3130-03003 |
| Type | Thermoplastic Hose |
| Category / Performance | Medium Pressure |
| Industry Rating 1 | SAE 100R7 |
| Manufacturer Series Number | 3130 |
| Manufacturer Series Name | 3130 |
| Working Pressure | 3,000 PSI |
| Burst Pressure | 12,000 PSI |
| Inner Tube Material | Nylon-lined Core |
| Hose Reinforcement | Spiraled or braided synthetic fiber reinforcement |
| Hose Cover Material | Perforated Polyurethane |
| Fitting Series | U Series or 903 Series |
| Temperature | Petroleum based fluids -40F to 212F, Water based or fire-resistant fluids to +150F |
| Color | Black |
| Size | 3/16 (-3) |
| SynFlex Part No. | 3130-03003 |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 12.5 lb |
