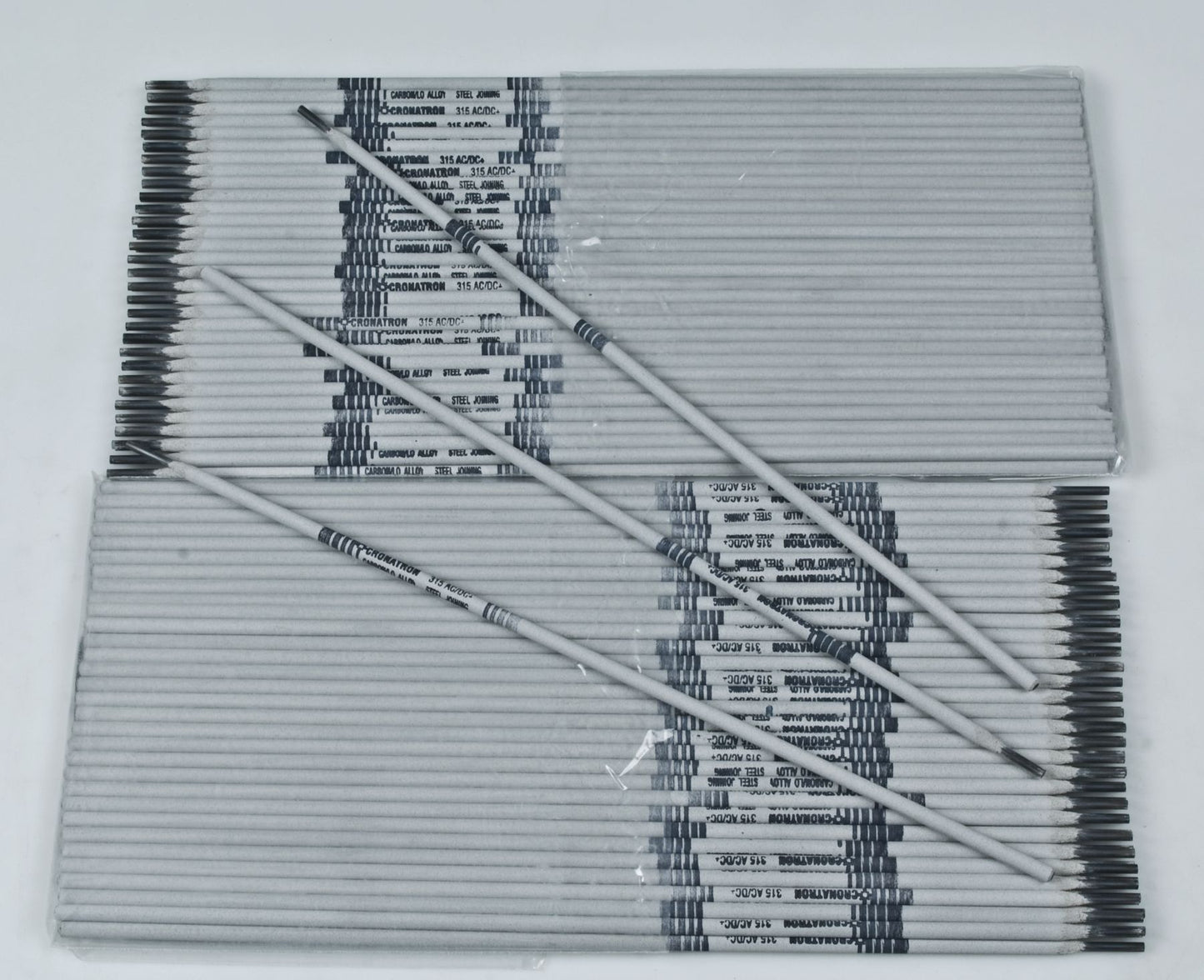

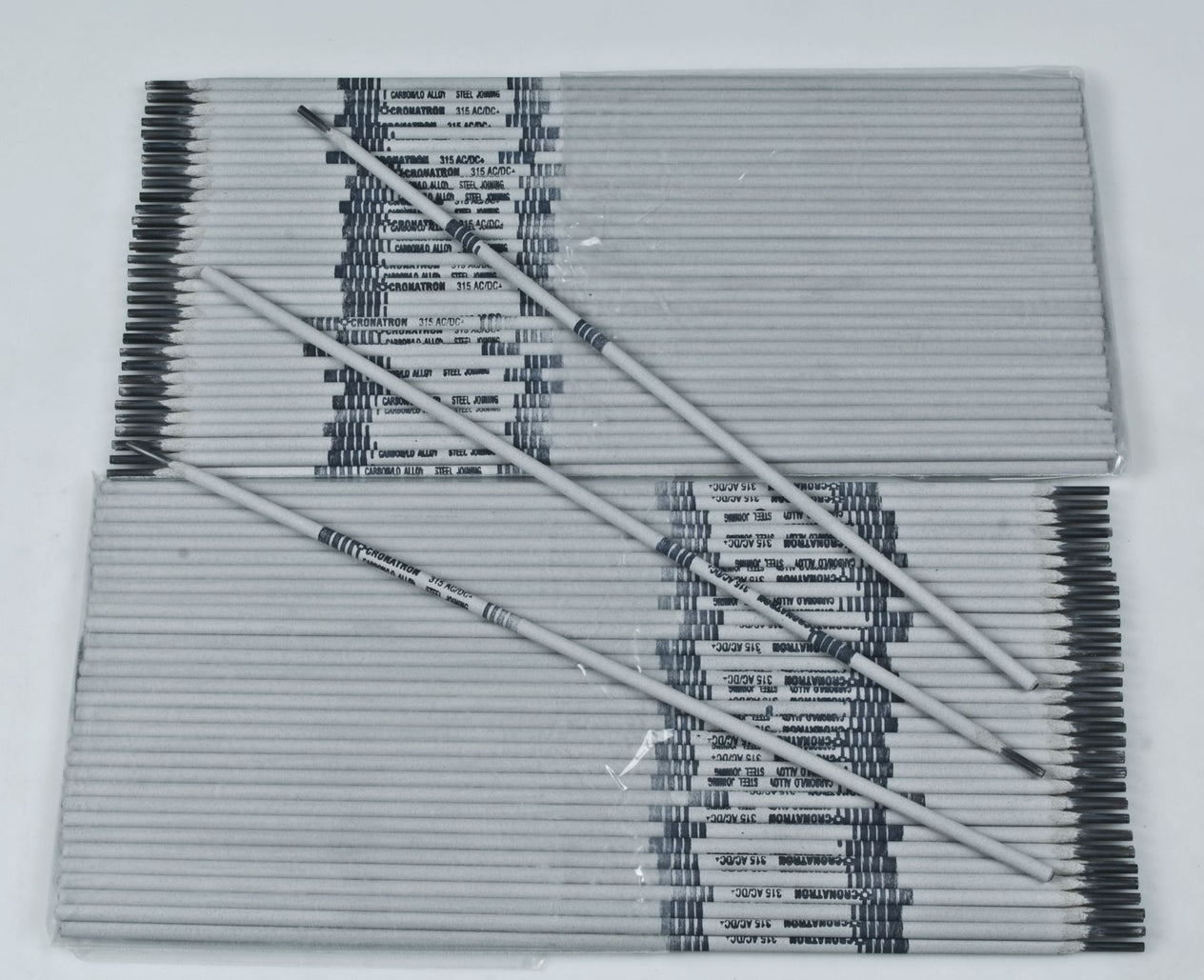

315 Mild and Carbon Steel Low Hydrogen Stick Rod Electrode, Flux Coated, 235 HB Hardness, 90 to 160 Amps, DCRP Polarity, 1/8"
(Pack of
10)
SKU:CW1511 Item#: CW1511
Maintenance engineered, all-position, high-strength, hydrogen-controlled electrodes and wires for difficult weldments of low carbon, low alloy and cast steels.
Superior Advantages
• Versatile – joins a wide variety of carbon and low alloy steels, can be used in all positions
• Strong – produces tough welds with high impact strength and elongation
Tensile Strength: 86,500 PSIYield Strength: 72,000 PSIElongation: 29%Hardness: 235 BHNPolarity: DC Reverse
Low Hydrogen electrode for repairs on low/medium carbon low alloy steels in the 70 to 80 ksi tensile strength such as structural steels, frames, cast steel housings, heavy equipment and I-beams
Typical Applications
• Heavy equipment repairs – buckets, liners, pins, etc.
• Structural members – H-beams, frames, angle iron
• Mild and low-alloy steels – chains and chain links
• Pipes and pipe flanges
• Rear end housings and spring block hangers
Usage ProcedureFor electrodes, use AC or DC reverse polarity. Use close arc with either stringer or weave technique. For vertical welds, use rapid weave and hesitate over each crater before extinguishing arc.
Frequently Bought Together
E7024Mild /Carbon Steel Stick Electrode 3/16"
$0.00
Couldn't load pickup availability
161 Arc Prep Metal Working Electrode 1/8
$0.00
Couldn't load pickup availability
704 Mild/Carbon Steel Stick Rod Electrode 1/8"
$0.00
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
$0.00
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .045" 33lb
$0.00
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .035" 33lb
$0.00
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .062" 33lb
$0.00
Couldn't load pickup availability
9-6004 Plasma Cutting Shield Cup
$0.00
Couldn't load pickup availability
177888 Plasma Cutting Deflector
$0.00
Couldn't load pickup availability
20862 Plasma Cutting Electrode
$0.00
Couldn't load pickup availability
Product Description
Maintenance engineered, all-position, high-strength, hydrogen-controlled electrodes and wires for difficult weldments of low carbon, low alloy and cast steels.Superior Advantages
• Versatile – joins a wide variety of carbon and low alloy steels, can be used in all positions
• Strong – produces tough welds with high impact strength and elongation
Tensile Strength: 86,500 PSIYield Strength: 72,000 PSIElongation: 29%Hardness: 235 BHNPolarity: DC Reverse
Low Hydrogen electrode for repairs on low/medium carbon low alloy steels in the 70 to 80 ksi tensile strength such as structural steels, frames, cast steel housings, heavy equipment and I-beams
Typical Applications
• Heavy equipment repairs – buckets, liners, pins, etc.
• Structural members – H-beams, frames, angle iron
• Mild and low-alloy steels – chains and chain links
• Pipes and pipe flanges
• Rear end housings and spring block hangers
Usage ProcedureFor electrodes, use AC or DC reverse polarity. Use close arc with either stringer or weave technique. For vertical welds, use rapid weave and hesitate over each crater before extinguishing arc.
Technical Specifications
| Item#: | CW1511 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 1/8 " |
| Tensile Strength | 86,500 PSI |
| Yield Strength | 72,000 PSI |
| Elongation | 29 % |
| Base Metal | Mild & Carbon Steel |
| Hardness | 235 BHN |
| Polarity | DCRP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 10.5 lb |
