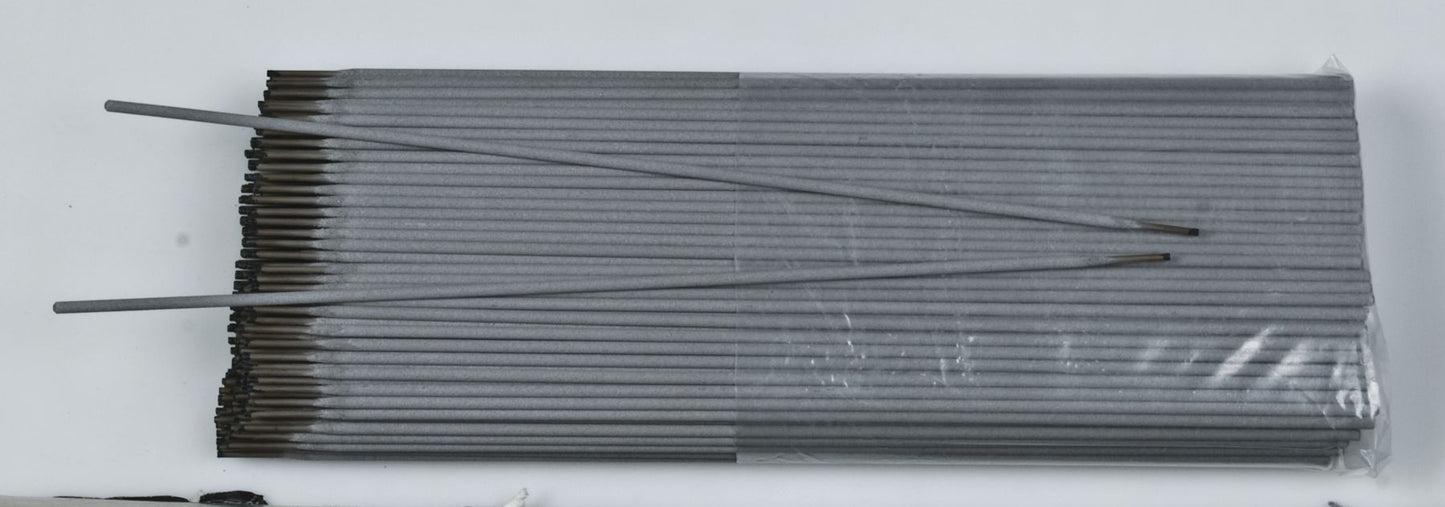

333 Dissimilar Steel Stick Rod Electrode, Flux Coated, 30 to 45 Amps, 35% Elongation, DCRP/AC Polarity, 1/16"
(Pack of
5)
SKU:CW1877 Item#: CW1877
All-position alloys for joining dissimilar steels – provides high-strength, crack-free welds on all combinations of weldable steel.

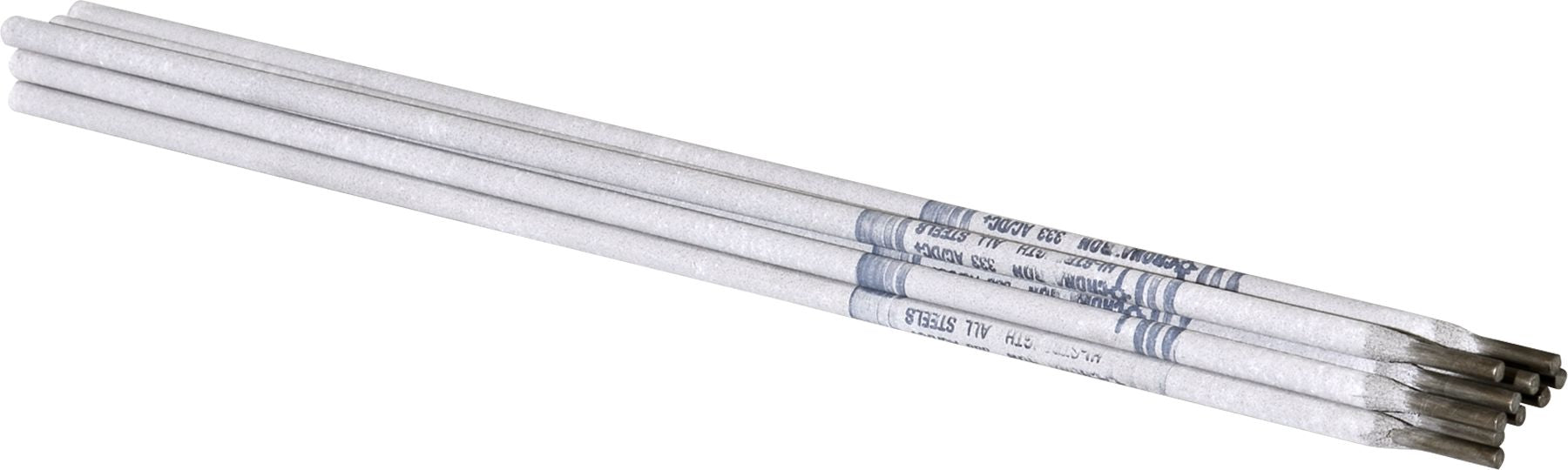

333 Electrode – 1/16" Dia.
Cronatron Alloy
High-Strength Alloy for Broken Stud Extraction
30A – 45A (DCRP/AC)
All-Position
To Extract Any Position 1/4" and Under
Superior Advantages
• Takes the guesswork out of alloy selection – can be used on ANY weldable steel
• High strength and elongation provide strong, crack-free welds
• Smooth, quiet arc, easy slag release
• Moisture-Resistant Coating
Tensile Strength: 125,000 PSI
Yield Strength: 100,000 PSI
Elongation: Up to 35%
Hardness: 235 BHN
Polarity: AC or DC Reverse
Usage ProcedureUse AC or DC reverse polarity. Maintain a medium to short arc. A stringer or weave bead is recommended for flat and horizontal welds.
Frequently Bought Together
601Xl Fc Multi Steel Flux Core Mig Wire .035X10LB
$0.00
Couldn't load pickup availability
X-Tractalloy Extracting Welding Electrode Non-Conductive Flux 5/32
$0.00
Couldn't load pickup availability
707 Dissimilar Steel Stick Rod Electrode 5/32"
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Front Rear Bumper Specialty Rivet 3.2mm
$0.00
Couldn't load pickup availability
201 Rectangular Wear Disc Plate Kit
$0.00
Couldn't load pickup availability
Industrial Graphite Block 2 x 10 x 12"
$0.00
Couldn't load pickup availability
Wear Plates Used By Maintenance Welder
$0.00
Couldn't load pickup availability
1100 Gouging and Cutting Stick Rod Electrode 1/4"
$0.00
Couldn't load pickup availability
889 Cast Iron Stick Rod Electrode 3/32"
$0.00
Couldn't load pickup availability
889 Cast Iron Stick Rod Electrode 3/16"
$0.00
Couldn't load pickup availability
Product Description
All-position alloys for joining dissimilar steels – provides high-strength, crack-free welds on all combinations of weldable steel.333 Electrode – 1/16" Dia.
Cronatron Alloy
High-Strength Alloy for Broken Stud Extraction
30A – 45A (DCRP/AC)
All-Position
To Extract Any Position 1/4" and Under
Superior Advantages
• Takes the guesswork out of alloy selection – can be used on ANY weldable steel
• High strength and elongation provide strong, crack-free welds
• Smooth, quiet arc, easy slag release
• Moisture-Resistant Coating
Tensile Strength: 125,000 PSI
Yield Strength: 100,000 PSI
Elongation: Up to 35%
Hardness: 235 BHN
Polarity: AC or DC Reverse
Usage ProcedureUse AC or DC reverse polarity. Maintain a medium to short arc. A stringer or weave bead is recommended for flat and horizontal welds.
Technical Specifications
| Item#: | CW1877 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 1/16 " |
| Tensile Strength | 125,000 PSI |
| Yield Strength | 100,000 PSI |
| Elongation | 35 % |
| Polarity | DCRP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.5 lb |
