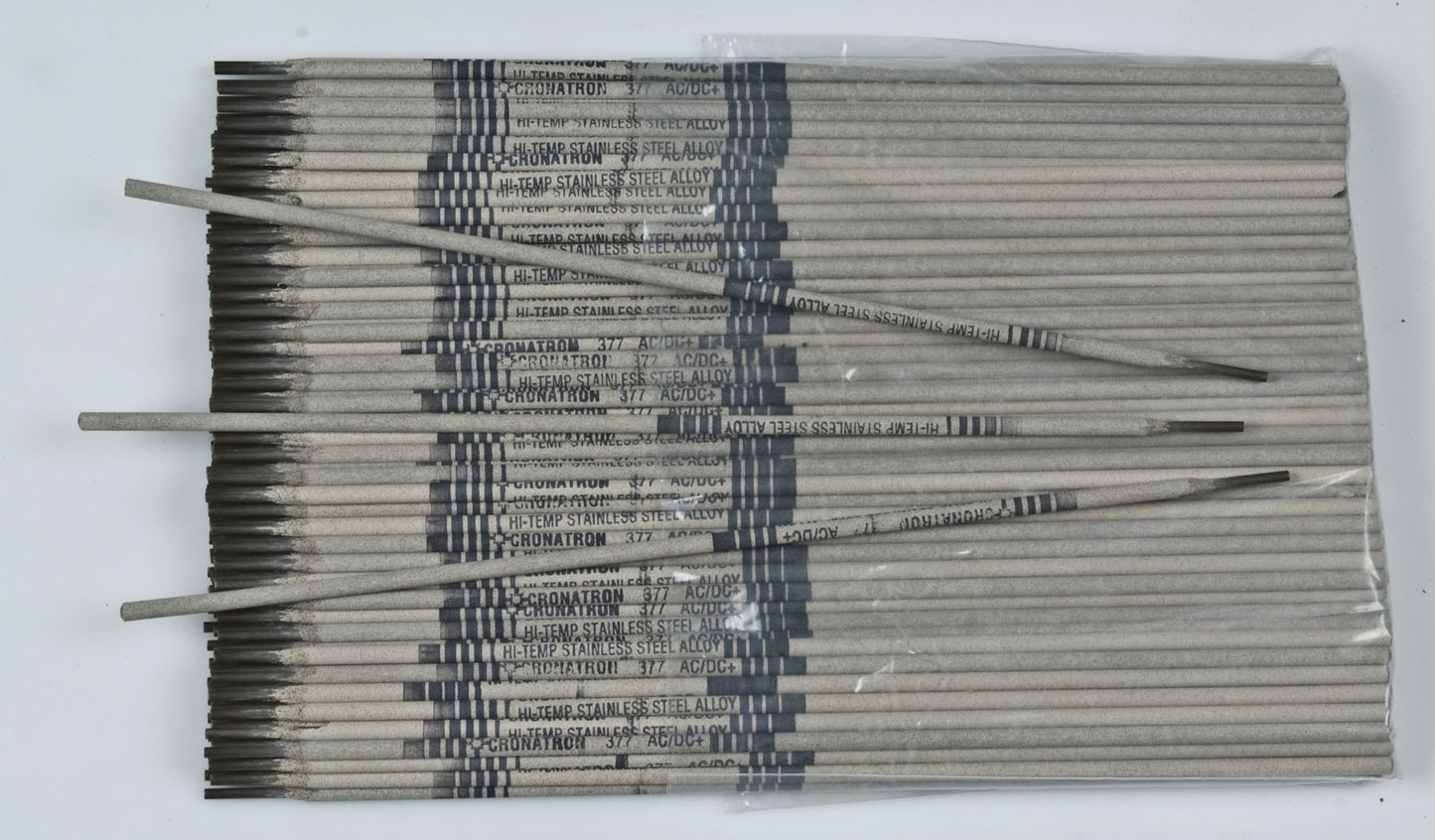

377 Stainless Steel Stick Rod Electrode, 190 HB Hardness, 40 to 70 Amps, 50% Elongation, DCRP/AC Polarity, 3/32"
(Pack of
5)
SKU:CW1071 Item#: CW1071
High resistance to heat and corrosion with high-impact and high-strength characteristics.
Superior Advantages
• Extremely resistant to highly-corrosive acids
• High temperature applications up to1,600°F (871°C)
• Excellent operating characteristics
High-temperature: up to 2,100°F (1,149°C). Repairs furnace parts, refinery and chemical processing equipment.
Tensile Strength: 95,000 PSI
Hardness: 190 BHN
Elongation: 50%
Polarity: AC or DC Reverse
Typical Applications
• Severe service conditions where chemicals and acids are present
• Paper manufacturing equipment
• Food and chemical processing equipment
Usage ProcedureUse AC or DC reverse polarity. Maintain short arc and deposit stringer beads, peen to relieve stress in crack-sensitive areas. Remove slag between multiple passes. Avoid flat or concave deposits.
Frequently Bought Together
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
$0.00
Couldn't load pickup availability
ER316L Stainless Steel MIG Welding Wire 0.035"
$0.00
Couldn't load pickup availability
124 Stainless Steel Stick Electrode 3/32
$0.00
Couldn't load pickup availability
E309L-16 Stainless Steel Stick Rod Electrode 3/32"
$0.00
Couldn't load pickup availability
Cap Whip-Lead Connector #4 to #1
$0.00
Couldn't load pickup availability
Oxygen Safety Cap Heavy Duty
$0.00
Couldn't load pickup availability
1/2 on 1/2 Dimension I Double Pass Overlay
$0.00
Couldn't load pickup availability
Oxy-Therm Collet Grommet 1/4"
$0.00
Couldn't load pickup availability
Oxy-Therm System
$0.00
Couldn't load pickup availability
Oxy-Therm Collet 1/4"
$0.00
Couldn't load pickup availability
Product Description
High resistance to heat and corrosion with high-impact and high-strength characteristics.Superior Advantages
• Extremely resistant to highly-corrosive acids
• High temperature applications up to1,600°F (871°C)
• Excellent operating characteristics
High-temperature: up to 2,100°F (1,149°C). Repairs furnace parts, refinery and chemical processing equipment.
Tensile Strength: 95,000 PSI
Hardness: 190 BHN
Elongation: 50%
Polarity: AC or DC Reverse
Typical Applications
• Severe service conditions where chemicals and acids are present
• Paper manufacturing equipment
• Food and chemical processing equipment
Usage ProcedureUse AC or DC reverse polarity. Maintain short arc and deposit stringer beads, peen to relieve stress in crack-sensitive areas. Remove slag between multiple passes. Avoid flat or concave deposits.
Technical Specifications
| Item#: | CW1071 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 3/32 " |
| Tensile Strength | 95,000 PSI |
| Elongation | 50 % |
| Base Metal | Stainless Steel |
| Hardness | 190 BHN |
| Polarity | DCRP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.5 lb |
