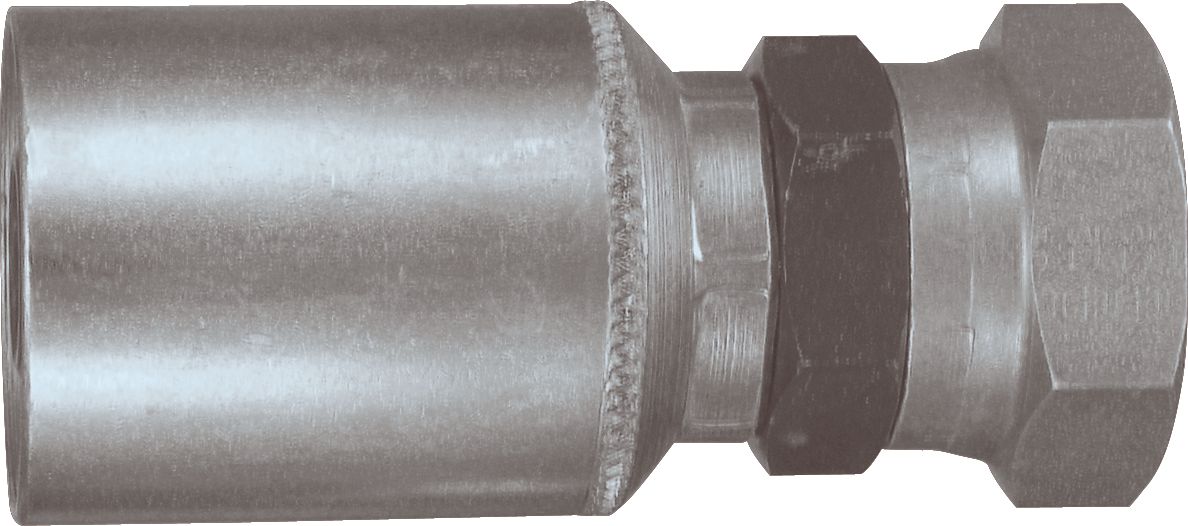

430U Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Female Swivel DIN Universal Seat, Light Pattern, 3/4" x M30-2
(Pack of
1)
SKU:63551 Item#: 63551
430U Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Female Swivel DIN Universal Seat, Light Pattern, 3/4" x M30-2
Read MoreFrequently Bought Together
Z Series/1A Series Crimp-On Hose End 1/2" x 1/2-14
$0.00
Couldn't load pickup availability
Z Series/1A Series Crimp-On Hose End 1/4" x 9/16-18
$0.00
Couldn't load pickup availability
Z Series/1A Series Crimp-On Hose End 1/4" x G-3/8-19
$0.00
Couldn't load pickup availability
GM005 PCTS Swager Pusher
$0.00
Couldn't load pickup availability
AG-Lite Rubber Water Hose Lead In 3/4" x 6'
$0.00
Couldn't load pickup availability
BluShield Single-Wire Pressure Washer Hose 3/8" X 50'
$0.00
Couldn't load pickup availability
Miniature Clamp SS 1/8 to 7/16"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-5/16 to 2-1/4"
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
11Pc Lock and Load Hammer Set
$0.00
Couldn't load pickup availability
Comfort Grip Ergonomic Jumbo Awl, 4 pc Hook & Pick Set
$0.00
Couldn't load pickup availability
10Pc SAE Mini Combination Wrench Set
$0.00
Couldn't load pickup availability
11Pc Lock and Load Hammer Set
$0.00
Couldn't load pickup availability
Comfort Grip Ergonomic Jumbo Awl, 4 pc Hook & Pick Set
$0.00
Couldn't load pickup availability
10Pc SAE Mini Combination Wrench Set
$0.00
Couldn't load pickup availability
Product Description
430U Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Female Swivel DIN Universal Seat, Light Pattern, 3/4" x M30-2Technical Specifications
| Item#: | 63551 |
|---|---|
| Manufacturer Model #: | 43012U-22C |
| Manufacturer Series Number | 430U Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Gender | Female |
| Fitting End Style | DIN Universal Seat - Light Pattern |
| Fitting End Type | Swivel |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | M30 x 2.0 |
| Weatherhead No. | 43012U-22C |
| O.D. Tube Size | 22 |
| Size | (-12)XM30x2.0 |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.95 lb |
