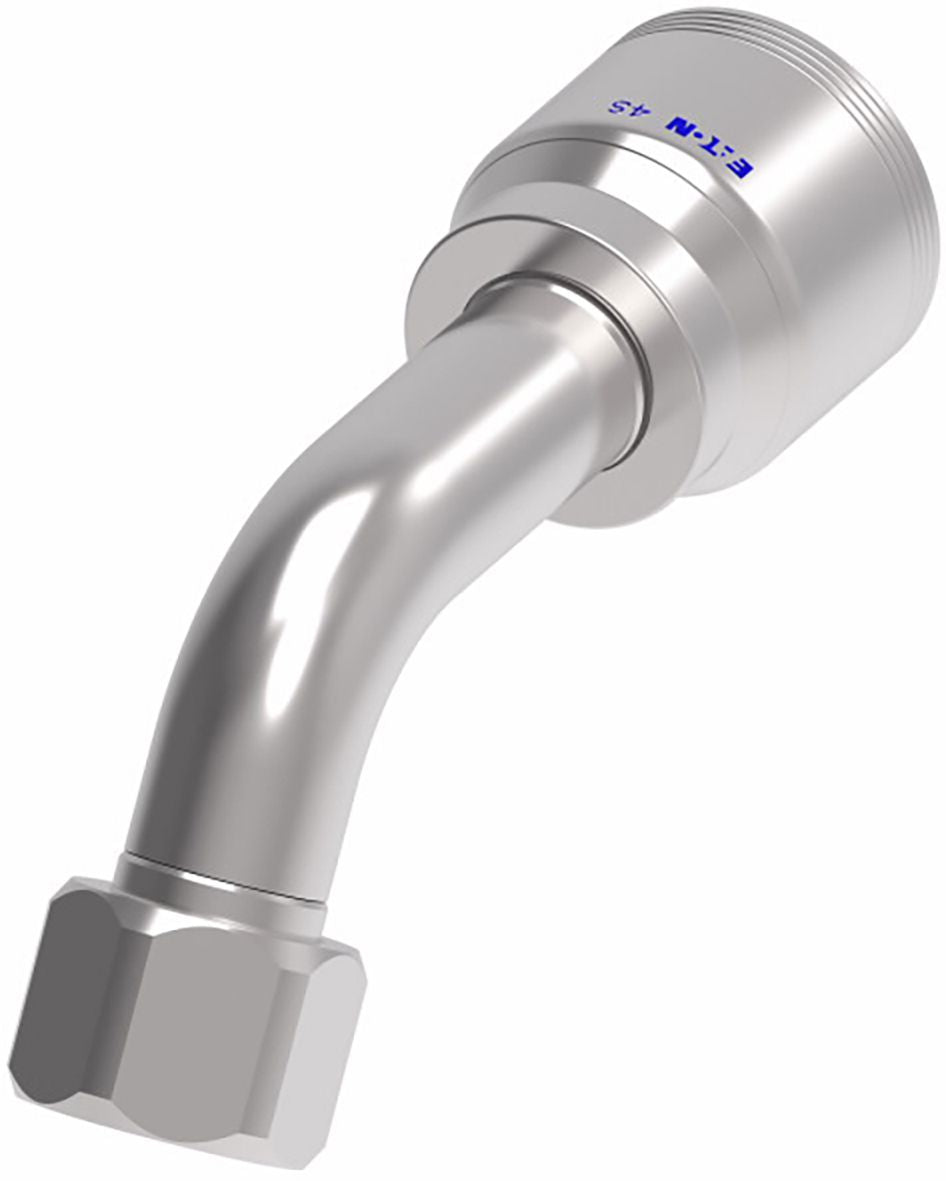

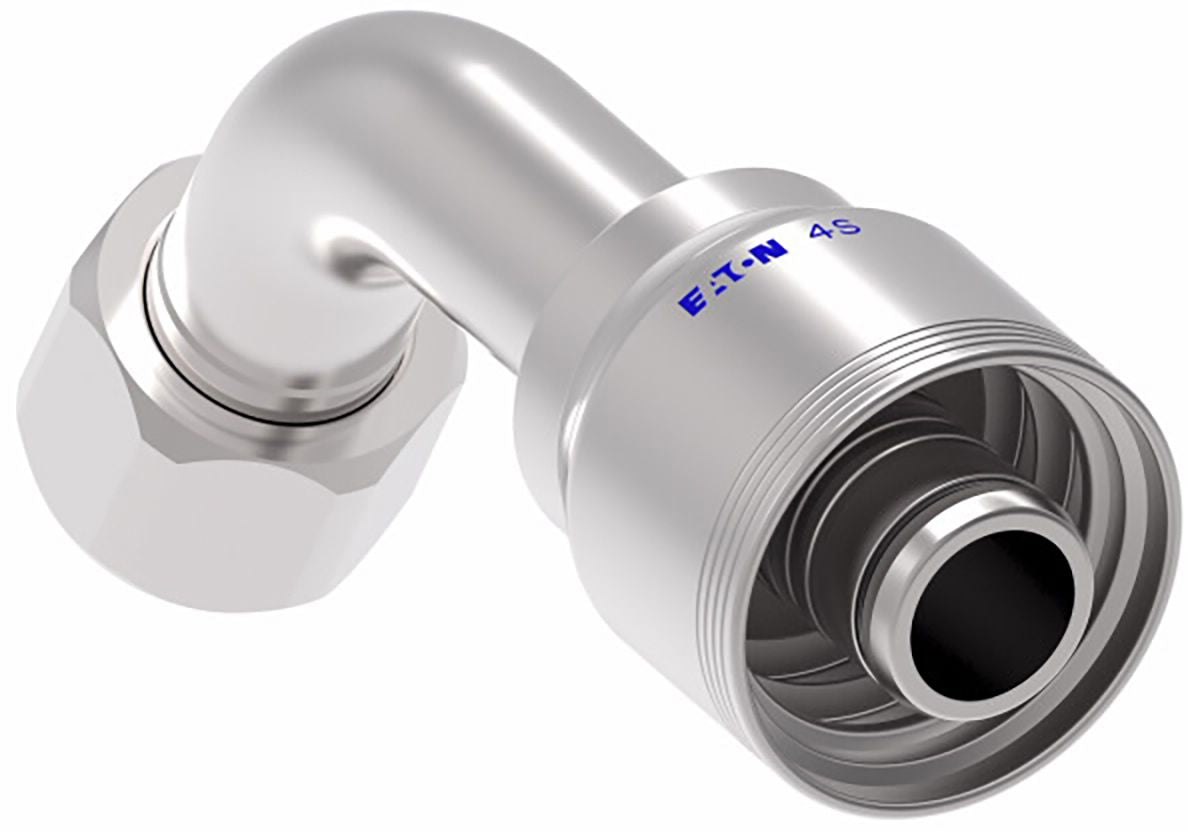

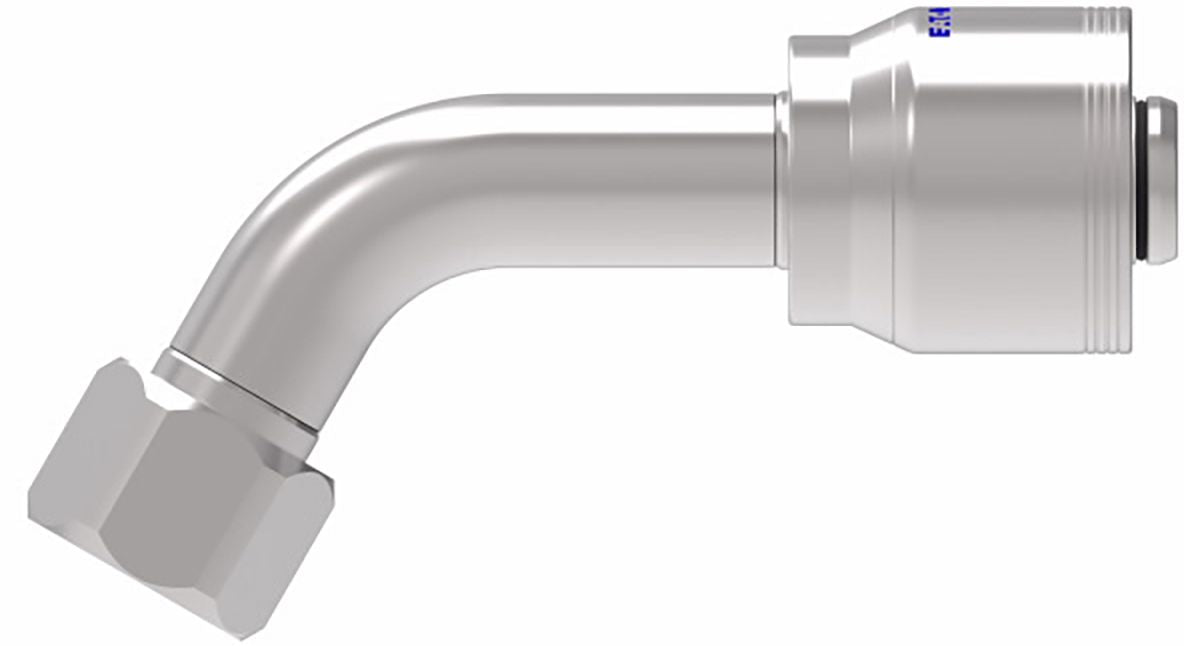

4S Series Crimp-On Elbow, Carbon Steel, Female JIC 37°, Swivel 60°, 1" (-16) x 1-5/16-12 (-16)
(Pack of
1)
SKU:1543095 Item#: 1543095
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
R12 Ferrules, Ferrule 733471315
Item#: 1644598
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, JIC 37 Deg Flare 734729245
Item#: 1644494
$0.00
Couldn't load pickup availability
Hydraulic Union 7/16-20 x 1/8-27
Item#: 12290
$0.00
Couldn't load pickup availability
C5129X4
Item#: 1173767
$0.00
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.81" x 300'
Item#: 1562971A
$0.00
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 35' air hose
Item#: 1585090
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Item#: KT15116
$0.00
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT
Item#: 1489993
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
Item#: P23453
$0.00
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
Item#: 1513544
$0.00
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
Item#: P53958
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543095 |
|---|---|
| Manufacturer Model #: | 4SA16FJG16 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1 (-16) " |
| Dash Size | -16 |
| Gender | Female |
| Fitting End Type | SAE 37 |
| Fitting Angle | 60 ° |
| Fitting Drop Length | 1.87 " |
| Fitting Dimension B (Working End) | 1-5/16-12 (-16) |
| Weatherhead No. | 4SA16FJG16 |
| SAE Code | J1176 |
| Hex Size | 1.5 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 4.12 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 1.47 lb |
