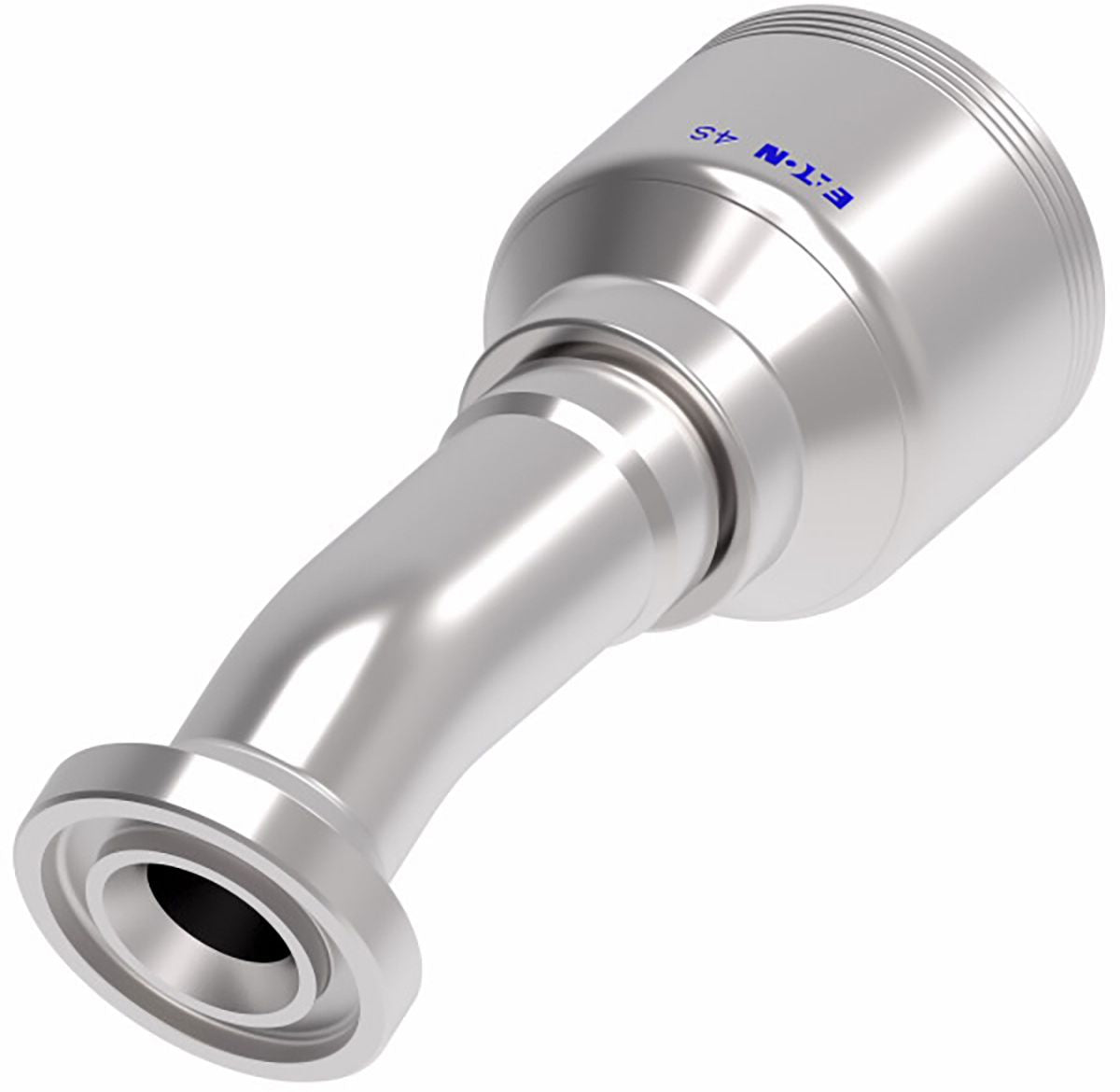

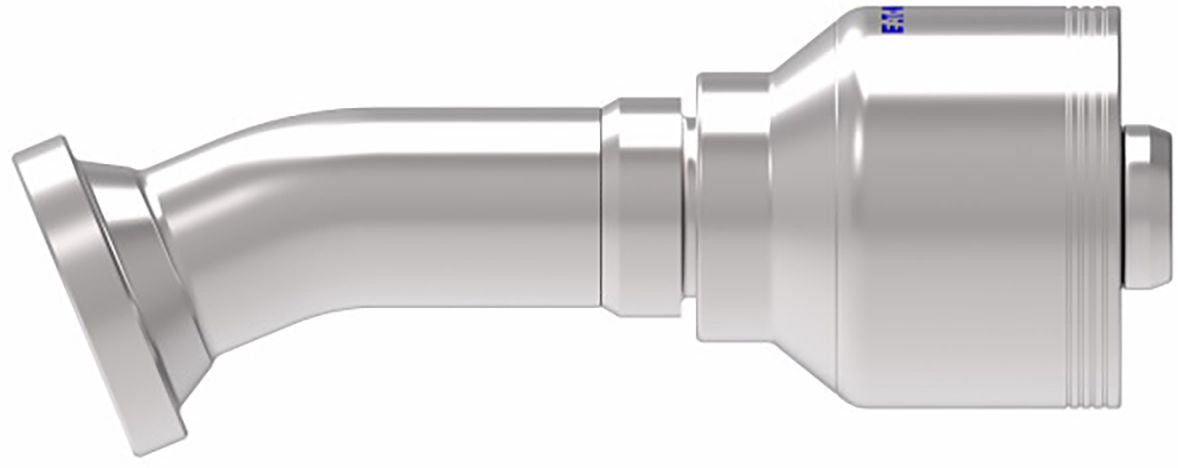

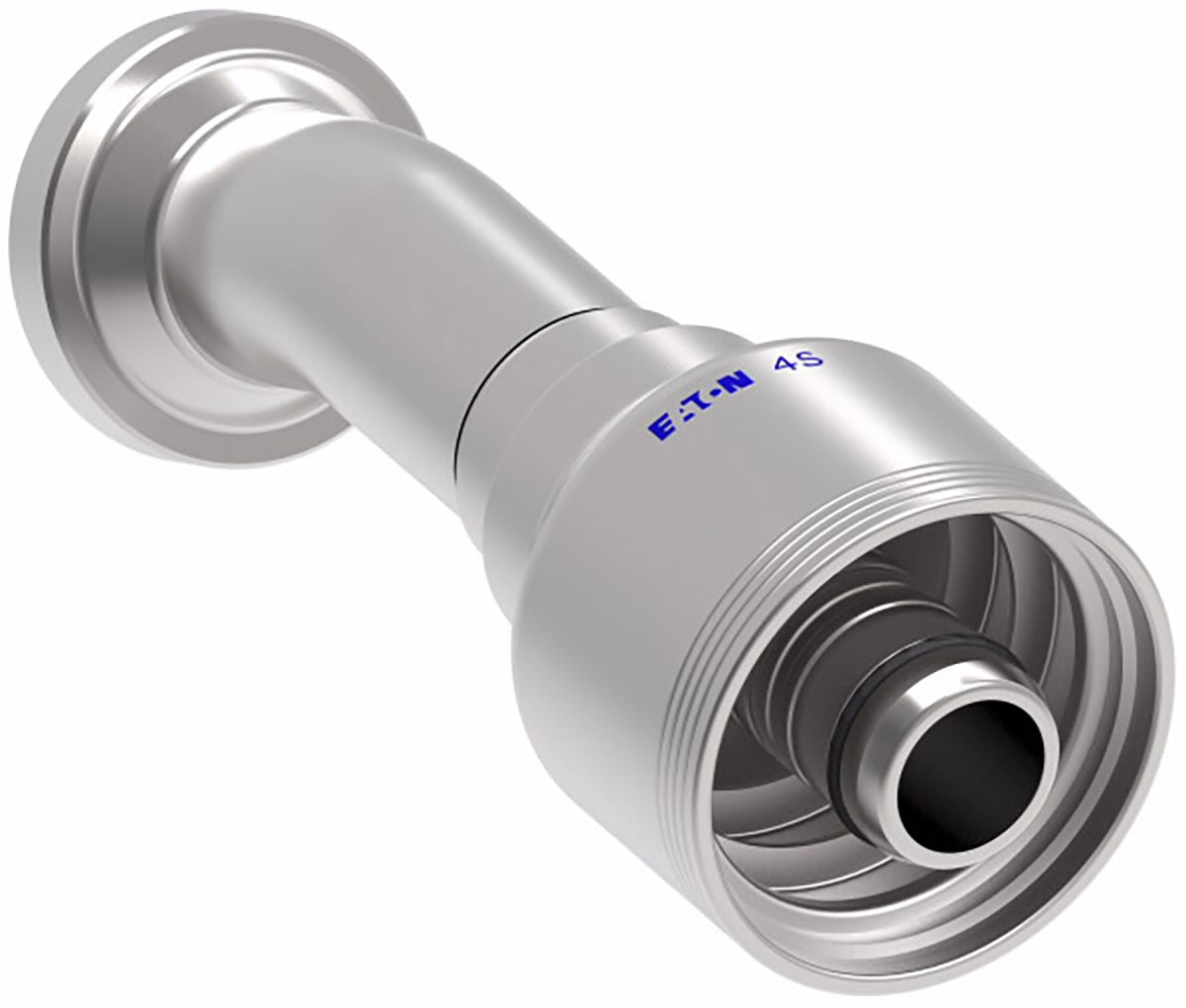

4S Series Crimp-On Elbow, Carbon Steel, Split Flange 22.5°, SAE 61, 3/4 (-12) x 1.5" (-12)
(Pack of
2)
SKU:1543103 Item#: 1543103
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
PolarSeal AC Coupler, SAE Tube O-Ring Nut 73320425
Item#: 1644084
$0.00
Couldn't load pickup availability
4T Series Crimp-On Hose End 1/4" x 1/4-18
Item#: 1692579
$0.00
Couldn't load pickup availability
4T Series Crimp-On Hose End 3/4" x 1-1/16-12
Item#: 1692578
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN 10.8 x 14.4mm
Item#: KT13015
$0.00
Couldn't load pickup availability
Hydraulic Hose Protector 4 x 2-1/2" Yellow
Item#: 62379
$0.00
Couldn't load pickup availability
Hydraulic Hose Protector 8 x 3-1/2" Black
Item#: 62378
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Item#: 54542
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"
Item#: P64102M01
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/8 to 7/8"
Item#: P28910M01
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Item#: P24252
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
Item#: P85437
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
Item#: 1579409
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543103 |
|---|---|
| Manufacturer Model #: | 4S12FLD12 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Fitting End Type | Flanged |
| Fitting Angle | 22.5 ° |
| Fitting Dimension B (Working End) | 1.50 (-12) |
| Weatherhead No. | 4S12FLD12 |
| SAE Code | J1176 |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 3.35 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 1.7 lb |
