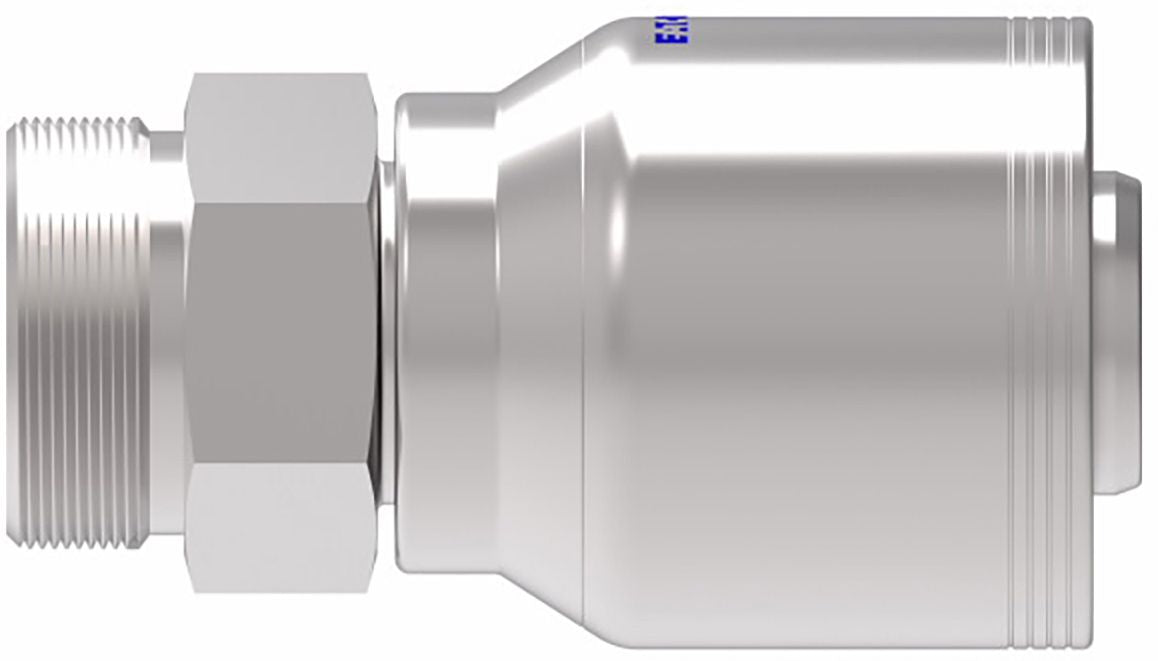

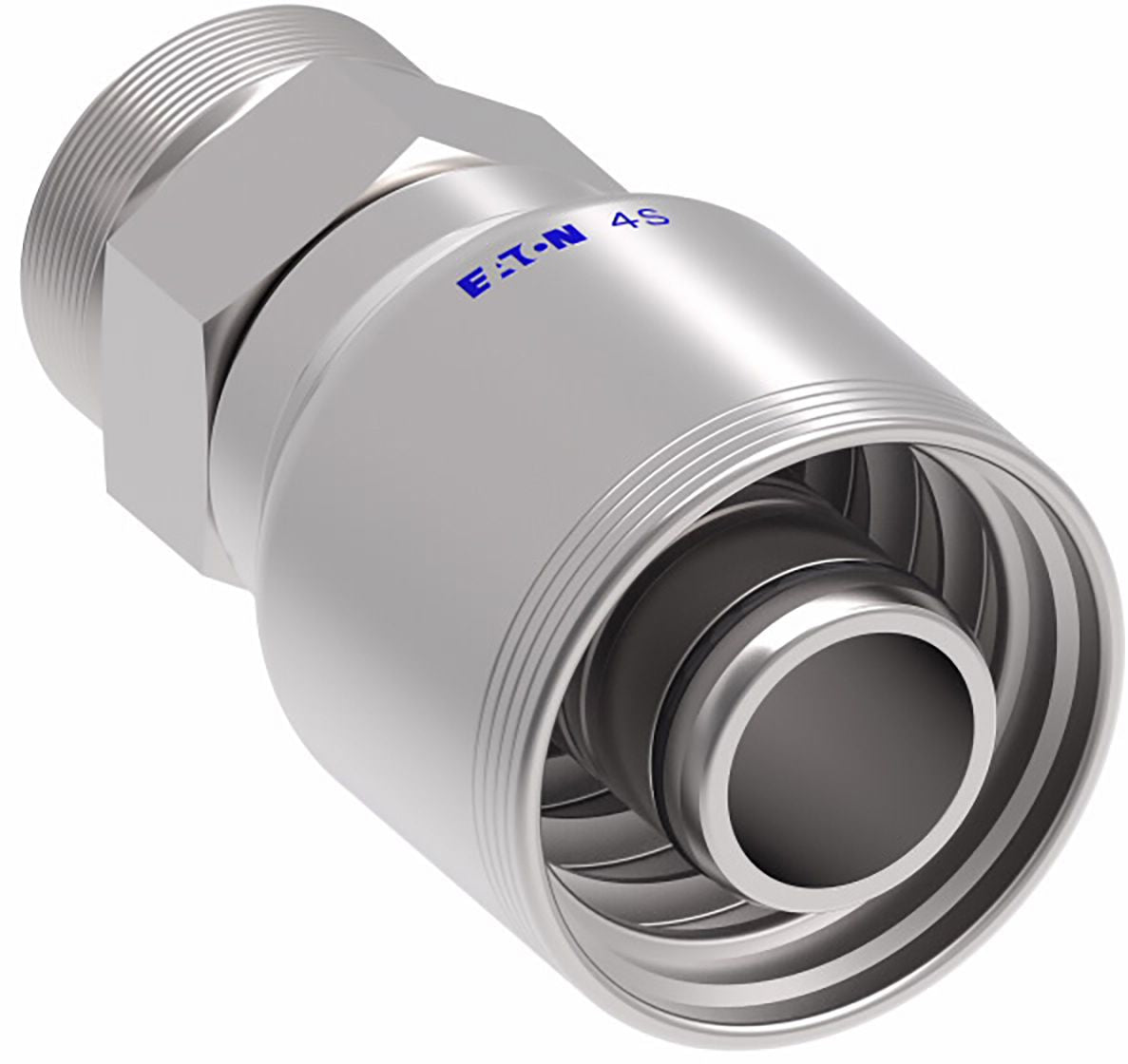

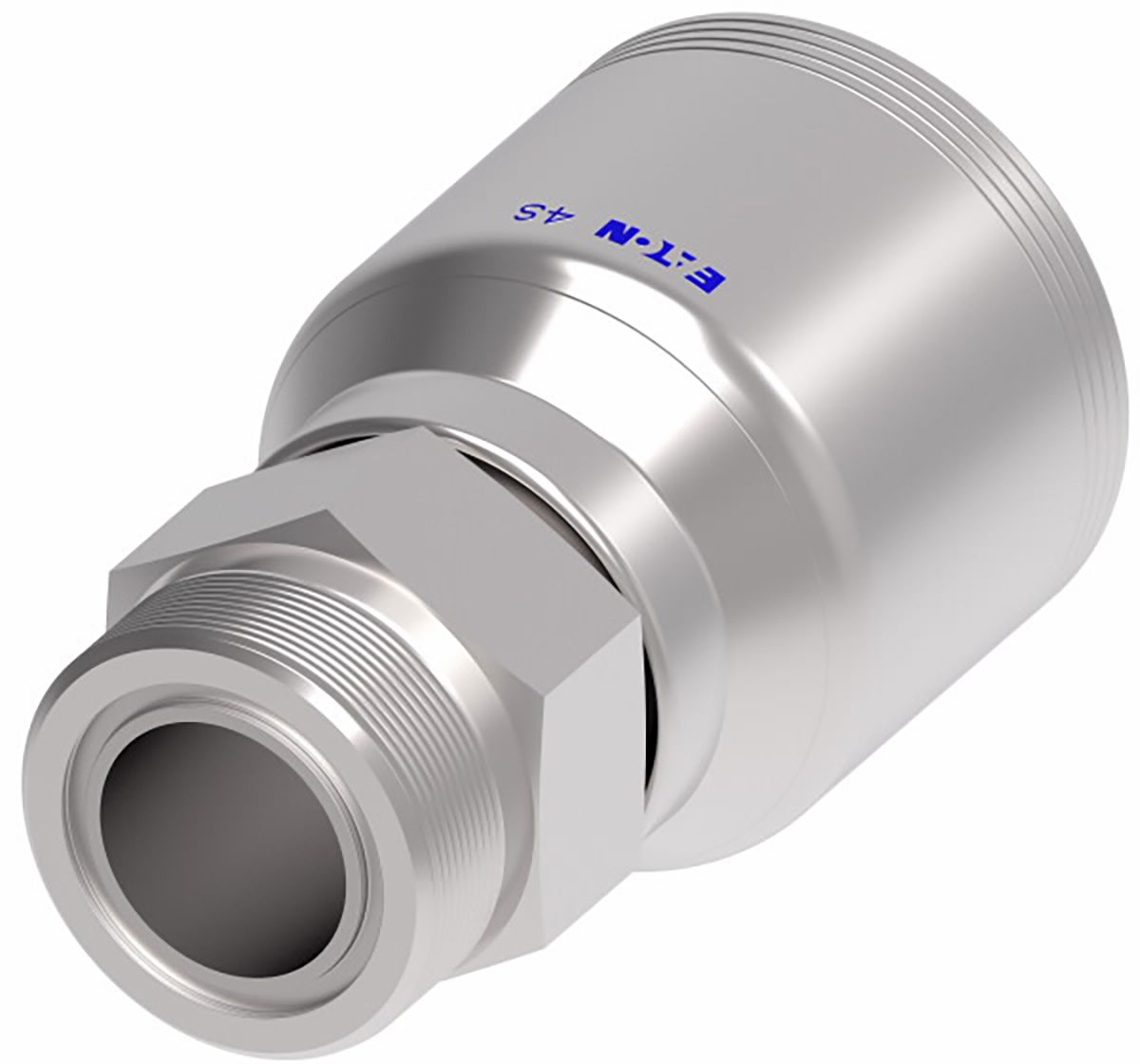

4S Series Crimp-On Hose End Fitting, Carbon Steel, Male Rigid O Ring Seal, Straight, 1-1/4" (-20) x 1-11/16-12 (-20)
(Pack of
1)
SKU:1543111 Item#: 1543111
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
GlobalSpiral Coupler, Flange - Code 61 O-Ring 734745245
Item#: 1644502
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, JIC 37 Deg Flare 734724245
Item#: 1644491
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, Flange - Code 61 O-Ring 734742245
Item#: 1644500
$0.00
Couldn't load pickup availability
Spacer Ring Black
Item#: 1555757
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 3/16 x 5/16 x 1/16"
Item#: P27030
$0.00
Couldn't load pickup availability
Industrial O-Ring Viton 1-1/2 x 1-11/16 x 3/32"
Item#: 92897
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 7/16 to 1"
Item#: P28915M01
$0.00
Couldn't load pickup availability
DOT Union Brass 1/4 x 1/4"
Item#: 57499
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
Item#: 54556
$0.00
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Item#: P62445
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
Item#: KT14285
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 7mm Hole
Item#: P85438
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543111 |
|---|---|
| Manufacturer Model #: | 4SA20MR20 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1-1/4 (-20) " |
| Dash Size | -20 |
| Gender | Male |
| Fitting End Type | Rigid |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1-11/16-12 (-20) |
| Weatherhead No. | 4SA20MR20 |
| SAE Code | J1176 |
| Hex Size | 1.75 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 2.05 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 1.84 lb |
