5/16x1-1/2 Yellow Ribbed Plastic Wall Anchor
(Pack of
100)
SKU:DY09580117 Item#: DY09580117
• Works in concrete, brick, masonry or drywall
• Ribbed body expands and “bites in'' to the gripping surface to give a very dependable fastening application
• Safe for use in blind applications where electrical wiring might be present

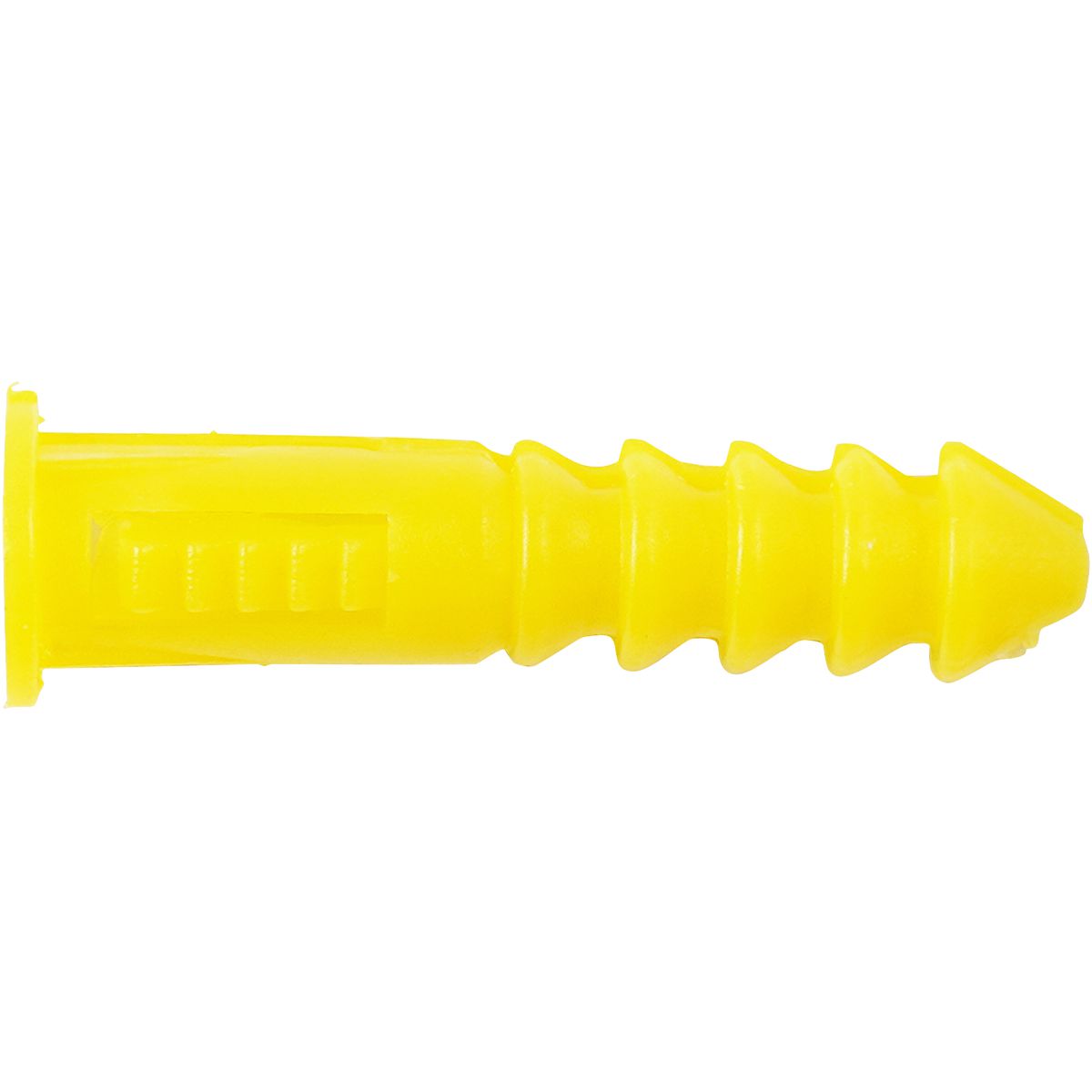

• Yellow plastic anchor has a ribbed body plus gripping tabs on each side of the neck
• Minimum material thickness: 3/8”
Note: Strengths are dependent on size of anchor and strength of material and will vary depending on application. Strengths are higher on thicker materials.
Frequently Bought Together
Conical Screw Anchor Kit Plastic 201Pcs
$0.00
Couldn't load pickup availability
Drill 'N Drive Masonry Anchor Kit 102Pcs
$0.00
Couldn't load pickup availability
Self-Drilling Wallboard Mini Anchor Kit 51Pcs
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 5/32"
$0.00
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M10-1.25
$0.00
Couldn't load pickup availability
Hex Nut Grade 8 Steel M10-1.5
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
$0.00
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
$0.00
Couldn't load pickup availability
Wing-Type Toggle Bolt Anchor Steel #6-32 x 3"
$0.00
Couldn't load pickup availability
Toggle Bolt Anchor Wing #6-32
$0.00
Couldn't load pickup availability
Wing-Type Toggle Bolt Anchor Steel 3/8-16 x 6"
$0.00
Couldn't load pickup availability
Product Description
• Works in concrete, brick, masonry or drywall• Ribbed body expands and “bites in'' to the gripping surface to give a very dependable fastening application
• Safe for use in blind applications where electrical wiring might be present
• Yellow plastic anchor has a ribbed body plus gripping tabs on each side of the neck
• Minimum material thickness: 3/8”
Note: Strengths are dependent on size of anchor and strength of material and will vary depending on application. Strengths are higher on thicker materials.
Technical Specifications
| Item#: | DY09580117 |
|---|---|
| Length | 1-1/2 " |
| Type | Plastic Screw Anchor |
| Size | 5/16 x 1-1/2 |
| Diameter | 5/16 " |
| Material | Plastic |
| Drill Size | 5/16 " |
| Grip Range | 3/8 and up " |
| Color | Yellow |
| Minimum Wall Thickness | 3/8 " |
| Screw Size | #12, #14 or #16 |
| Tensile Pull-Out Strength | 50 - 70 lb |
| Shear Proof Test Load | 75 - 150 lb |
| UNSPSC #: | 31162103 |
| TAA Compliant: | Yes |
| Weight: | 0.11 lb |
