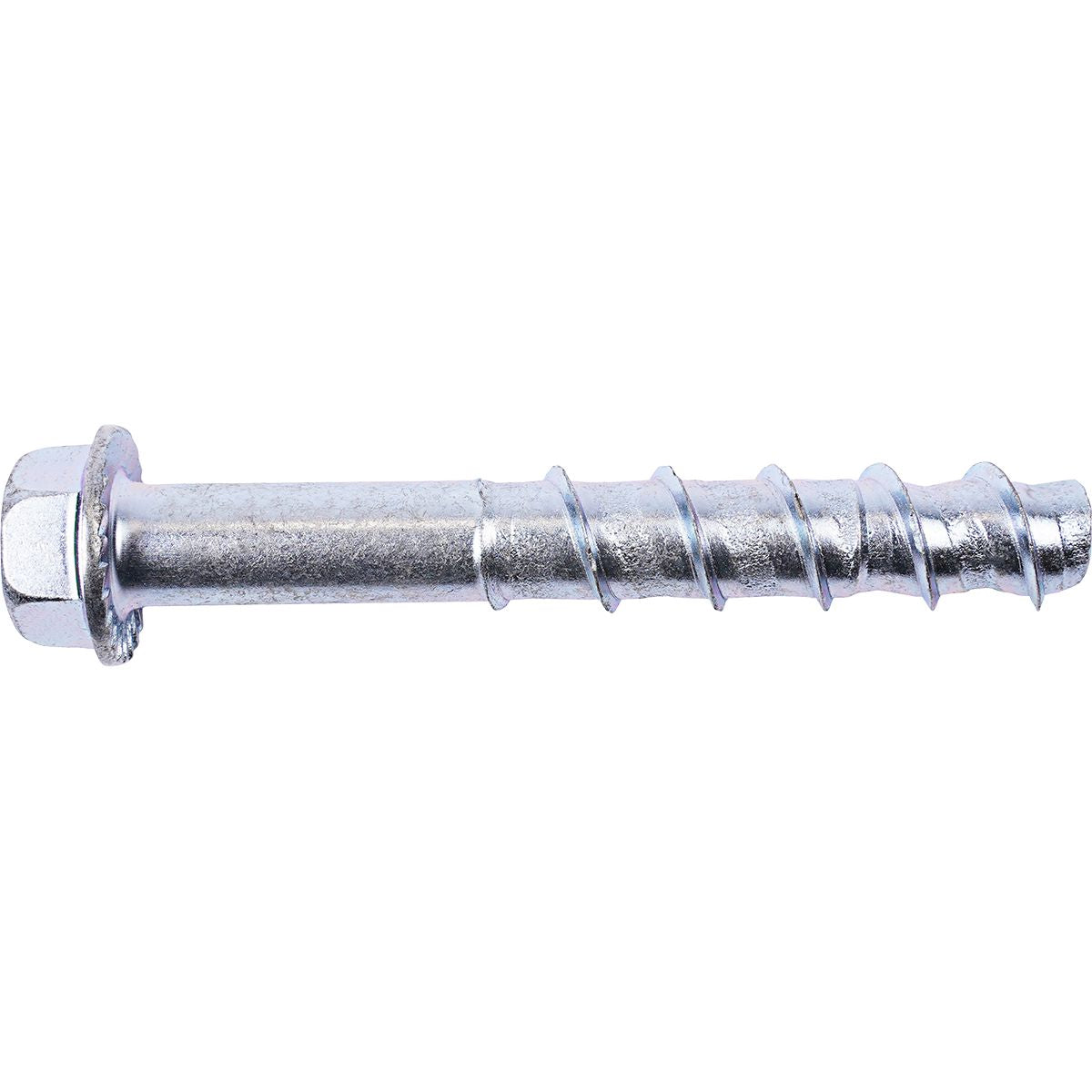

5/8x4 Mas-Tap HD Hex Head Concrete Screw Anchor
(Pack of
5)
SKU:DY09993153 Item#: DY09993153
• One-piece heavy-duty anchor with sharp aggressive concrete cutting threads
• Easy to install and can be removed
• Serrated teeth under the head grip to installed fixtures
• Steel thread design provides a keyed engagement and allows for reduced spacing and edge distances
• Can be used in a variety of solid masonry materials such as concrete, brick, stone, and block
• Works with standard properly sized masonry drill bits, no special bit required
• Zinc-plated case hardened low carbon steel
1. Check specs to determine proper anchor.
2. Drill hole to proper depth. Then remove dust and debris.
3. Place anchor through fixture and into hole and begin tightening.
4. Tighten until anchor head is tightly seated against fixture.
Frequently Bought Together
Conical Screw Anchor Kit Plastic 301Pcs
$0.00
Couldn't load pickup availability
Conical Screw Anchor Kit Plastic 401Pcs
$0.00
Couldn't load pickup availability
Masonry Anchor Assortment 700Pcs
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 16mm
$0.00
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M6-1
$0.00
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 3/16"
$0.00
Couldn't load pickup availability
5/8x3 Mas-Tap Hd Anchor
$0.00
Couldn't load pickup availability
Masonry Anchor Hex Washer Head Steel 1/4 x 1-1/4"
$0.00
Couldn't load pickup availability
Masonry Anchor Phillips Head #14-10 x 3-1/4"
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
$0.00
Couldn't load pickup availability
Product Description
• One-piece heavy-duty anchor with sharp aggressive concrete cutting threads• Easy to install and can be removed
• Serrated teeth under the head grip to installed fixtures
• Steel thread design provides a keyed engagement and allows for reduced spacing and edge distances
• Can be used in a variety of solid masonry materials such as concrete, brick, stone, and block
• Works with standard properly sized masonry drill bits, no special bit required
• Zinc-plated case hardened low carbon steel
1. Check specs to determine proper anchor.
2. Drill hole to proper depth. Then remove dust and debris.
3. Place anchor through fixture and into hole and begin tightening.
4. Tighten until anchor head is tightly seated against fixture.
Technical Specifications
| Item#: | DY09993153 |
|---|---|
| Diameter | 5/8 " |
| Length | 4 " |
| Type | Screw Anchor |
| Material | Carbon Steel |
| Minimum Embedment | 2-1/2 " |
| Finish | Zinc |
| Drive | 15/16 " |
| Drill Size | 5/8 " |
| Head Style | Hex |
| Drive Style | 15/16 " |
| Quantity Per Package | 5.0000 |
| Minimum Hole Depth | 2-7/8 " |
| UNSPSC #: | 31162104 |
| TAA Compliant: | Yes |
| Weight: | 0.01 lb |
