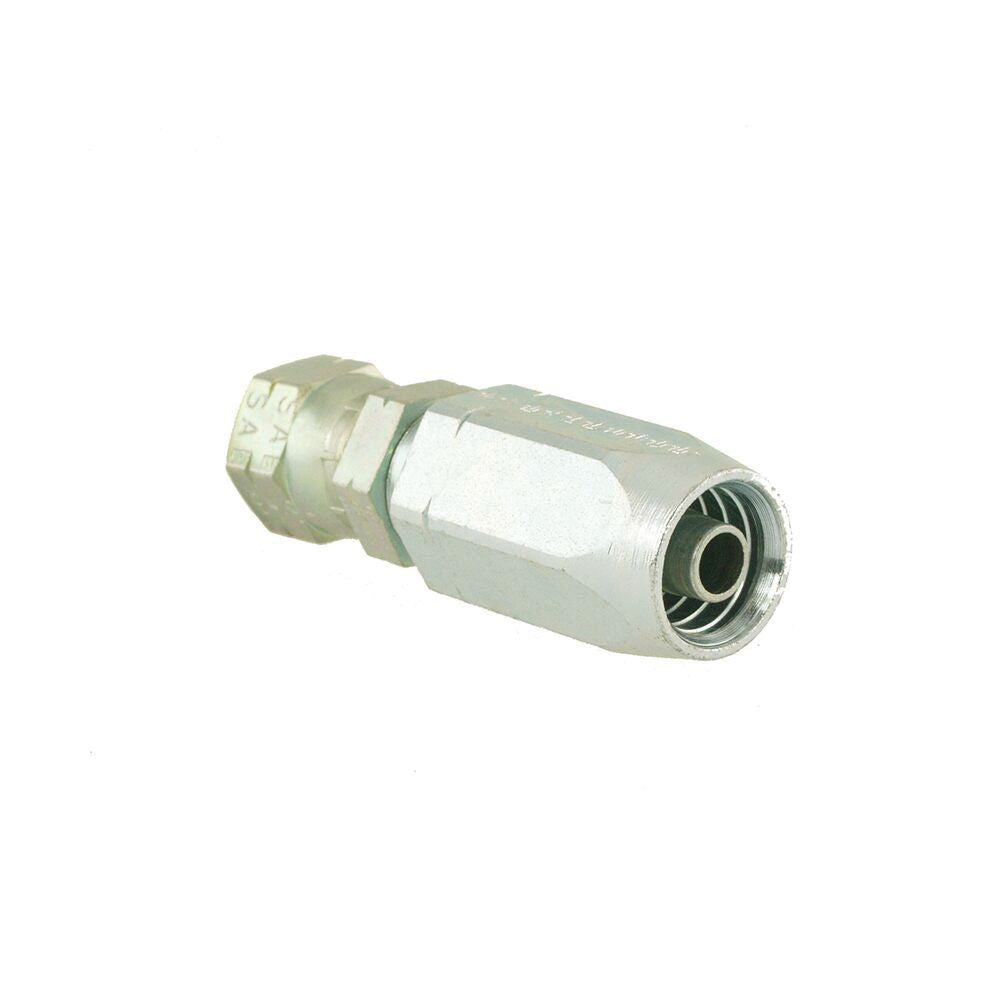

51 Series Hydraulic Field Attachable Hose End, Straight, Carbon Steel, Female Swivel JIC 37° Flare, 1/4 (-4) x 9/16-18 (-6)
(Pack of
2)
SKU:95331 Item#: 95331
For use with Medium Pressure, Non-Conductive Hose 518C (Nos. 95346, 95347, 95348 and Twin-Line Nos. PL95349B and PL95350B), and Medium Pressure Thermoplastic Hose (Nos. 88611, 88612, 88614, 88615 and Twin-Line No. PL90500B).
Frequently Bought Together
Crimp-On Hose Coupling 1/2" x 1/2-14
Item#: 88314KH
$0.00
Couldn't load pickup availability
FF12139
Item#: 1182613
$0.00
Couldn't load pickup availability
08Z-BC48/1A8MCA8 Hose End (perm) 1S/1R 45 D Male STC
Item#: 1184318
$0.00
Couldn't load pickup availability
PolarSeal AC Coupler, Flareless Tube 733200335
Item#: 1641246
$0.00
Couldn't load pickup availability
Metric Female Flareless Sleeve 733204215
Item#: 1647577
$0.00
Couldn't load pickup availability
Industrial O-Ring Viton 5-1/8 x 5-3/8 x 1/8"
Item#: 57338
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
Item#: KT15123
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Item#: KT11948
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-9/16 to 2-1/2"
Item#: P28925M01
$0.00
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
Item#: P15600
$0.00
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
Item#: P85262
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
Item#: 1468633
$0.00
Couldn't load pickup availability
Product Description
For use with Medium Pressure, Non-Conductive Hose 518C (Nos. 95346, 95347, 95348 and Twin-Line Nos. PL95349B and PL95350B), and Medium Pressure Thermoplastic Hose (Nos. 88611, 88612, 88614, 88615 and Twin-Line No. PL90500B).Technical Specifications
| Item#: | 95331 |
|---|---|
| Manufacturer Model #: | 20651-6-4 |
| Manufacturer Series Number | 51 Series |
| Attachment Method | Field Attachable |
| Fitting Dimension A (Hose) | 1/4 (-4) " |
| Dash Size | -4 |
| Gender | Female |
| Fitting End Style | JIC 37 Degree Flare |
| Fitting End Type | Swivel |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 9/16-18 (-6) |
| O.D. Tube Size | 3/8 |
| Size | (-4)X(-6) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.31 lb |
