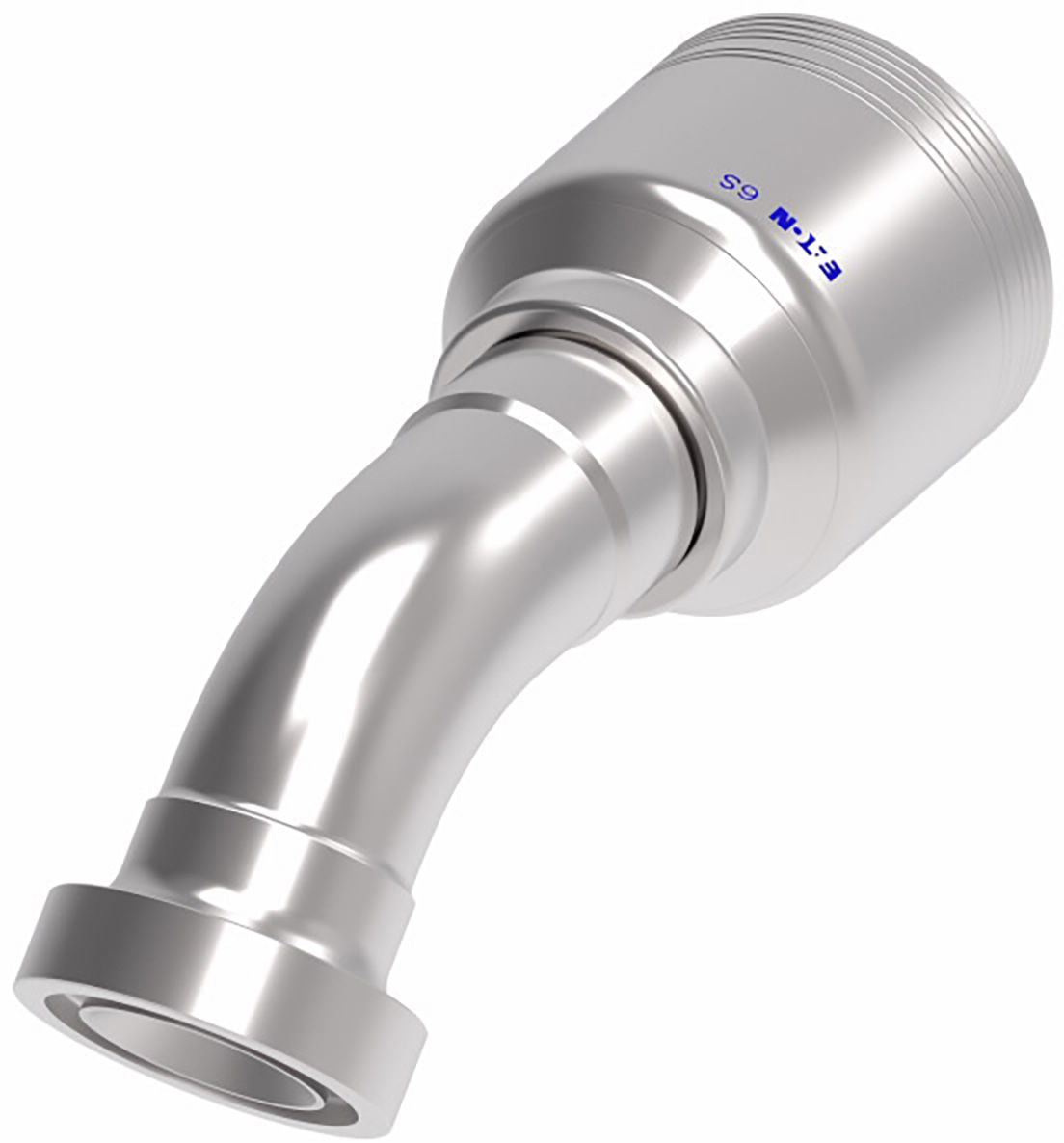

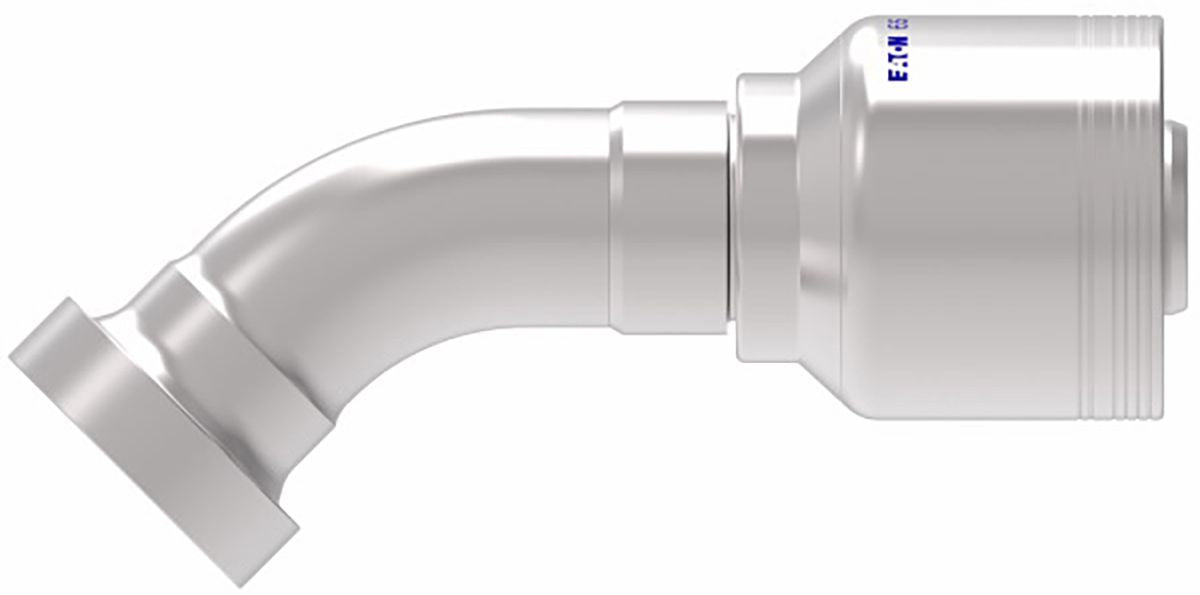

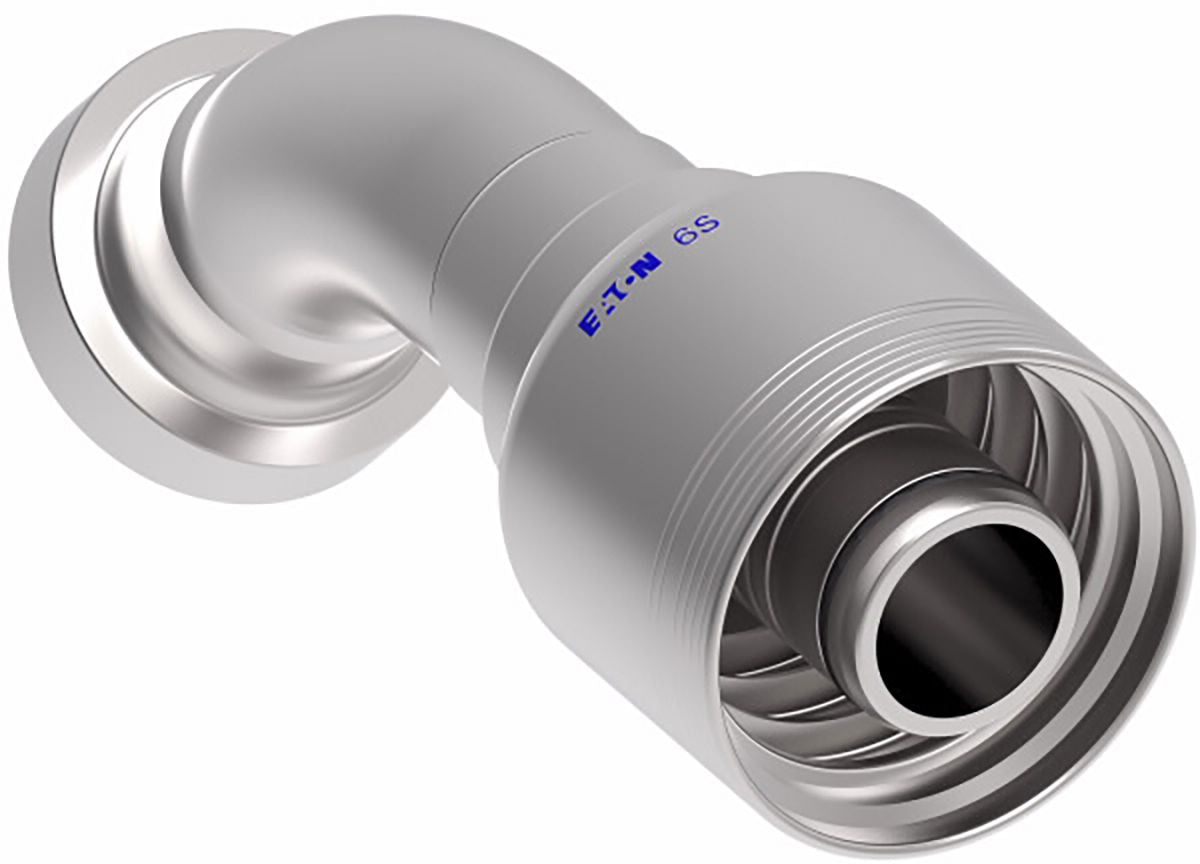

6S Series Crimp-On Elbow, Carbon Steel, Cat Flange 45°, 1-1/4 (-20) x 2.13" (-20)
(Pack of
1)
SKU:1543012 Item#: 1543012
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
4T Series Crimp-On Hose End 1/4" x 7/16-20
Item#: 1692580
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, Flange - Code 61 O-Ring 734745245
Item#: 1644502
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, JIC 37 Deg Flare 734724245
Item#: 1644491
$0.00
Couldn't load pickup availability
Spacer Ring Brown/White
Item#: 1555801
$0.00
Couldn't load pickup availability
Spacer Ring Red/Blue
Item#: 1555804
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN 14.8 x 19.6mm
Item#: KT13019
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
Item#: 57504
$0.00
Couldn't load pickup availability
Hose Clamp 304 SS 9/16 to 1-1/16"
Item#: 86725
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Item#: KT11951
$0.00
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Item#: P85316
$0.00
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
Item#: KT13321
$0.00
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
Item#: KT12848
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543012 |
|---|---|
| Manufacturer Model #: | 6S20CTA20 |
| Manufacturer Series Number | 6S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1-1/4 (-20) " |
| Dash Size | -20 |
| Fitting End Type | Flanged |
| Fitting Angle | 45 ° |
| Fitting Dimension B (Working End) | 2.13 (-20) |
| Weatherhead No. | 6S20CTA20 |
| SAE Code | J1176 |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 4.5 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 2.5 lb |
