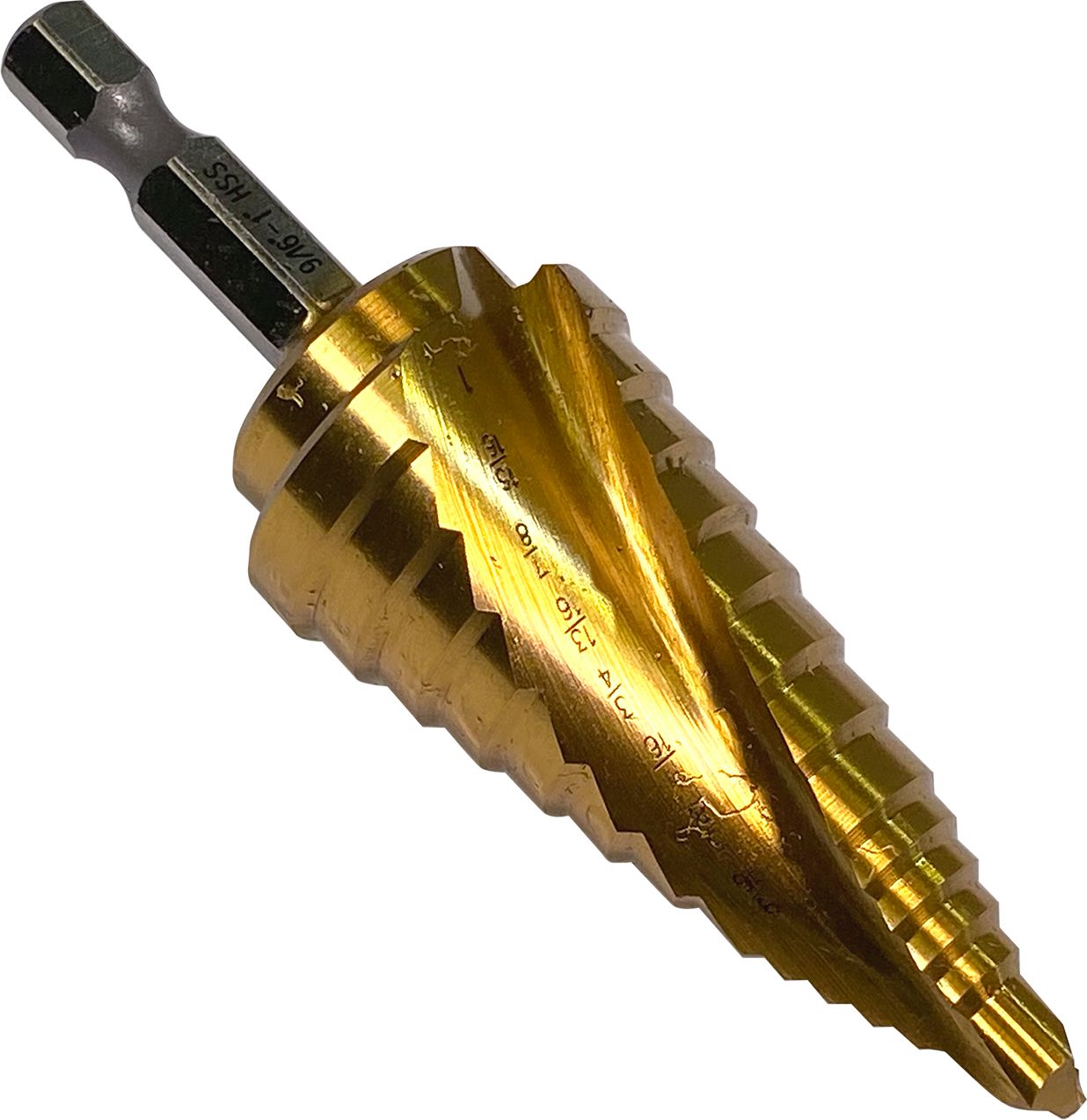

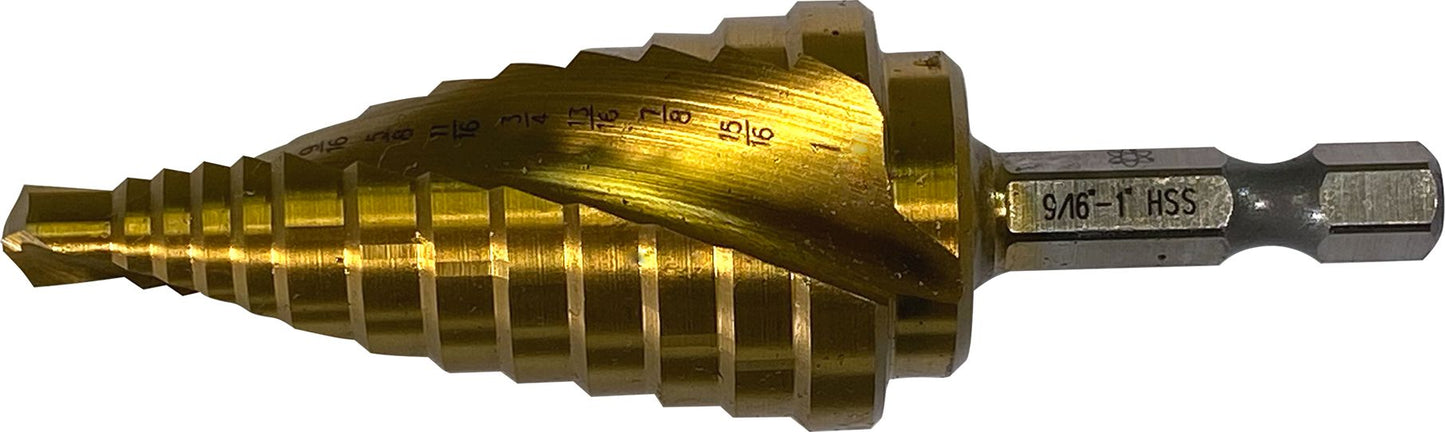

9/16" - 1", Cryonitride Step Drill, 8 Hole - 1/4" Shank
(Pack of
1)
SKU:DY80270050 Item#: DY80270050
Cryogenically treated, Nitride coated, 1/4" hex shank, gold step bit for cutting steel plate, stainless steel, sheet metal and tubing. The tip of the bit is designed with a “walk-no-more” self-starting split tip, dual flutes for smooth cutting and a 1/4" hex shank for use in quick change drivers.
• Versatile Cutting – The CryoNitride™ Gold step bit is designed to cut through steel plate, stainless steel, sheet metals of all types and metal tubing
• All five bits offer up to 48 different hole diameters
• Quick Change Driver – 1/4" hex shank provides for quick change in today’s quick change driver power tools
• Split Point Tip – Provides self- starting tip to minimize bit walking at start up
• Two Flute Design – Drilling is balanced, creating cleaner symmetrical holes
• Hi-Viz Step Measurements – Step sizes are laser marked on the tool, gold background provides high visibility of step sizes
• High Performance/Long Life Coating – Gold CryoNitride™ coating extends the life of the tool and provides additional lubricity of enhanced cutting performance
• Cryophase™ Treatment – The treatment enhances tool flexibility, provides longer tool life, and higher heat resistance
Specifications
• Tip Design: Split Point
• Hardness: 63-66Rc
• Temperature Resistance: 1112°F
• Material: High Speed Steel
• Coating: CryoNitride
• Coating Hardness: 63-66Rc
• Cryophase™: Thermal cycling cryogenic treatment
Applications
• Steel, stainless steel and aluminum plate up to 1/8" thick
• Sheet metal and sheet copper up to 1/8" thick
• Wood and laminates
• Fiberglass
• Metal tubing
• Aluminum
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Small General Purpose Bimetal Hole Saw Kit 9Pcs
$0.00
Couldn't load pickup availability
Reinforced Mini Cut-Off Wheel 3"
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit Cobalt 5/16" (M8)
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit Cobalt 5/16" (M8)
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit Cobalt 3/8" (M10)
$0.00
Couldn't load pickup availability
Cutting Tool Bundle with Spot Weld Drill Bits
$0.00
Couldn't load pickup availability
Quick Seal 2000 Sprayable Seam Sealer Gray
$0.00
Couldn't load pickup availability
Quick Seal 2000 Sprayable Seam Sealer Beige
$0.00
Couldn't load pickup availability
Adhesive-Back Shim Stock 5/16 x 1" x 30'
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
$0.00
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
$0.00
Couldn't load pickup availability
1/8" - 1/2 " Cryonitride Spiral Fluted Step Drill - 1/4" Shank
$0.00
Couldn't load pickup availability
Double Flute Step Drill Bit 3/16 to 7/8"
$0.00
Couldn't load pickup availability
Double Flute Step Drill Bit 3/16 to 1/2"
$0.00
Couldn't load pickup availability
1/4" Cordless Impact Hex Driver Charging Bundle
$0.00
Couldn't load pickup availability
8" Dual Jaw Adj and Pipe Wrench
$0.00
Couldn't load pickup availability
10Pc SAE Mini Combination Wrench Set
$0.00
Couldn't load pickup availability
Product Description
Cryogenically treated, Nitride coated, 1/4" hex shank, gold step bit for cutting steel plate, stainless steel, sheet metal and tubing. The tip of the bit is designed with a “walk-no-more” self-starting split tip, dual flutes for smooth cutting and a 1/4" hex shank for use in quick change drivers.• Versatile Cutting – The CryoNitride™ Gold step bit is designed to cut through steel plate, stainless steel, sheet metals of all types and metal tubing
• All five bits offer up to 48 different hole diameters
• Quick Change Driver – 1/4" hex shank provides for quick change in today’s quick change driver power tools
• Split Point Tip – Provides self- starting tip to minimize bit walking at start up
• Two Flute Design – Drilling is balanced, creating cleaner symmetrical holes
• Hi-Viz Step Measurements – Step sizes are laser marked on the tool, gold background provides high visibility of step sizes
• High Performance/Long Life Coating – Gold CryoNitride™ coating extends the life of the tool and provides additional lubricity of enhanced cutting performance
• Cryophase™ Treatment – The treatment enhances tool flexibility, provides longer tool life, and higher heat resistance
Specifications
• Tip Design: Split Point
• Hardness: 63-66Rc
• Temperature Resistance: 1112°F
• Material: High Speed Steel
• Coating: CryoNitride
• Coating Hardness: 63-66Rc
• Cryophase™: Thermal cycling cryogenic treatment
Applications
• Steel, stainless steel and aluminum plate up to 1/8" thick
• Sheet metal and sheet copper up to 1/8" thick
• Wood and laminates
• Fiberglass
• Metal tubing
• Aluminum
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | DY80270050 |
|---|---|
| Type | Multi-Hole Step Drill Bits |
| Material | High Speed Steel |
| Diameter | 9/16 - 1 " |
| Increments | 1/16 " |
| Shank Size | 1/4 " |
| Number of Hole Sizes | 8 |
| UNSPSC #: | 23241640 |
| TAA Compliant: | No |
| Weight: | 0.235 lb |
