Blind Rivet Nut Insert Riv-Float Short #10-24
(Pack of
5.0)
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used
• Allows for tolerance stack-up in joint design and misalignment during service of the joint

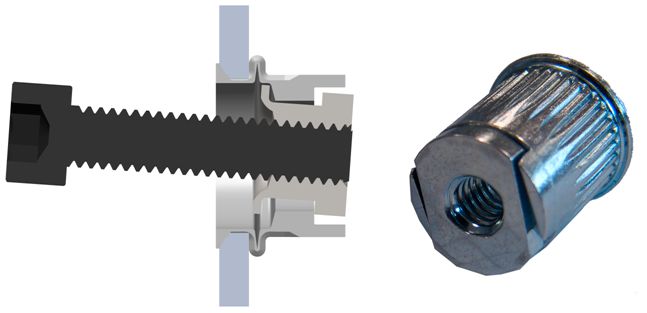

• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Frequently Bought Together
Serrated Hex Flange Nut Alloy Steel M10-1.25
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 5/32"
Couldn't load pickup availability
Sheet Metal Screw Phillips Truss Head #14 x 3/4"
Couldn't load pickup availability
Blind Rivet Nut Insert Riv-Float 1/4-20
Couldn't load pickup availability
Blind Rivet Nut Insert Riv-Float M6-1
Couldn't load pickup availability
Blind Rivet Nut Insert Flat Head M6-1
Couldn't load pickup availability
Tru-Flate Safety Push-Button Safety Coupler 3/8" Body x 1/4" MNPT
Couldn't load pickup availability
Tru-Flate Safety Push-Button Safety Coupler 3/8" Body x 1/2" FNPT
Couldn't load pickup availability
Tru-Flate Safety Push-Button Safety Coupler 1/4" Body x 1/2" MNPT
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
Couldn't load pickup availability
Replacement Mandrel for FLEX-5 Tool 8-32
Couldn't load pickup availability
Replacement Mandrel for LHF 202 Tool 8-32
Couldn't load pickup availability
Replacement Head Set for SSG Tool 10-24
Couldn't load pickup availability
Product Description
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used• Allows for tolerance stack-up in joint design and misalignment during service of the joint
• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Technical Specifications
| Item#: | 1405702 |
|---|---|
| Diameter | #10 |
| Grip Range | .020 - .100 " |
| Length | 0.435 " |
| Thread Pitch | 24 |
| Hole Size | 0.433 |
| Body Type | Knurled |
| Head Style | Large Flange |
| Style | Riv-Float Short |
| Material | Steel |
| Finish | Bright Zinc |
| Size | #10-24 |
| Type | Blind Rivet Nut |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
