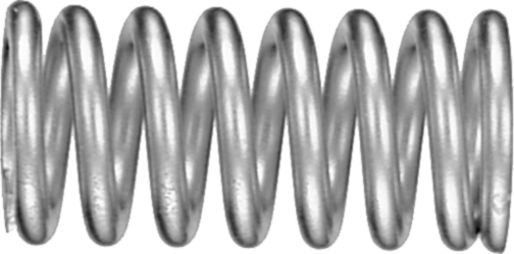

Compression Spring 1/2 x 1-5/8"
(Pack of
2.0)
• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Frequently Bought Together
Friction Tape 3/4" x 60'
Couldn't load pickup availability
Premium Polypropylene Packaging Tape 2" x 55 Yards
Couldn't load pickup availability
Universal Sorbent Pad
Couldn't load pickup availability
Glossy Back Paper Floor Mat, 17" x 22"
Couldn't load pickup availability
BK1 Bearkat Safety Glasses
Couldn't load pickup availability
Automotive Trim Lifting Masking Tape 10mm x 10m
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Couldn't load pickup availability
Marker Pen White
Couldn't load pickup availability
Adhesive-Back Shim Stock 5/32 x 1/4" x 30'
Couldn't load pickup availability
High-Strength Double Side Molding Tape 1/4" X 50'
Couldn't load pickup availability
Compression Spring 3/16 x 1-1/4"
Couldn't load pickup availability
Compression Spring 5/32 x 1-3/8"
Couldn't load pickup availability
Compression and Extension Spring Kit 322Pcs
Couldn't load pickup availability
Product Description
• The most common spring type• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Technical Specifications
| Item#: | 89614 |
|---|---|
| Type | Compression Spring |
| O.D. | 25/32 " |
| Length | 1-5/8 " |
| I.D. | 1/2 " |
| Wire Diameter | 0.120 " |
| Wire Gauge | 11 |
| Number of Coils | 8 |
| Rate | 171 lb./in. |
| Maximum Work Load | 90 lb |
| Material | Steel |
| UNSPSC #: | 31161904 |
| TAA Compliant: | Yes |
| Weight: | 0.12 lb |
Product Restrictions
