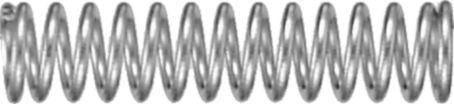

Compression Spring 1/4 x 1-1/2"
(Pack of
10.0)
• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Frequently Bought Together
High-Strength Double Side Molding Tape 1/4" x 50'
Couldn't load pickup availability
Anti-Rattle/Squeak BRS Tape 30mm x 10'
Couldn't load pickup availability
Marker Pen Pink
Couldn't load pickup availability
Paint Marker Red
Couldn't load pickup availability
High-Strength Double Side Molding Tape 1/4" x 50'
Couldn't load pickup availability
Prem Black Nitrile Glvs, Lrg
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
Couldn't load pickup availability
Marker Pen Pink
Couldn't load pickup availability
Adhesive-Back Shim Stock 1/8 x 5/8" x 50'
Couldn't load pickup availability
Butyl Windshield Tape 1/4" x 15'
Couldn't load pickup availability
Compression Spring 5/16 x 1-1/2"
Couldn't load pickup availability
Compression Spring 11/16 x 2-3/4"
Couldn't load pickup availability
Compression Spring 3/4 x 3-1/2"
Couldn't load pickup availability
Product Description
• The most common spring type• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Technical Specifications
| Item#: | 89568 |
|---|---|
| Type | Compression Spring |
| O.D. | 11/32 " |
| Length | 1-1/2 " |
| I.D. | 1/4 " |
| Wire Diameter | 0.048 " |
| Wire Gauge | 18 |
| Number of Coils | 14 |
| Rate | 23 lb./in. |
| Maximum Work Load | 16 lb |
| Material | Steel |
| UNSPSC #: | 31161904 |
| TAA Compliant: | Yes |
| Weight: | 0.09 lb |
Product Restrictions
