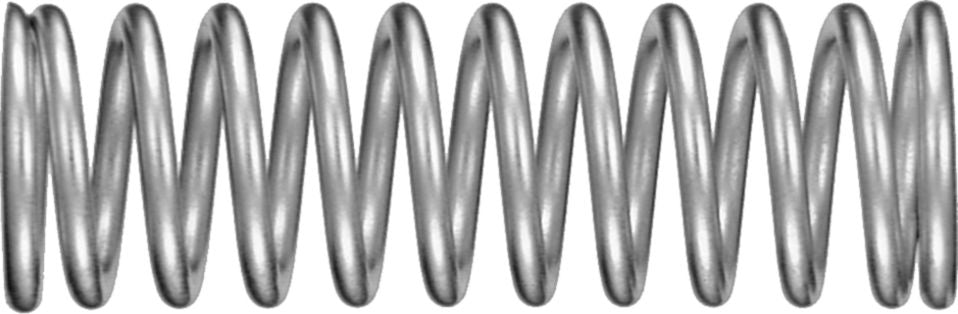

Compression Spring 3/4 x 3"
(Pack of
2.0)
• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Frequently Bought Together
Universal Sorbent Pad
Couldn't load pickup availability
Marker Pen White
Couldn't load pickup availability
Adhesive-Back Shim Stock 5/32 x 1/4" x 30'
Couldn't load pickup availability
BK1 Bearkat Safety Glasses
Couldn't load pickup availability
Automotive Trim Lifting Masking Tape 10mm x 10m
Couldn't load pickup availability
High-Strength Double Side Molding Tape 1/2" x 50'
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Couldn't load pickup availability
Adhesive-Back Shim Stock 5/32 x 1/4" x 30'
Couldn't load pickup availability
High-Strength Double Side Molding Tape 1/4" X 50'
Couldn't load pickup availability
180ml Spray Cup System - Solvent-Based
Couldn't load pickup availability
Compression Spring 5/32 x 1-3/8"
Couldn't load pickup availability
Compression and Extension Spring Kit 322Pcs
Couldn't load pickup availability
Compression Spring 11/64 x 1-3/8"
Couldn't load pickup availability
Product Description
• The most common spring type• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Technical Specifications
| Item#: | 89611 |
|---|---|
| Type | Compression Spring |
| O.D. | 1 " |
| Length | 3 " |
| I.D. | 3/4 " |
| Wire Diameter | 0.120 " |
| Wire Gauge | 11 |
| Number of Coils | 11-1/2 |
| Rate | 45.6 lb./in. |
| Maximum Work Load | 70 lb |
| Material | Steel |
| UNSPSC #: | 31161904 |
| TAA Compliant: | Yes |
| Weight: | 0.26 lb |
