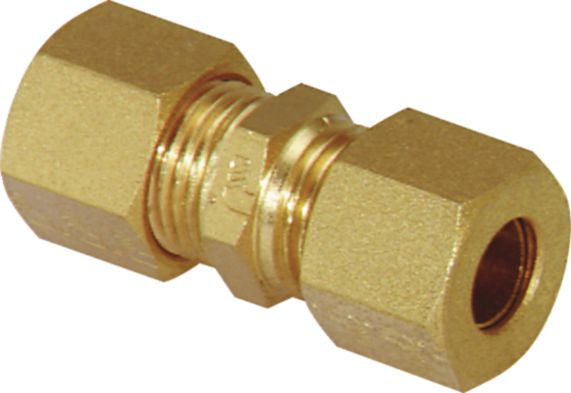

Compression Union, Brass, 4 x 4", Tube x Tube, 500PSI
(Pack of
5)
SKU:51056 Item#: 51056
• All components conform to at least one of the following standards: ISO, CETOP, AFNOR, BNA, CNOMO• Temperature ranges: –65°F to +250°F (–54°C to +121°C) for copper, brass, aluminum and thin-walled steel tubing; 5°F to 160°F (–15°C to +71°C) for nylon tubing• Please refer to our Product Manual for specific pressure ratings. Examples: 4mm copper tubing – 2,100 PSI; 12mm copper tubing – 500 PSI; 4mm nylon tubing at 70°F (21°C) – 360 PSI; 12mm nylon tubing at 70°F (21°C) – 175 PSI
• Applications: Air, water, fuel oil, hydraulic oils, hydrocarbon and many other fluids• Compatible tubing: Copper, brass, aluminum, plastic and thin-walled steel tubing (plastic tubing requires a tube support. Thin-walled steel tubing requires the use of a steel nut and sleeve)
Frequently Bought Together
Compression Nut Brass 1/4"
Couldn't load pickup availability
Compression Self-Align Connector 1/4-18 x 1/2"
Couldn't load pickup availability
Air Line Connector Brass SAE 45° Flare 1/4 x 3/8"
Couldn't load pickup availability
Compression Nut Brass 1/4"
Couldn't load pickup availability
Push-to-Connect Y Connector Nylon 1/4 x 1/8 x 1/4"
Couldn't load pickup availability
Copper Extended Coupling, No Stop, 1/2" x 1/2"
Couldn't load pickup availability
Fuel Line Hose 3/8" ID x 25'
Couldn't load pickup availability
Worm Gear Hose Clamp Assortment with Rack
Couldn't load pickup availability
Air Conditioning Slim Line Sealing Washer
Couldn't load pickup availability
Acrysol Auto Body Degreaser 16oz
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Woven Polyester Electrical Tape 19mm x 25m
Couldn't load pickup availability
Product Description
• All components conform to at least one of the following standards: ISO, CETOP, AFNOR, BNA, CNOMO• Temperature ranges: –65°F to +250°F (–54°C to +121°C) for copper, brass, aluminum and thin-walled steel tubing; 5°F to 160°F (–15°C to +71°C) for nylon tubing• Please refer to our Product Manual for specific pressure ratings. Examples: 4mm copper tubing – 2,100 PSI; 12mm copper tubing – 500 PSI; 4mm nylon tubing at 70°F (21°C) – 360 PSI; 12mm nylon tubing at 70°F (21°C) – 175 PSI• Applications: Air, water, fuel oil, hydraulic oils, hydrocarbon and many other fluids• Compatible tubing: Copper, brass, aluminum, plastic and thin-walled steel tubing (plastic tubing requires a tube support. Thin-walled steel tubing requires the use of a steel nut and sleeve)
Technical Specifications
| Item#: | 51056 |
|---|---|
| Fitting Type | Compression |
| Configuration | Union |
| Material | Brass |
| Connection Type A x B | Tube x Tube |
| Fitting Dimension A | 4 mm |
| Fitting Dimension B | 4 mm |
| Working Pressure | 500 PSI |
| Temperature Range | -65 to 250 F |
| UNSPSC #: | 40170000 |
| TAA Compliant: | Yes |
| Weight: | 0.21 lb |
Product Restrictions
