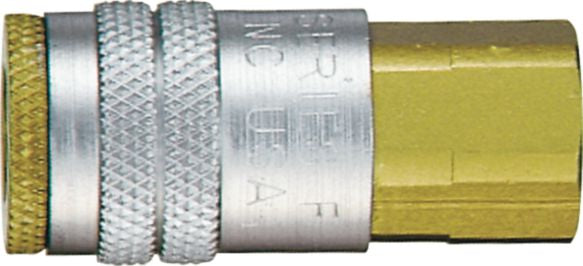

Coupler, Industrial, 1/4'' Body, 1/4-18 Female NPTF, 303 SS
(Pack of
1.0)
Heavy-duty sleeve type couplers feature a built-in sleeve guard to minimize accidental disconnect. Couplers feature stainless steel coupling balls and springs for corrosion resistance. Machined components are manufactured using 303 stainless steel bar stock. Nitrile (Buna-N) seals are standard.
• Industrial interchange design
• Interchanges with the MIL-C-4109F, A-A 59439, and ISO6150B standards.
• Maximum working pressure: 500 PSI
• Temperature Range: -40°F to 250°F (-40°C to 121°C)
Frequently Bought Together
Tru-Flate Safety Push-Button Safety Coupler 1/4" Body x 3/8" FNPT
Couldn't load pickup availability
High Flow Safety Push-Button Safety Coupler 3/8" Body x 1/4" MNPT
Couldn't load pickup availability
High Flow Safety Push-Button Safety Coupler 3/8" Body x 1/4" FNPT
Couldn't load pickup availability
Combination Nipple Steel 3/4-14 x 3/4"
Couldn't load pickup availability
Hose Barb Brass 3/8" x 1/8-27
Couldn't load pickup availability
Hose Barb Brass 1/2" x 1/2-14
Couldn't load pickup availability
Vacuum Hose Connector 1/8 x 1/8"
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 3/8 x 1/8"
Couldn't load pickup availability
Hose Clamp 301 SS 11/16 to 1-1/2"
Couldn't load pickup availability
Barb-Lok Hose End 1/4" (-4) x 3/8-18 (-6)
Couldn't load pickup availability
Barb-Lok Hose End 3/4" (-12) x 3/4-14 (-12)
Couldn't load pickup availability
Barb-Lok Hose End 3/4" (-12) x 7/8-14 (-10)
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
Couldn't load pickup availability
Product Description
Heavy-duty sleeve type couplers feature a built-in sleeve guard to minimize accidental disconnect. Couplers feature stainless steel coupling balls and springs for corrosion resistance. Machined components are manufactured using 303 stainless steel bar stock. Nitrile (Buna-N) seals are standard.• Industrial interchange design
• Interchanges with the MIL-C-4109F, A-A 59439, and ISO6150B standards.
• Maximum working pressure: 500 PSI
• Temperature Range: -40°F to 250°F (-40°C to 121°C)
Technical Specifications
| Item#: | 1593548 |
|---|---|
| Type | Coupler |
| Style | Industrial |
| Body Size | 1/4 " |
| Thread Style | NPTF |
| Thread Size | 1/4 " |
| Working Pressure | 500 PSI |
| Material | 303 Stainless Steel |
| Length | 2.07 " |
| Seal Material | Nitrile |
| Hex Size | 3/4 " |
| Locking Mechanism | 6 Ball |
| Flow | 27 ft³/min |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.225 lb |
