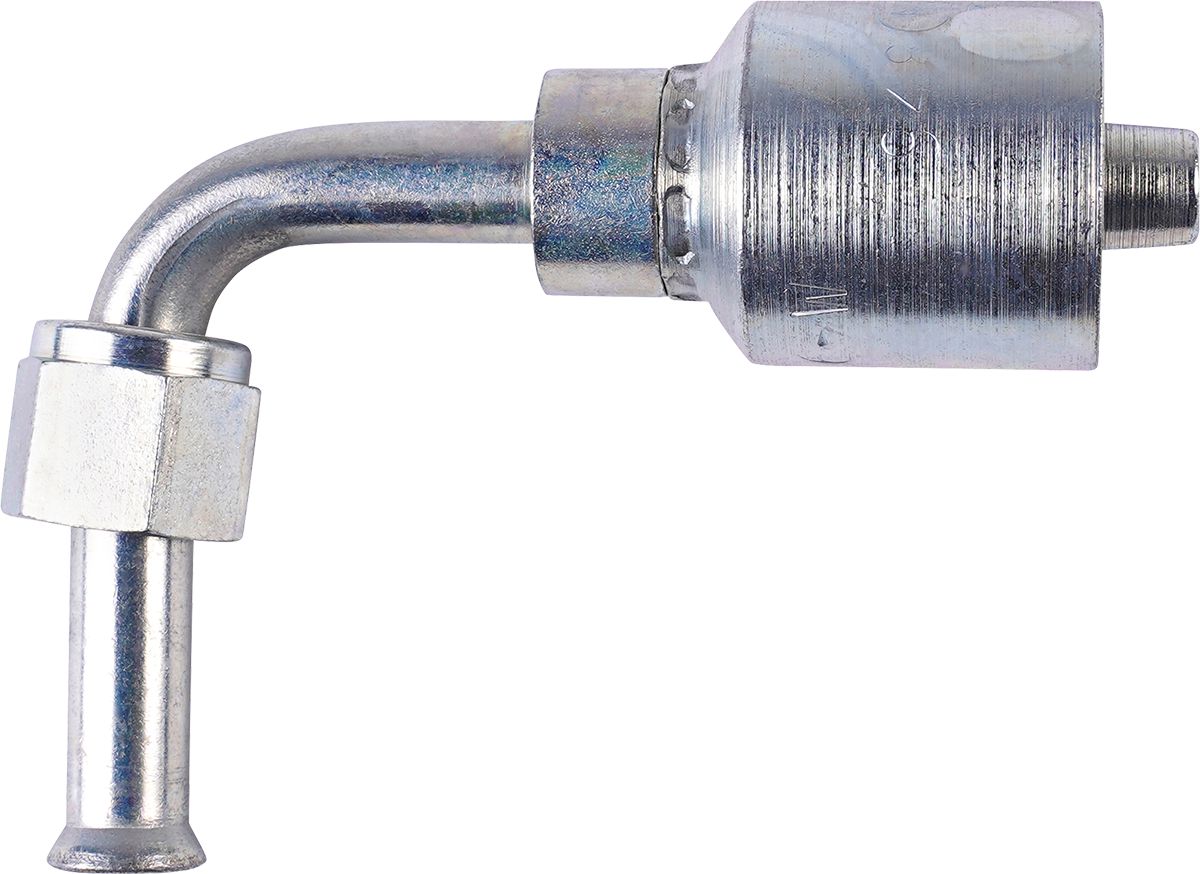

Crimp-On Coupling JIC 37°, 90° Bend Swivel, 5/8"(-10) x 7/8-14(-10)
(Pack of
1.0)
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH
• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Frequently Bought Together
MegaCrimp Coupler, JIC 37 Deg Flare
Item#: 1644580
Couldn't load pickup availability
PRO Coupler, SAE 45 Deg Flare
Item#: 1644579
Couldn't load pickup availability
GlobalSpiral Coupler, Flange - Code 61 O-Ring
Item#: 1644501
Couldn't load pickup availability
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 300 Foot
Item#: 1692936
Couldn't load pickup availability
Kurt Tuff Xtra-Flex High Pressure Hydraulic Hose, 200 Foot
Item#: 1692937
Couldn't load pickup availability
ET500 Mini Crimper Starter Assortment
Item#: 1692860
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-9/16 to 2-1/2"
Item#: P28925M01
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Item#: 54542
Couldn't load pickup availability
Miniature Clamp SS 3/16 to 5/8"
Item#: P63858M01
Couldn't load pickup availability
Bumper and Wheel Well Liner Push-Type Retainer
Item#: 1404768
Couldn't load pickup availability
Woven Polyester Electrical Tape 19mm x 25m
Item#: 1089482
Couldn't load pickup availability
Acrysol Auto Body Degreaser 16oz
Item#: P60170
Couldn't load pickup availability
Product Description
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Technical Specifications
| Item#: | DY54260617 |
|---|---|
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 5/8 (-10) " |
| Dash Size | -10 |
| Gender | Female |
| Fitting End Style | JIC 37 Degree Flare |
| Fitting End Type | Swivel |
| Fitting Angle | 90 ° |
| Fitting Dimension B (Working End) | 7/8-14 (-10) |
| Fitting Series | W |
| Size | (-10)X(-10) |
| Hex Size | 1-1/4 " |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 0.58 lb |
Product Restrictions
