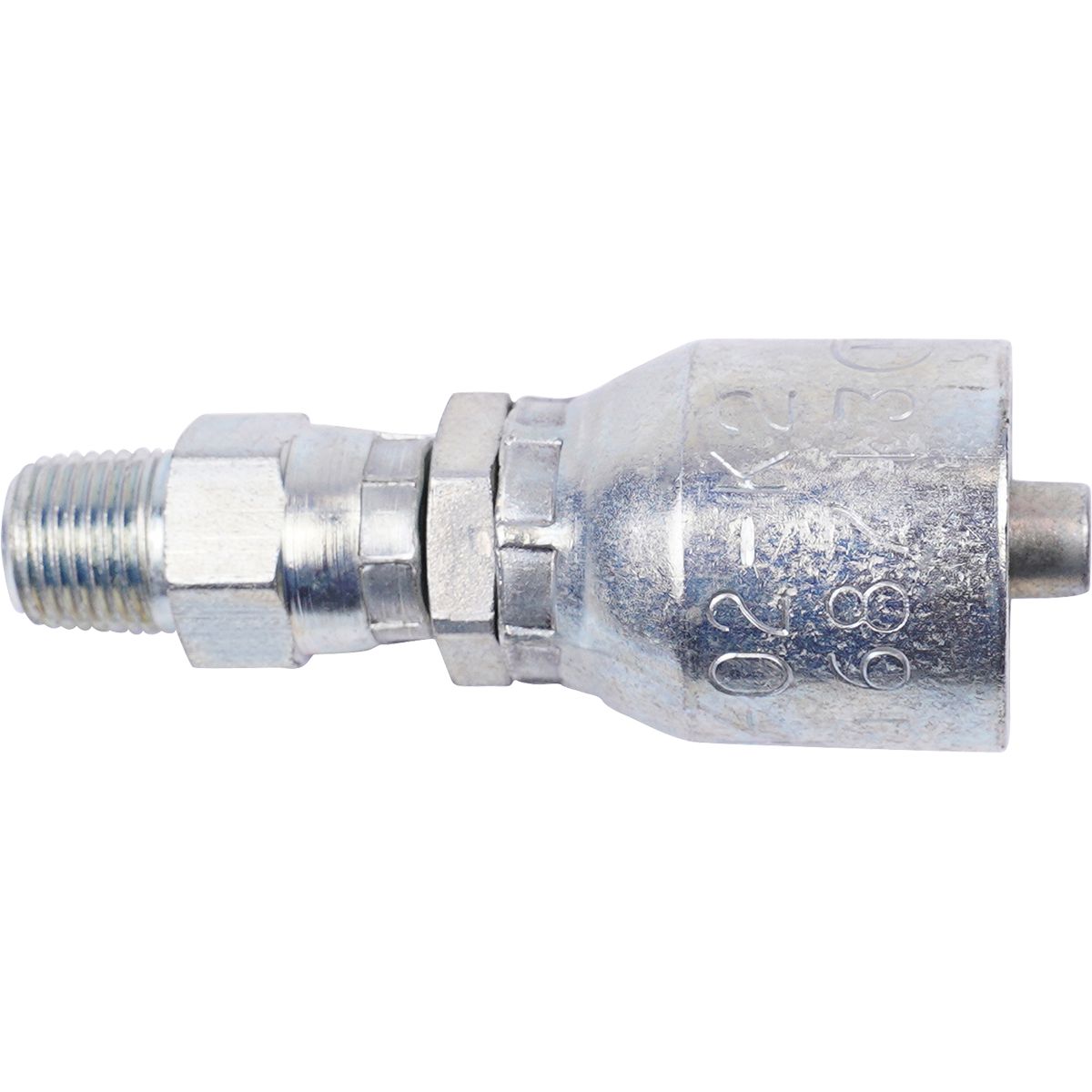

KURT Hydraulics K2 Carbon Steel Crimp-On Coupling NPTF, Male Swivel, 1/4" (-4) Hose x 1/4-18 (-4)
(Pack of
1)
SKU:DY54261506 Item#: DY54261506
• Recommended hose to be used with this style of couplings are: SAE100R1SN, SAE100R2SN, SAE100R16S, SAE100R17, KURT TUFF Hose
• Sizes: (-4) through (-10)
• Reduced size Bite-Wire shell for good compact hose fit
• Excellent performing coupling on new compact hoses
• Large selection of ends available
Frequently Bought Together
Valve Core 210VC 733204045
$0.00
Couldn't load pickup availability
PolarSeal AC Coupler, SAE Tube O-Ring Nut 73320425
$0.00
Couldn't load pickup availability
4T Series Crimp-On Hose End 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 3/8 x 9/16 x 3/32"
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN 10.8 x 14.4mm
$0.00
Couldn't load pickup availability
Hydraulic Hose Protector 4 x 2-1/2" Yellow
$0.00
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 50' air hose assembly w/ Industrial safety coupler
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"
$0.00
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Product Description
• Recommended hose to be used with this style of couplings are: SAE100R1SN, SAE100R2SN, SAE100R16S, SAE100R17, KURT TUFF Hose• Sizes: (-4) through (-10)
• Reduced size Bite-Wire shell for good compact hose fit
• Excellent performing coupling on new compact hoses
• Large selection of ends available
Technical Specifications
| Item#: | DY54261506 |
|---|---|
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1/4 (-4) " |
| Dash Size | -4 |
| Gender | Male |
| Fitting End Style | Pipe NPTF |
| Fitting End Type | Swivel |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1/4-18 (-4) |
| Fitting Series | K2 |
| Size | (-4)X(-4) |
| Hex Size | 11/16 " |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 0.15 lb |
