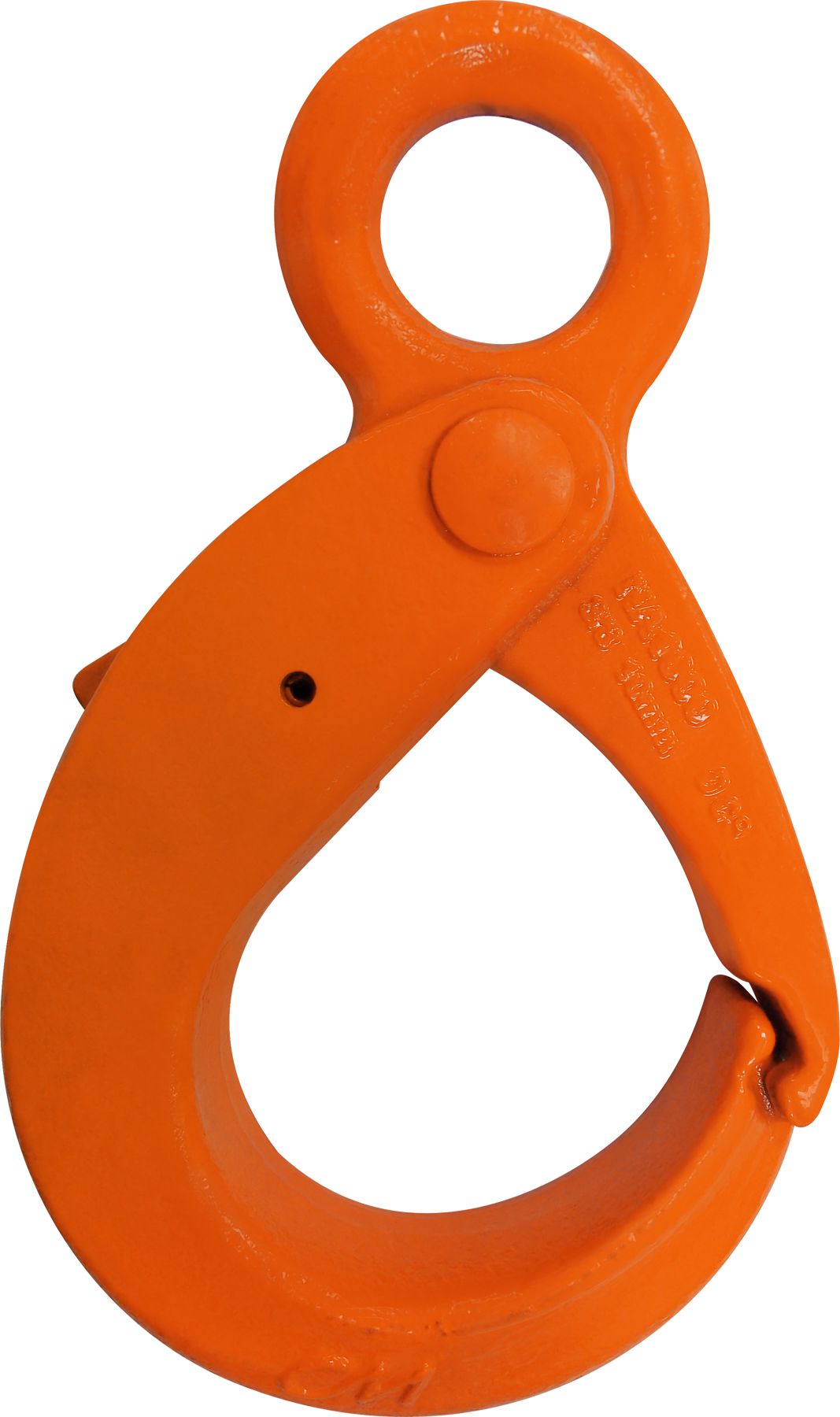

Eye Style Latchlok Hook, Grade 100, 3/8", 8,800 lb WLL
(Pack of
1)
• Large eye design for use with chain, wire rope and synthetic material
• 100% proof tested
• Fatigue rated to Grade 100 specifications
• Durable orange powder coated finish
• Do not apply load unless latch and hook are completely closed and locked
• Make certain that the latch does not support any part of the load
• When lifting, make certain that the load is firmly seated in the base (bowl) of the hook
• Inspect hook and latch periodically. If the hook or latch is damaged or if the latch fails to interlock with the tip, the hook should be removed from service
• Do not exceed the working load limit
• Do not use if the hook is visibly distorted, damaged or worn
• Keep body and other objects clear of the latch when closing to avoid the pinch point
• Do not side load or tip load hook
CAUTION: Do not exceed working load limits.
Frequently Bought Together
Connecting Link, 3/8", 2,650 lb WLL, Self-Colored
Couldn't load pickup availability
Coupling Link, Stainless Steel, 1/2", 7,300 LB WLL
Couldn't load pickup availability
Connecting Link, 5/16", 1,900 lb WLL, Self-Colored
Couldn't load pickup availability
Eye Slip Hook, Stainless Steel, 1/4"
Couldn't load pickup availability
Clevlok Cradle Grab Hook, Grade 100, 1/2", 15,000 lb WLL
Couldn't load pickup availability
Clevis Slip Hook, Grade 63, 5/8", 14,200 lb WLL
Couldn't load pickup availability
10' Fiberglass Platform Ladder, 300 lbs., Type IA
Couldn't load pickup availability
ShelfMax™ Bin, Blue, 17-5/8" x 8/3/8" x 6"
Couldn't load pickup availability
Shelf Bin, Yellow, 17-7/8" x 6-5/8" x 4"
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Product Description
• Large eye design for use with chain, wire rope and synthetic material• 100% proof tested
• Fatigue rated to Grade 100 specifications
• Durable orange powder coated finish
• Do not apply load unless latch and hook are completely closed and locked
• Make certain that the latch does not support any part of the load
• When lifting, make certain that the load is firmly seated in the base (bowl) of the hook
• Inspect hook and latch periodically. If the hook or latch is damaged or if the latch fails to interlock with the tip, the hook should be removed from service
• Do not exceed the working load limit
• Do not use if the hook is visibly distorted, damaged or worn
• Keep body and other objects clear of the latch when closing to avoid the pinch point
• Do not side load or tip load hook
CAUTION: Do not exceed working load limits.
Technical Specifications
| Item#: | 1429765 |
|---|---|
| Type | Eye Style Latchlok Hook |
| Grade | 100 |
| Chain Size | 3/8 " |
| Working Load Limit | 8,800 lb |
| Material | Alloy Steel |
| Color | Orange Powder Coated |
| Dimension A | 1.36 " |
| Dimension D | 4.76 " |
| Dimension F | 2.27 " |
| Dimension H | 0.59 " |
| Dimension K | 1.14 " |
| Dimension M | 6.65 " |
| Dimension P | 1.07 " |
| UNSPSC #: | 31162605 |
| TAA Compliant: | Yes |
| Weight: | 3.97 lb |
