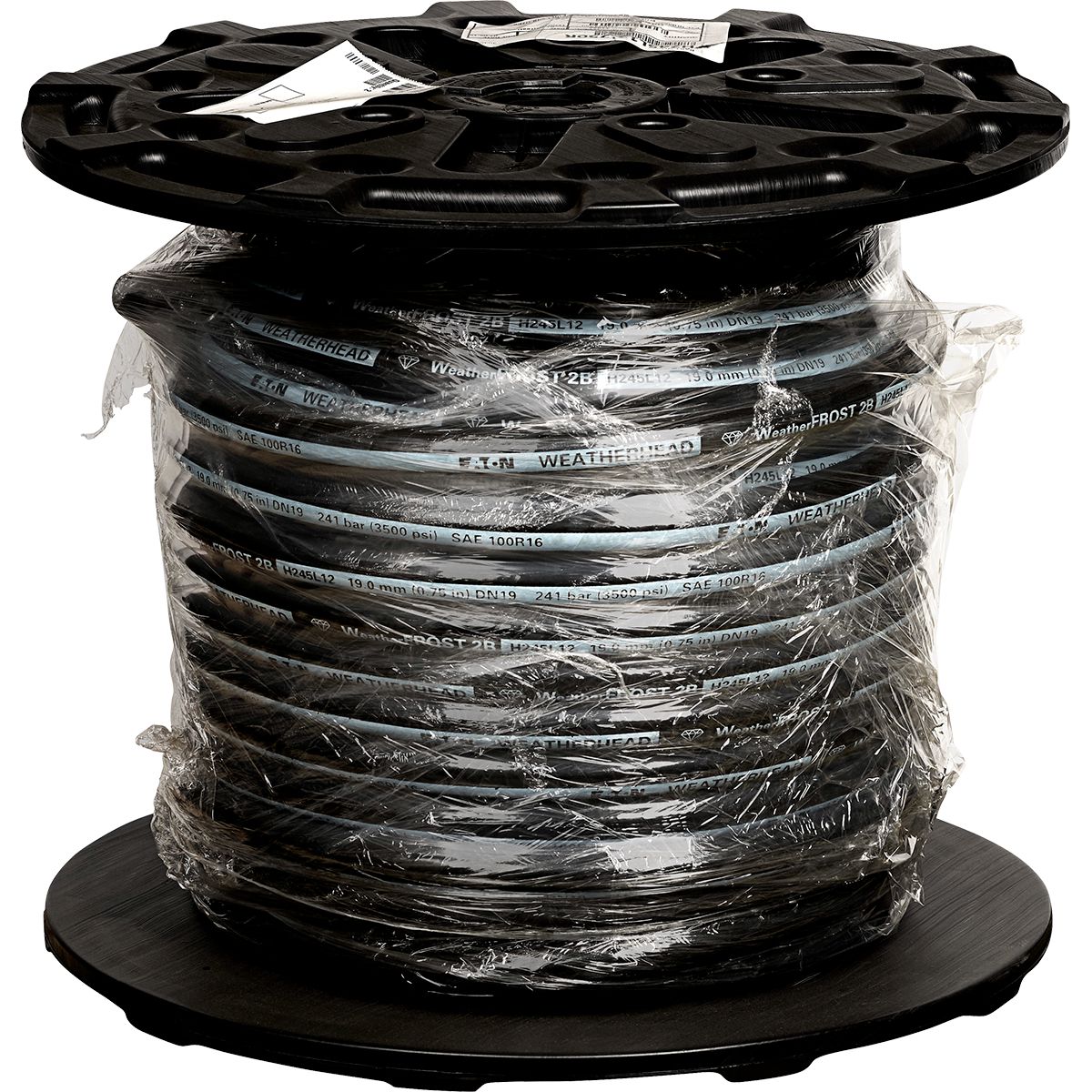

Weatherhead H245L WeatherFROST™ Hydraulic Hose, Rubber, 2-Steel Braided, 3/4" ID, 250' Length, 3500PSI, SAE100R16, EN857 Type 2SC
(Pack of
250)
SKU:1426745 Item#: 1426745
• Agency Ratings: SAE 100R16 Type S, EN 857 Type 2SC
• Fittings Certified: Z-Series
• Agency Approvals: MSHA accepted cover
• Construction:
– Inner Tube: Exclusive low temperature compound
– Reinforcement: Two steel braids
– Cover: WeatherSHIELD™ – eight times better abrasion resistance
• Temperature Range:70°F to +212°F (–57°C to +100°C)
• Application Notes:
– Low temperature flexing in hydraulic system service, used with petroleum and water based fluids
– Provides higher pressure ranges than H245 with equal flexibility
– WeatherSHIELD™ cover provides 8 times the abrasion resistance of standard neoprene cover
– Upgraded pressure ratings
Frequently Bought Together
3TR7 Hydraulic Thermoplastic Hose 1.33" x 50'
$0.00
Couldn't load pickup availability
3TR7N Hydraulic Thermoplastic Hose 0.49" x 250'
$0.00
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.93" x 50'
$0.00
Couldn't load pickup availability
Spacer Ring Green
$0.00
Couldn't load pickup availability
KH Series Crimp-On Coupling 1/2" x 3/4-16
$0.00
Couldn't load pickup availability
RYCO RY16 Mini Crimper Crimp Die Set, Crimp Range 0.551-0.630 Inch
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 3/8-18 x 1/4-18
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
$0.00
Couldn't load pickup availability
DOT Compression Connector Male Brass 3/8 x 3/8"
$0.00
Couldn't load pickup availability
8Pc Metric Flare Nut Wrench Set
$0.00
Couldn't load pickup availability
Universal Socket Set, Deep, 1/2" Drive, 24pc
$0.00
Couldn't load pickup availability
Ceramic Detail Spray - RTU
$0.00
Couldn't load pickup availability
AG-Lite Rubber Water Hose Assembly 1" x 50'
$0.00
Couldn't load pickup availability
AG-Lite Rubber Water Hose Assembly 1" x 100'
$0.00
Couldn't load pickup availability
AG-Lite Rubber Water Hose Assembly 5/8" x 100'
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Front Rear Bumper Specialty Rivet 3.2mm
$0.00
Couldn't load pickup availability
Fender Lining Screw Grommet Nylon #12
$0.00
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE 100R16 Type S, EN 857 Type 2SC• Fittings Certified: Z-Series
• Agency Approvals: MSHA accepted cover
• Construction:
– Inner Tube: Exclusive low temperature compound
– Reinforcement: Two steel braids
– Cover: WeatherSHIELD™ – eight times better abrasion resistance
• Temperature Range:70°F to +212°F (–57°C to +100°C)
• Application Notes:
– Low temperature flexing in hydraulic system service, used with petroleum and water based fluids
– Provides higher pressure ranges than H245 with equal flexibility
– WeatherSHIELD™ cover provides 8 times the abrasion resistance of standard neoprene cover
– Upgraded pressure ratings
Technical Specifications
| Item#: | 1426745 |
|---|---|
| Manufacturer Model #: | H245L12-250R |
| Industry Rating 1 | SAE 100R16 |
| Industry Rating 2 | EN857 Type 2SC |
| I.D. | 3/4 (-12) " |
| Hose O.D. | 1-1/8 " |
| Working Pressure | 3,500 PSI |
| Burst Pressure | 14,000 PSI |
| Fitting Series | Z series |
| Bend Radius | 4.75 " |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 168.0 lb |
