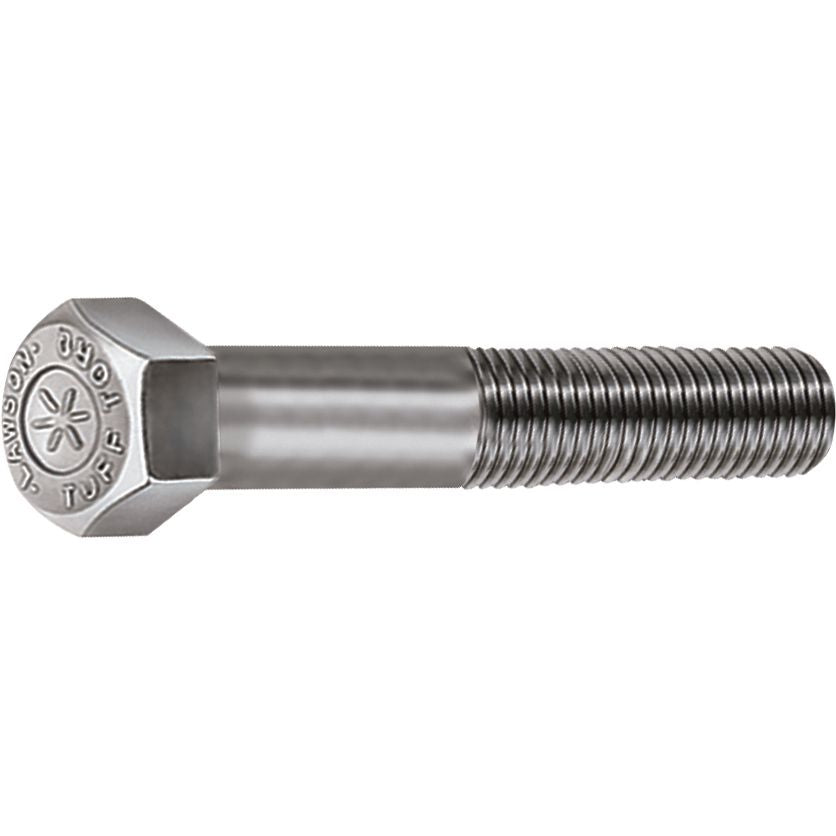

Hex Cap Screw, Grade 8, Alloy Steel, Zinc Finish, Fine Thread, 15/32" Head Height, 15/16" Across Flats, 5/8-18 x 2-1/2"
(Pack of
25)
SKU:900 Item#: 900
• Most versatile, best value for standard maintenance operations
• High-strength matched component fastening system
• Fatigue/vibration-resistant UNJ thread design
• 20% higher-than-normal wrenching surface for increased safety and even distribution of torque forces
• Heat-treated, quenched and tempered
• Perma Plated for superior corrosion protection
• Proprietary head marking for improved traceability
• Trailing thread does not enter the extrusion angle
• Increased length of chamfer allows easier alignment and assembly

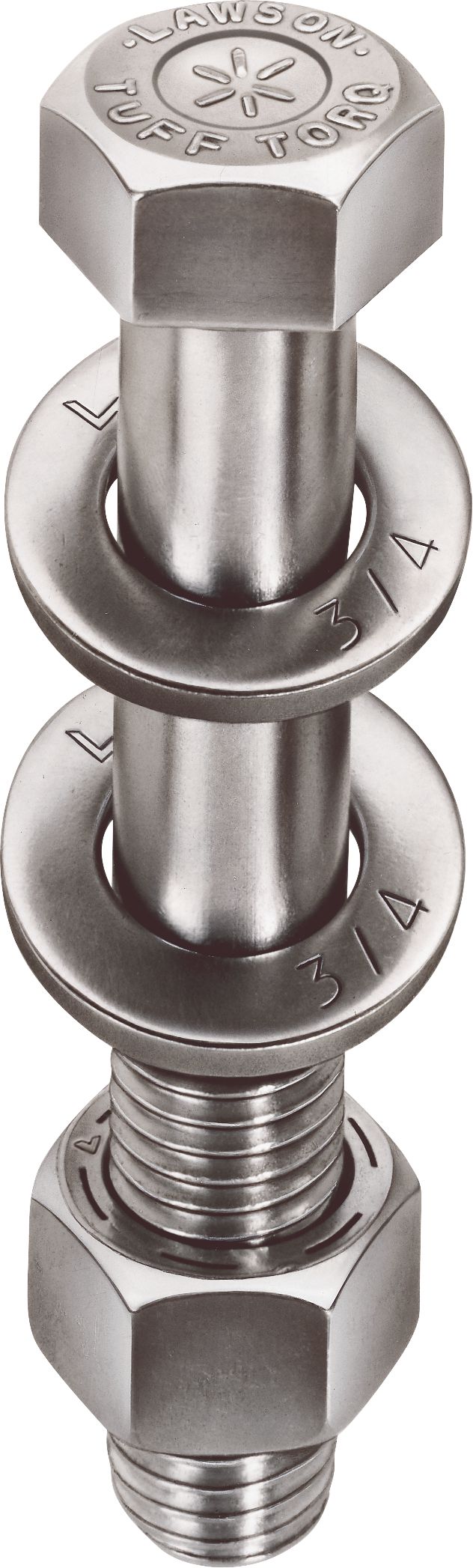

• Matched strength nuts, flat washers and lock nuts available
• Minimum 150,000 PSI tensile strength
• Manufactured to meet or exceed Grade 8 strength requirements
Minimum Threaded Length – Up to 6" Long: (2 x Diameter) + 1/4"; Over 6" Long: (2 x Diameter) + 1/2
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M8-1.25 x 40mm
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 20mm
$0.00
Couldn't load pickup availability
DIN 6921 Hex Flange Bolt Grade 8.8 M8-1.25 x 16mm
$0.00
Couldn't load pickup availability
Hex Cap Screw Grade 10.9 Alloy Steel M6-1 x 12mm
$0.00
Couldn't load pickup availability
Hex Cap Screw Grade 5 5/16-18 x 2"
$0.00
Couldn't load pickup availability
Hex Cap Screw Property Class 8.8 M6-1 x 25mm
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 16mm
$0.00
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M6-1
$0.00
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M10
$0.00
Couldn't load pickup availability
Hex Flange Nut Grade 10 Steel M10-1.5
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 12mm
$0.00
Couldn't load pickup availability
Hex Nut Grade 8 Steel M10-1.5
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Product Description
• Most versatile, best value for standard maintenance operations• High-strength matched component fastening system
• Fatigue/vibration-resistant UNJ thread design
• 20% higher-than-normal wrenching surface for increased safety and even distribution of torque forces
• Heat-treated, quenched and tempered
• Perma Plated for superior corrosion protection
• Proprietary head marking for improved traceability
• Trailing thread does not enter the extrusion angle
• Increased length of chamfer allows easier alignment and assembly
• Matched strength nuts, flat washers and lock nuts available
• Minimum 150,000 PSI tensile strength
• Manufactured to meet or exceed Grade 8 strength requirements
Minimum Threaded Length – Up to 6" Long: (2 x Diameter) + 1/4"; Over 6" Long: (2 x Diameter) + 1/2
Technical Specifications
| Item#: | 900 |
|---|---|
| Style | Premium |
| Diameter | 5/8 " |
| Thread Pitch | 18 |
| Thread | Fine |
| Length | 2-1/2 " |
| Type | Hex Cap Screw |
| Across Flats | 15/16 " |
| Material | Alloy Steel |
| Grade | 8 |
| Finish | Bright Zinc |
| Tensile Strength | 150,000 PSI |
| Head Style | High Hex |
| Head Height | 15/32 " |
| Thread Form | UNJ |
| Thread Length | Partial |
| Thread Length Minimum | 1-1/2 " |
| UNSPSC #: | 31161501 |
| TAA Compliant: | Yes |
| Weight: | 7.27 lb |
Product Restrictions
