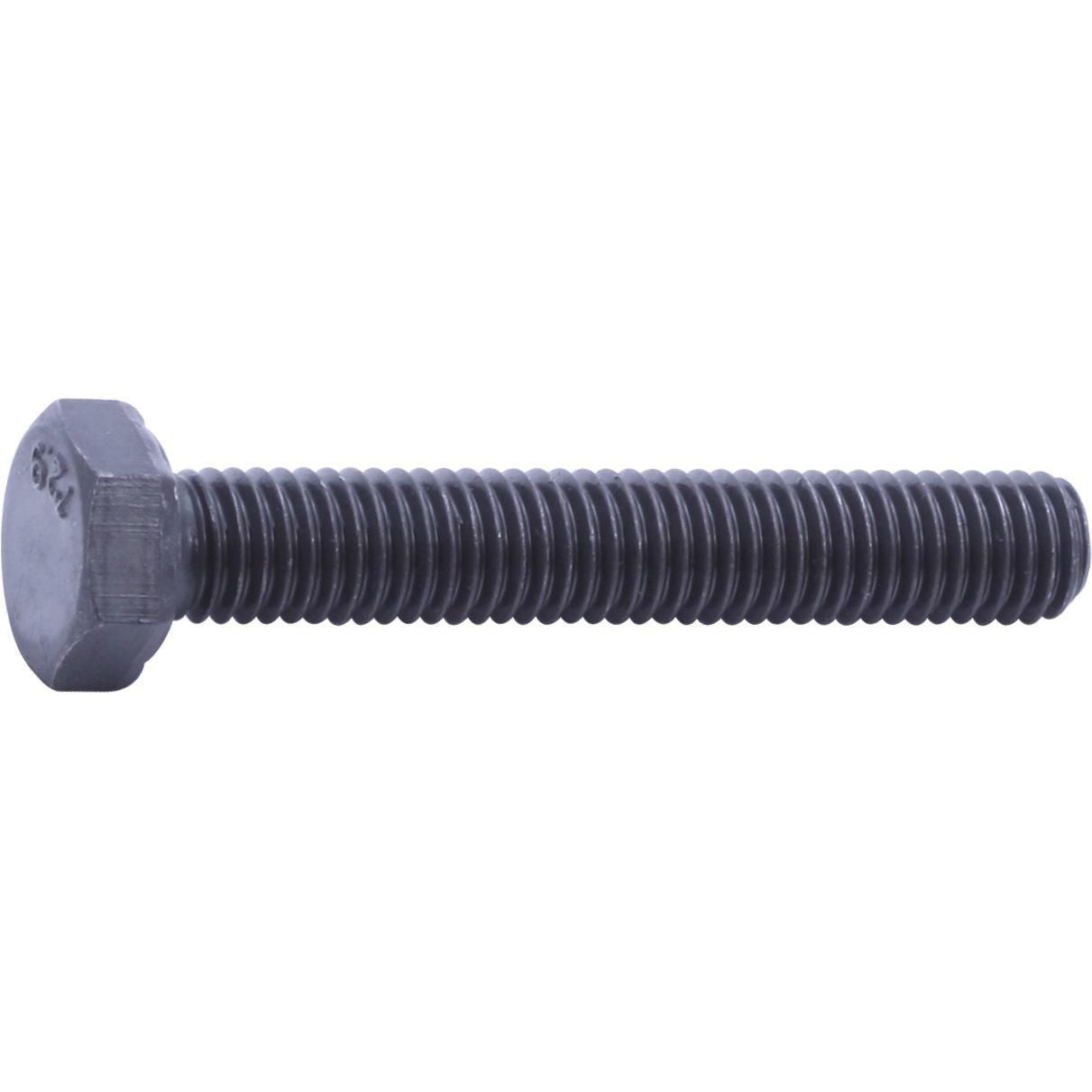

DIN 933 Hex Cap Screw, Property Class 10.9, Steel, Plain Finish, Coarse Thrd, 18.7mm Hd Height, 46mm Across Flats, M30-3.5 x 110mm
(Pack of
1)
SKU:1435924 Item#: 1435924
• 1,040 MPa (150,000 PSI) minimum ultimate tensile strength
• Meets DIN Specifications 933 (full thread) and 931 (partial thread)
Frequently Bought Together
DIN 6921 Hex Flange Bolt Grade 8.8 M10-1.5 x 30mm
Item#: 59420
$0.00
Couldn't load pickup availability
Hex Cap Screw Property Class 8.8 M8-1.25 x 30mm
Item#: 27344
$0.00
Couldn't load pickup availability
DIN 6921 Hex Flange Bolt Grade 8.8 M8-1.25 x 40mm
Item#: 59416
$0.00
Couldn't load pickup availability
Hex Cap Screw Property Class 8.8 M8-1.25 x 35mm
Item#: 27345
$0.00
Couldn't load pickup availability
Hex Cap Screw Grade 5 1/4-20 x 1"
Item#: FA65002
$0.00
Couldn't load pickup availability
Hex Cap Screw Grade 8 1/4-20 x 1/2"
Item#: FA68000
$0.00
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Item#: FA88435
$0.00
Couldn't load pickup availability
Hex Nut Grade 8 Steel M12-1.75
Item#: 80250
$0.00
Couldn't load pickup availability
Hex Flange Nut Grade 8 Steel M8-1.25
Item#: 57129
$0.00
Couldn't load pickup availability
Hex Nut Grade 8 Steel 3/8-16
Item#: FA68402
$0.00
Couldn't load pickup availability
Hex Flange Nut Grade 10 Steel M8-1.25
Item#: 59768
$0.00
Couldn't load pickup availability
Hex Flange Nut Grade 8 Steel M6-1
Item#: 57128
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
Item#: P85218
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 10mm
Item#: 1482003
$0.00
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
Item#: P60477
$0.00
Couldn't load pickup availability
Product Description
• 1,040 MPa (150,000 PSI) minimum ultimate tensile strength• Meets DIN Specifications 933 (full thread) and 931 (partial thread)
Technical Specifications
| Item#: | 1435924 |
|---|---|
| Style | Industry Standard |
| Diameter | M30 |
| Thread Pitch | 3.5 mm |
| Thread | Coarse |
| Length | 110 mm |
| Type | Hex Cap Screw |
| Across Flats | 46 mm |
| Material | Alloy Steel |
| Grade | 10.9 |
| Finish | Plain |
| Tensile Strength | 1,040 MPa |
| Specifications | DIN 933 |
| Head Style | Hex |
| Head Height | 18.7 mm |
| Thread Length | Full |
| Thread Length Minimum | Full |
| UNSPSC #: | 31161501 |
| TAA Compliant: | No |
