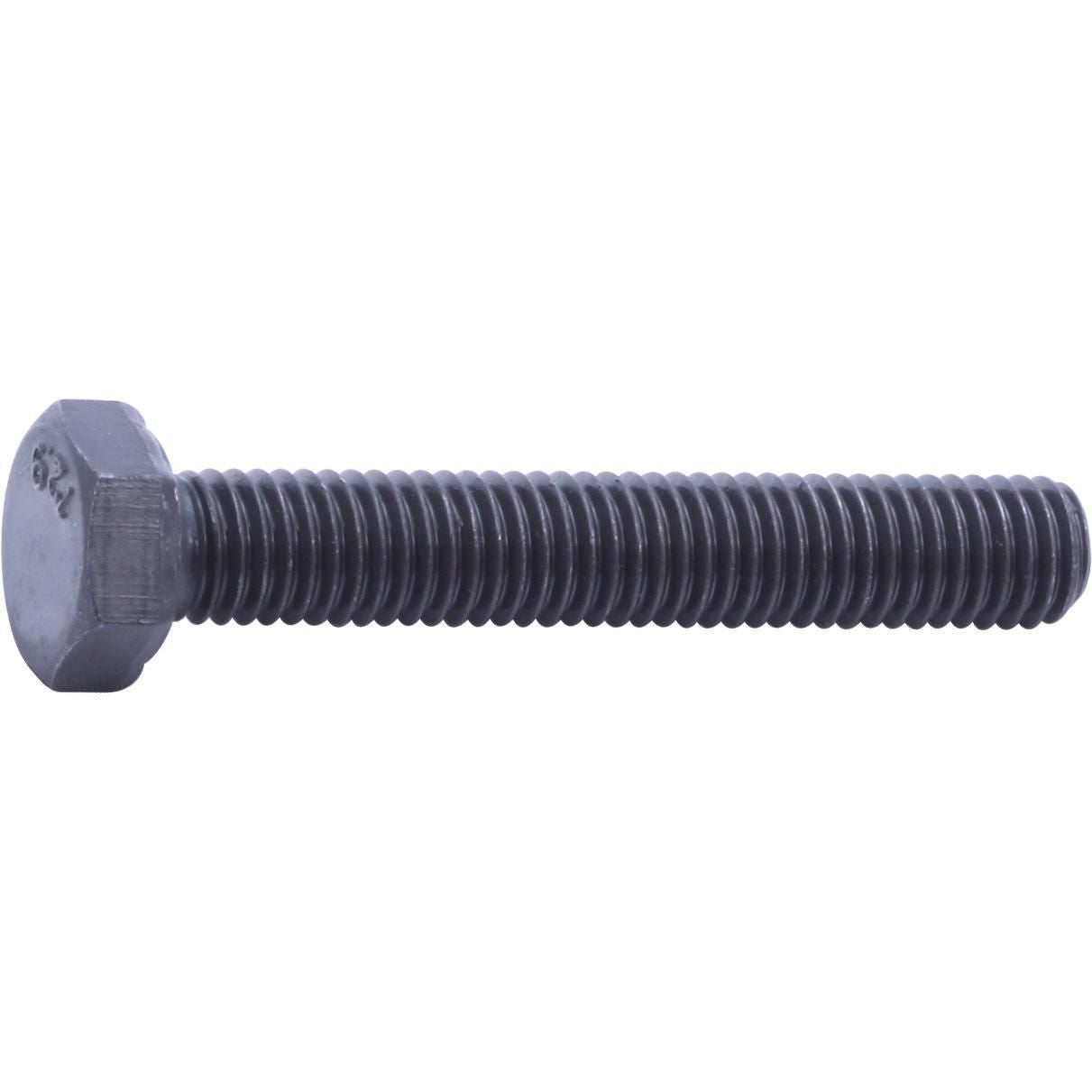

DIN 933 Hex Cap Screw, Property Class 10.9, Steel, Plain Finish, Coarse Thrd, 18.7mm Hd Height, 46mm Across Flats, M30-3.5 x 180mm
(Pack of
1)
SKU:1435937 Item#: 1435937
• 1,040 MPa (150,000 PSI) minimum ultimate tensile strength
• Meets DIN Specifications 933 (full thread) and 931 (partial thread)
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M10-1.25 x 30mm
Item#: 55608
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 16mm
Item#: 28679
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 12mm
Item#: 28678
Couldn't load pickup availability
Hex Cap Screw Grade 10.9 Alloy Steel M6-1 x 20mm
Item#: 10204
Couldn't load pickup availability
Hex Cap Screw Property Class 8.8 M6-1 x 16mm
Item#: 27330
Couldn't load pickup availability
Hex Cap Screw Property Class 8.8 M8-1.25 x 40mm
Item#: 27346
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Item#: 484
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 20mm
Item#: 55603
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 30mm
Item#: 55604
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 30mm
Item#: 55608
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 16mm
Item#: 28679
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M6-1
Item#: 28699
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Item#: 1365427
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Item#: KT13998
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Item#: KT11397
Couldn't load pickup availability
Product Description
• 1,040 MPa (150,000 PSI) minimum ultimate tensile strength• Meets DIN Specifications 933 (full thread) and 931 (partial thread)
Technical Specifications
| Item#: | 1435937 |
|---|---|
| Style | Industry Standard |
| Diameter | M30 |
| Thread Pitch | 3.5 mm |
| Thread | Coarse |
| Length | 180 mm |
| Type | Hex Cap Screw |
| Across Flats | 46 mm |
| Material | Alloy Steel |
| Grade | 10.9 |
| Finish | Plain |
| Tensile Strength | 1,040 MPa |
| Specifications | DIN 933 |
| Head Style | Hex |
| Head Height | 18.7 mm |
| Thread Length | Full |
| Thread Length Minimum | Full |
| UNSPSC #: | 31161501 |
| TAA Compliant: | Yes |
