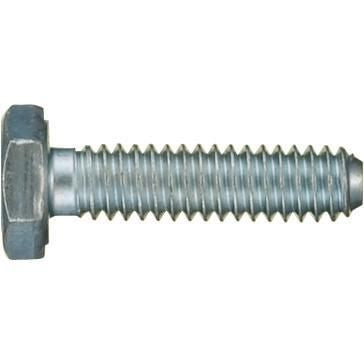

DIN 933 Hex Cap Screw, Property Class 8.8, Steel, Zinc Finish, Coarse Thread, 6.4mm Head Height, 17mm Across Flats, M10-1.5 x 35mm
(Pack of
25)
• 830 MPa (120,000 PSI) minimum ultimate tensile strength
• Comparable to SAE Grade 5
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M6-1 x 45mm
Item#: 28685
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 50mm
Item#: 28696
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 16mm
Item#: 55602
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 1/2-13 x 2-1/2"
Item#: 666
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 3/8-16 x 3/4"
Item#: 631
Couldn't load pickup availability
Hex Cap Screw Property Class 12.9 M20-2.5 x 80mm
Item#: 84502A
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Item#: FA88435
Couldn't load pickup availability
Hex Cap Screw Property Class 8.8 M6-1 x 16mm
Item#: 27330
Couldn't load pickup availability
DIN 6921 Hex Flange Bolt Grade 8.8 M8-1.25 x 16mm
Item#: 59411
Couldn't load pickup availability
High-Tech Seam Sealer Clear 5fl.oz
Item#: P10200
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Item#: P85253
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Item#: P24082
Couldn't load pickup availability
Product Description
• 830 MPa (120,000 PSI) minimum ultimate tensile strength• Comparable to SAE Grade 5
Technical Specifications
| Item#: | 61271 |
|---|---|
| Style | Industry Standard |
| Diameter | M10 |
| Thread Pitch | 1.5 mm |
| Thread | Coarse |
| Length | 35 mm |
| Type | Hex Cap Screw |
| Across Flats | 17 mm |
| Material | Carbon Steel |
| Grade | 8.8 |
| Finish | Bright Zinc |
| Tensile Strength | 830 MPa |
| Specifications | DIN 933 |
| Head Style | Hex |
| Head Height | 6.4 mm |
| Thread Length | Full |
| Thread Length Minimum | Full |
| UNSPSC #: | 31161501 |
| TAA Compliant: | No |
| Weight: | 1.61 lb |
