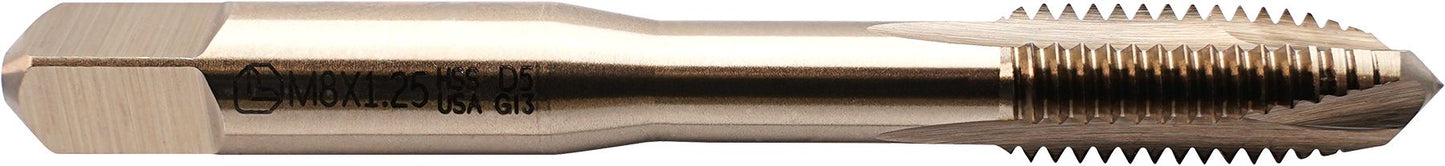

Spiral Point Hand Tap, High Speed Steel, 3 Flute, M8 x 1.25, 2-23/32" Overall Length
(Pack of
1)
SKU:63499 Item#: 63499
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap
• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Abrasive Hand Pad All Purpose 6 x 9"
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit Cobalt 5/16" (M8)
$0.00
Couldn't load pickup availability
1/8" - 1/2 " Cryonitride Spiral Fluted Step Drill - 1/4" Shank
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
$0.00
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
$0.00
Couldn't load pickup availability
HSS Spiral Point Hand Tap 1/4-20
$0.00
Couldn't load pickup availability
HSS Spiral Point Hand Tap 5/16-18
$0.00
Couldn't load pickup availability
HSS Spiral Point Hand Tap M3 x 0.5
$0.00
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap 7/8-14
$0.00
Couldn't load pickup availability
3-Flute HSS Taper Hand Tap M2.5 x 0.45
$0.00
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap M12 x 1.5
$0.00
Couldn't load pickup availability
Universal Socket Set, 3/8" Drive, 20pc
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit 5/16" (M8)
$0.00
Couldn't load pickup availability
8Pc Metric Mini Double Head Wrench Set
$0.00
Couldn't load pickup availability
Product Description
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 63499 |
|---|---|
| Type | Metric |
| Diameter | M8 |
| Pitch | 1.25 mm |
| Flutes | 3 |
| Material | HSS |
| Overall Length | 2-23/32 " |
| Recommended Drill Size | 17/64 " |
| UNSPSC #: | 23241615 |
| TAA Compliant: | Yes |
| Weight: | 0.06 lb |
