Home Fasteners Rivets Rivet Lock Bolts HuckBolt® Hucktainer® Rivet Lockbolt 3/8"
Fasteners

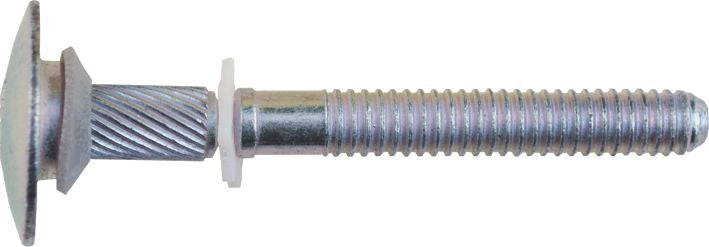

HuckBolt® Hucktainer® Rivet Lockbolt, Standard Low Profile Head, Carbon Steel, Zinc Plated, 0.937 to 1.062" Grip Range
(Pack of 10)

Item#: 1504964

Huck®

Delivering uniform, consistent clamp load and high shear and tensile strength, HuckBolts® are ideal for applications ranging from general manufacturing to high-vibration environments such as HVAC, trailer and container assembly and repair, rotating equipment, railroad and transit cars, storage pods, and many others.
HuckBolts® feature an exclusive locking groove design that ensures a tight, permanent fit. In addition to superior fastening performance regardless of which lock bolt type you require, HuckBolts® have been proven to reduce labor and installation costs, along with rework and warranty expenses.
• Two-piece specialty fastener for fiberglass-reinforced plywood (FRP) panels
• Installs with consistent pressure, reducing crushing or crazing
• Features a heavy zinc plating that resists corrosion
• Incorporates an integral seal keeping elements from invading the joint
• Can never be over-torqued or under-torqued
• Tamper-resistant
• Low profile head design
• Zinc-plated carbon steel
• Tensile strength
– Minimum grip: 1,800 lbs.
– Mid grip: 1,200 lbs.
– Maximum grip: 800 lbs.

Read More
Check Availability
Usually Ships: Today
While Supplies Last

Catalog page#: 11-127

Frequently Bought Together


DIN 125A Flat Washer Grade 140 HV M8

Item#: 80263

Hex Flange Bolt Grade 10.9 M8-1.25 x 16mm

Item#: 55602

Hex Flange Bolt Grade 10.9 M10-1.25 x 30mm

Item#: 55608

HuckBolt® C6L® Rivet Lockbolt Carbon Steel 1/4"

Item#: 1504937

HuckBolt® C50L® Rivet Lockbolt Button Head 5/8"

Item#: 1504982

Multi-Grip Lockbolt Rivet Head Steel 3/16"

Item#: 1543704

Open End Rivet Dome Head Aluminum 1/8"

Item#: 82336

Open End Rivet Large Flange Head Aluminum 3/16"

Item#: 82354

Open End Rivet Dome Head Aluminum 1/8"

Item#: 41612

Drive Rivet Nylon M8

Item#: 1500739

Bumper Push-Type Retainer Nylon 18mm

Item#: P15600

Bumper Radiator and Grille Drive Rivet 7mm Hole

Item#: P85262

10Pc SAE Mini Combination Wrench Set

Item#: DY89250400

Wobble Hex Bit Socket Set 10Pc Sae 3/8Dr

Item#: DY89310055

Universal Impact Socket Adapter 3/4Dr

Item#: DY89320074

10Pc SAE Mini Combination Wrench Set

Item#: DY89250400

Wobble Hex Bit Socket Set 10Pc Sae 3/8Dr

Item#: DY89310055

Universal Impact Socket Adapter 3/4Dr

Item#: DY89320074

Product Description

Delivering uniform, consistent clamp load and high shear and tensile strength, HuckBolts® are ideal for applications ranging from general manufacturing to high-vibration environments such as HVAC, trailer and container assembly and repair, rotating equipment, railroad and transit cars, storage pods, and many others.
HuckBolts® feature an exclusive locking groove design that ensures a tight, permanent fit. In addition to superior fastening performance regardless of which lock bolt type you require, HuckBolts® have been proven to reduce labor and installation costs, along with rework and warranty expenses.
• Two-piece specialty fastener for fiberglass-reinforced plywood (FRP) panels
• Installs with consistent pressure, reducing crushing or crazing
• Features a heavy zinc plating that resists corrosion
• Incorporates an integral seal keeping elements from invading the joint
• Can never be over-torqued or under-torqued
• Tamper-resistant
• Low profile head design
• Zinc-plated carbon steel
• Tensile strength
– Minimum grip: 1,800 lbs.
– Mid grip: 1,200 lbs.
– Maximum grip: 800 lbs.

Technical Specifications

Item#: 1504964
Manufacturer Model #: HLPP-R12-16PL
Series Fixed Grip
Diameter 3/8 "
Maximum Hole Size 0.421 "
Grip Range 0.937 - 1.062 "
Head Style Standard Low Profile Head
Length 2.607 "
Material Carbon Steel
Finish Zinc Plated
UNSPSC #: 31162201
TAA Compliant: No
Weight: 0.5 lb
