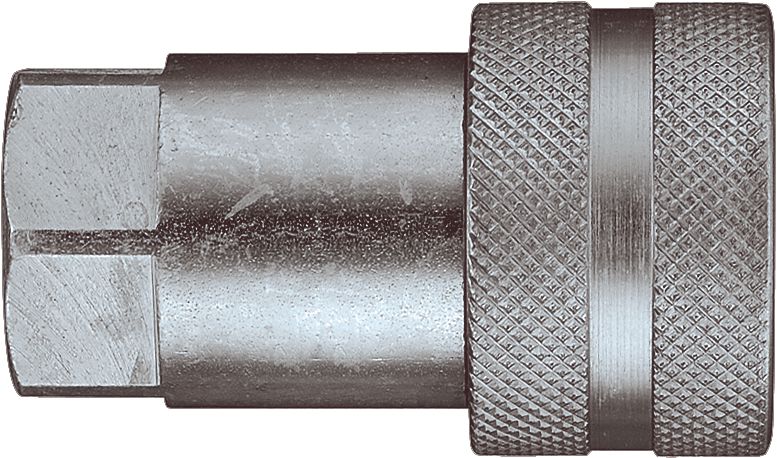

Hydraulic Quick Connect Coupler, Carbon Steel, ISO 7241 Series 'A', 1/2" x 1/2-14, Female NPT, 2.49" Length, 3625PSI
(Pack of
1)
SKU:84601 Item#: 84601
The integrity of your connection is only as good as the quality of your coupler or nipple. AG couplers and nipples provide the quality and reliability you need. They feature a quality design most commonly used in agricultural applications and are also suitable for use in construction, forestry equipment and mineral oil hydraulic systems.
• Carbon steel body with yellow zinc plating
• Mating parts are hardened
• Nitrile O-ring seals
• Ball seal allows proper coupler function in presence of dirt, oils, etc.
• Easy coupling and uncoupling
• Though these are not swivel couplers, the two halves can rotate to reduce hose torsion
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Dixon: AG-SeriesPioneerParker: 4000 SeriesFaster: NS
Frequently Bought Together
Air Conditioning O-Ring HSN 10.8 x 14.4mm
$0.00
Couldn't load pickup availability
Hydraulic Hose Protector 4 x 2-1/2" Yellow
$0.00
Couldn't load pickup availability
Hydraulic Hose Protector 8 x 3-1/2" Black
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"
$0.00
Couldn't load pickup availability
Miniature Clamp SS 3/16 to 5/8"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/8 to 7/8"
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Brass 3/8" x 3/8-18
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/4" x 3/4-14
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
$0.00
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
$0.00
Couldn't load pickup availability
Product Description
The integrity of your connection is only as good as the quality of your coupler or nipple. AG couplers and nipples provide the quality and reliability you need. They feature a quality design most commonly used in agricultural applications and are also suitable for use in construction, forestry equipment and mineral oil hydraulic systems.• Carbon steel body with yellow zinc plating
• Mating parts are hardened
• Nitrile O-ring seals
• Ball seal allows proper coupler function in presence of dirt, oils, etc.
• Easy coupling and uncoupling
• Though these are not swivel couplers, the two halves can rotate to reduce hose torsion
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Dixon: AG-SeriesPioneerParker: 4000 SeriesFaster: NS
Technical Specifications
| Item#: | 84601 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |
| Style | ISO 7241 Series 'A' |
| Body Size | 1/2 " |
| Thread Size | 1/2-14 |
| Thread Style | Female NPT |
| Burst Pressure | 11,600 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Carbon Steel |
| Locking Mechanism | 9 Balls |
| Flow | 12 gal/min |
| Length | 2.49 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 3,625 PSI |
| Hex Size | 1.06 " |
| Maximum Diameter | 1.50 " |
| Coupled Length | 3.40 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.52 lb |
