Home Hydraulics Hydraulic Quick Disconnect Hydraulic Quick Connect Nipple Steel 1/2" x 1/2-14
Hydraulic

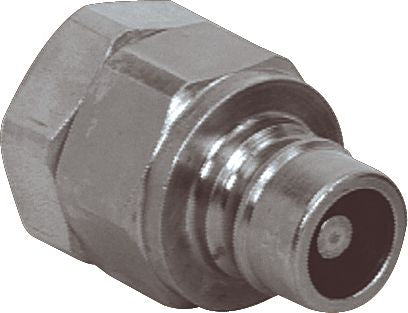

Hydraulic Quick Connect Nipple, Steel, Snap-Tite H/IH, 1/2" x 1/2-14, Female NPTF, 1.99" Length, 4000PSI
(Pack of 1)

Item#: 53612

Kent Automotive

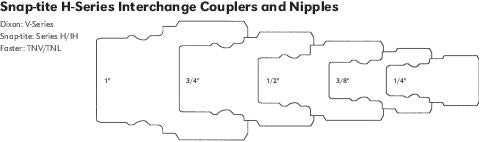

Double shut-off design for high-pressure applications, Snap-tite H/IH Couplers and Nipples provide excellent performance and are completely interchangeable with Snap-tite H Series and Faster TNV.
• Also fully interchangeable with MIL-C-51234 couplers and nipples
• Connection and disconnection require manual sleeve retraction
Dixon: T-Series

Read More
Check Availability

Frequently Bought Together


Spacer Ring Green/White

Item#: 1555805

Air Conditioning O-Ring HSN Green

Item#: P27171

Braided Collet Orange

Item#: 1555849

DOT Swivel Elbow Male 360° Brass 1/4 x 1/4-18

Item#: 27202

Worm Gear Hose Clamp Assortment with Rack

Item#: KL115

Push-Button Air Coupler Steel 1/4" x 3/8-18

Item#: KT15124

Hydraulic Check Valve 1-11/12" x 1-11/12

Item#: 63162

Hydraulic Quick Connect Nipple Brass 3/8" x 1/2-14

Item#: 55696

Hydraulic Quick Connect Coupler 1" x 1-11-1/2

Item#: 20989

Hex Head Sheet Metal Screw with 16mm Washer Steel

Item#: P58130

Air Distributor Defroster Push-Type Retainer

Item#: P85035

Fender Liner Screw Grommet Nylon M5.5

Item#: 1457513

Product Description

Double shut-off design for high-pressure applications, Snap-tite H/IH Couplers and Nipples provide excellent performance and are completely interchangeable with Snap-tite H Series and Faster TNV.
• Also fully interchangeable with MIL-C-51234 couplers and nipples
• Connection and disconnection require manual sleeve retraction
Dixon: T-Series

Technical Specifications

Item#: 53612
Hydraulic / Pneumatic Hydraulic
Description Quick Coupling
Type Nipple
Style Snap-Tite H/IH
Standards MIL-C-51234
Body Size 1/2 "
Thread Size 1/2-14
Thread Style Female NPTF
Burst Pressure 9,600 PSI
Seal Material Nitrile (Buna-N)
Material Steel
Flow 13 gal/min
Length 1.99 "
Temperature Range -40 to 250 F
Working Pressure 4,000 PSI
Hex Size 1-3/16 "
Maximum Diameter 1.31 "
Coupled Length 3.40 "
UNSPSC #: 27121701
TAA Compliant: Yes
Weight: 0.32 lb
