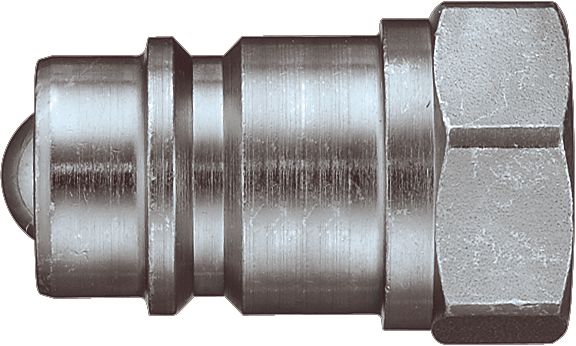

Hydraulic Quick Connect Nipple, Carbon Steel, ISO 5675, 1/4" x 1/4-18, Female NPT, 1.28" Length, 4350PSI
(Pack of
1)
SKU:28624 Item#: 28624
The integrity of your connection is only as good as the quality of your coupler or nipple. AG couplers and nipples provide the quality and reliability you need. They feature a quality design most commonly used in agricultural applications and are also suitable for use in construction, forestry equipment and mineral oil hydraulic systems.
• Carbon steel body with yellow zinc plating
• Mating parts are hardened
• Nitrile O-ring seals
• Ball seal allows proper coupler function in presence of dirt, oils, etc.
• Easy coupling and uncoupling
• Though these are not swivel couplers, the two halves can rotate to reduce hose torsion
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Dixon: AG-Series
Pioneer
Parker: 4000 Series
Faster: NS
Frequently Bought Together
PolarSeal AC Coupler, Flareless Tube 733200335
$0.00
Couldn't load pickup availability
Metric Female Flareless Sleeve 733204215
$0.00
Couldn't load pickup availability
Industrial O-Ring Viton 5-1/8 x 5-3/8 x 1/8"
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-9/16 to 2-1/2"
$0.00
Couldn't load pickup availability
Hydraulic Dust Plug for Coupler Aluminum 1"
$0.00
Couldn't load pickup availability
Hydraulic Dust Plug for Coupler Aluminum 2"
$0.00
Couldn't load pickup availability
3TM3
$0.00
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
$0.00
Couldn't load pickup availability
Product Description
The integrity of your connection is only as good as the quality of your coupler or nipple. AG couplers and nipples provide the quality and reliability you need. They feature a quality design most commonly used in agricultural applications and are also suitable for use in construction, forestry equipment and mineral oil hydraulic systems.• Carbon steel body with yellow zinc plating
• Mating parts are hardened
• Nitrile O-ring seals
• Ball seal allows proper coupler function in presence of dirt, oils, etc.
• Easy coupling and uncoupling
• Though these are not swivel couplers, the two halves can rotate to reduce hose torsion
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Dixon: AG-Series
Pioneer
Parker: 4000 Series
Faster: NS
Technical Specifications
| Item#: | 28624 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Nipple |
| Style | ISO 5675 |
| Body Size | 1/4 " |
| Thread Size | 1/4-18 |
| Thread Style | Female NPT |
| Burst Pressure | 14,500 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Carbon Steel |
| Flow | 4 gal/min |
| Length | 1.28 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 4,350 PSI |
| Hex Size | 3/4 " |
| Maximum Diameter | 0.87 " |
| Coupled Length | 2.54 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.09 lb |
