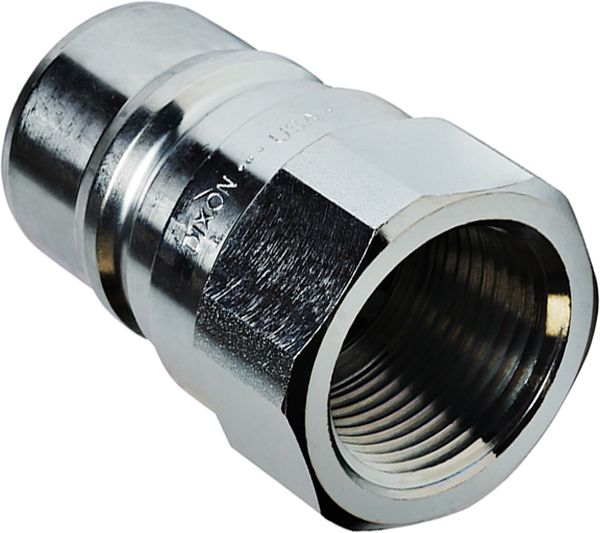

Hydraulic Quick Connect Nipple, Steel, ISO 7241 Series 'A', 1/2" x 1/2-14, Female NPTF, 1-7/8" Length, 3600PSI
(Pack of
1)
SKU:55907 Item#: 55907
These quality-manufactured couplers and nipples provide excellent performance, outstanding flow characteristics, little pressure drop, and quick connect and disconnect. Best for use with high-pressure hose, and for hydraulic, pneumatic and fluid lines (primarily high-pressure oil lines). Made of solid steel bar stock, they meet the most rugged performance standards.
• Equally effective for low-pressure hydraulic, pneumatic and fluid lines
• All units incorporate a Teflon® back-up ring to withstand dynamic impulse
• Specially tested to the most rugged industry standards
• Stainless steel springs
• Hardened nipples for maximum service life
• Corrosion-resistant finish
Dixon: K-Series
Parker: 6600 Series
Snap-tite: 61 Series
Faster: ANV Series
Hansen: IA Series
Frequently Bought Together
SAE R16S Hydraulic Hose Rubber 1.39" x 200'
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Nipple 3/4" x 3/4-14
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 15mm
$0.00
Couldn't load pickup availability
Product Description
These quality-manufactured couplers and nipples provide excellent performance, outstanding flow characteristics, little pressure drop, and quick connect and disconnect. Best for use with high-pressure hose, and for hydraulic, pneumatic and fluid lines (primarily high-pressure oil lines). Made of solid steel bar stock, they meet the most rugged performance standards.• Equally effective for low-pressure hydraulic, pneumatic and fluid lines
• All units incorporate a Teflon® back-up ring to withstand dynamic impulse
• Specially tested to the most rugged industry standards
• Stainless steel springs
• Hardened nipples for maximum service life
• Corrosion-resistant finish
Dixon: K-Series
Parker: 6600 Series
Snap-tite: 61 Series
Faster: ANV Series
Hansen: IA Series
Technical Specifications
| Item#: | 55907 |
|---|---|
| Body Size | 1/2 " |
| Thread Size | 1/2-14 |
| Thread Style | Female NPTF |
| Burst Pressure | 14,400 PSI |
| Material | Steel |
| Length | 1-7/8 " |
| Working Pressure | 3,600 PSI |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 0.14 lb |
