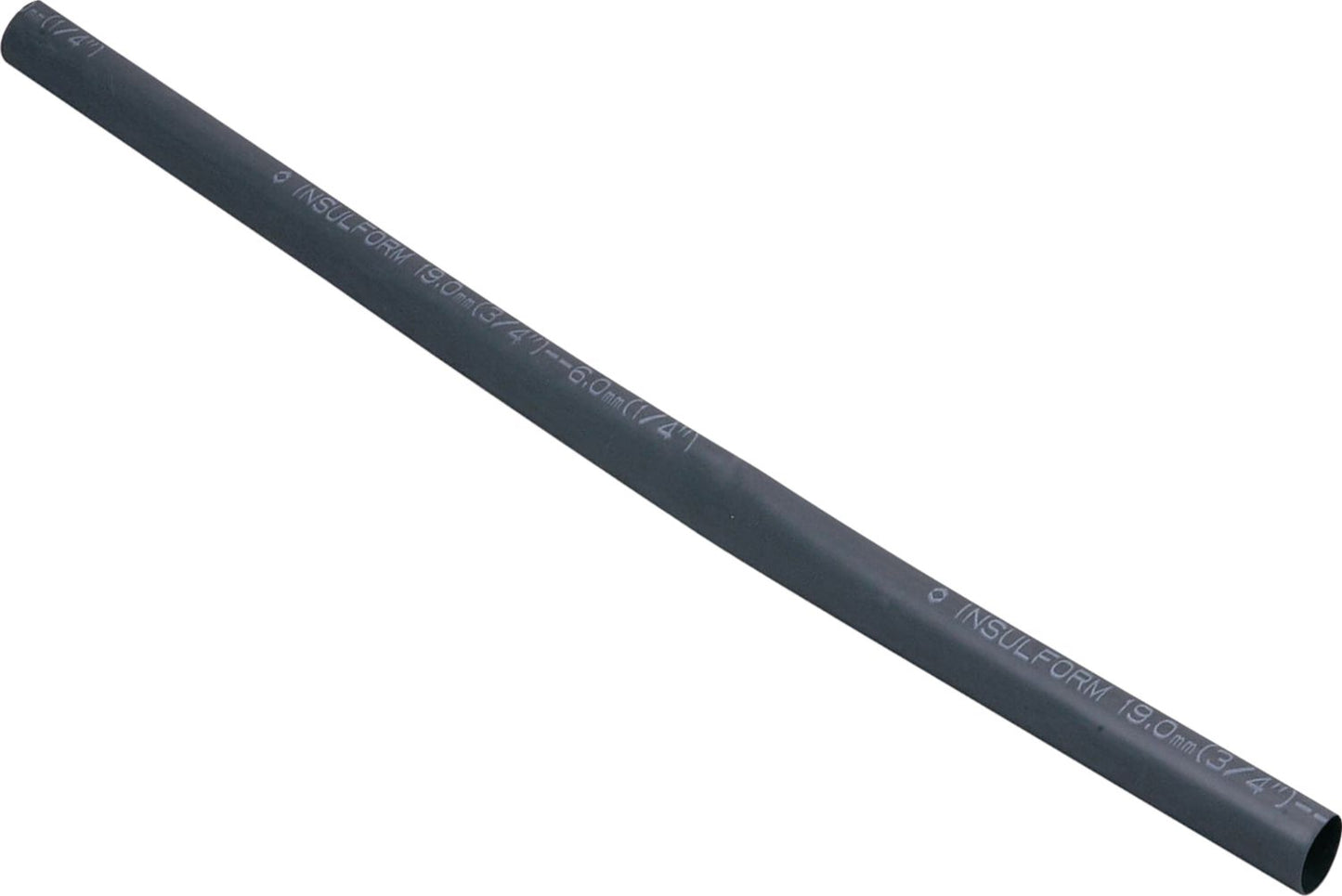

Insulform Heat Shrink Tubing 22 to 18 AWG Black
(Pack of
5.0)
• 3:1 shrink ratio
• Seals and helps protect electrical connections against failure due to water, moisture, corrosion, vibration, strain and abrasion
• The inner wall melts and adheres to the wire or cable insulation, encapsulating the connection; the outer wall shrinks, providing strength with flexibility and abrasion resistance
• Unaffected by most oils, fuels, solvents, chemicals and road salts
• High dielectric strength: 5,100 – 21,300V/mil minimum, depending on tubing diameter and amount of shrinkage
• Flame-resistant – meets CSA (OFT) and UL flammability ratings
• Easy to apply, low shrink temperature: 230°F (110°C)
• High tensile strength: 1,500 PSI minimum
• Wide continuous temperature range: –67°F to +230°F (–55°C to +110°C)
• Rated at 600V, 125°C• Meets MIL Specification 123053/4, Class 3
Applications
• Communications wire/antenna cable
• Instrumentation/electronics
• Vehicular electrical splices
• Biomedical instruments
• Solder and crimp joints
• Wire/cable strain relief
• Power cable splices
• Harness jackets
• Insulate splices
• Insulate tools
• Buss bars
• Burial capable
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Frequently Bought Together
Lithium Coin Cell Battery #2032 3V
Couldn't load pickup availability
Procell AAA Alkaline Battery 1.5V
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 36CP
Couldn't load pickup availability
Heat Shrink Tubing Black 3 x 18"
Couldn't load pickup availability

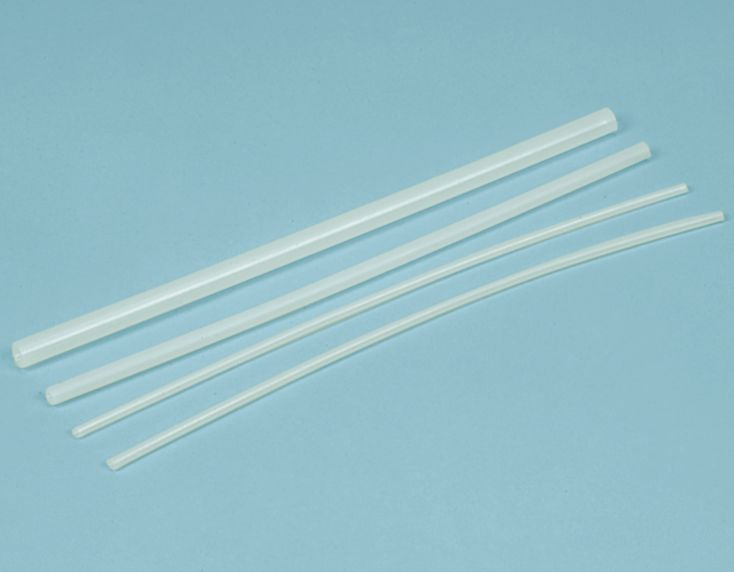

Heat Shrink Tubing 10/3 SJO AWG Clear
Couldn't load pickup availability
Heat Shrink Tubing Assortment 7 Items 50Pcs
Couldn't load pickup availability
Wheel House Molding Split Rivet Aluminum 3/16"
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Heat Shrink Tubing 18 to 16 AWG Black
Couldn't load pickup availability
Heat Shrink Tubing 16 to 14 AWG Black
Couldn't load pickup availability
Silifuse Identification Tape, Red, 1 In Width x .02 Thick x 10Ft Lengt
Couldn't load pickup availability
Product Description
• 3:1 shrink ratio• Seals and helps protect electrical connections against failure due to water, moisture, corrosion, vibration, strain and abrasion
• The inner wall melts and adheres to the wire or cable insulation, encapsulating the connection; the outer wall shrinks, providing strength with flexibility and abrasion resistance
• Unaffected by most oils, fuels, solvents, chemicals and road salts
• High dielectric strength: 5,100 – 21,300V/mil minimum, depending on tubing diameter and amount of shrinkage
• Flame-resistant – meets CSA (OFT) and UL flammability ratings
• Easy to apply, low shrink temperature: 230°F (110°C)
• High tensile strength: 1,500 PSI minimum
• Wide continuous temperature range: –67°F to +230°F (–55°C to +110°C)
• Rated at 600V, 125°C• Meets MIL Specification 123053/4, Class 3
Applications
• Communications wire/antenna cable
• Instrumentation/electronics
• Vehicular electrical splices
• Biomedical instruments
• Solder and crimp joints
• Wire/cable strain relief
• Power cable splices
• Harness jackets
• Insulate splices
• Insulate tools
• Buss bars
• Burial capable
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | P68790 |
|---|---|
| Type | Pre-Cut |
| Style | Dual Wall |
| Wire Gauge Coverage | 22-18 AWG |
| Diameter | 3/16 " |
| Length | 2 ft |
| Color | Black |
| I.D. Before Shrinkage | 3/16 " |
| I.D. After Shrinkage | 1/16 " |
| Dielectric Strength | 5,100 - 21,300 min V/mm |
| Voltage Rating | 600 V |
| Temperature Rating | -67°F to 230°F/ -55°C to 110°C |
| Shrink Temperature | 230 F |
| Tensile Strength | 1,500 PSI |
| Approvals | UL, CSA |
| UNSPSC #: | 39121723 |
| TAA Compliant: | No |
| Weight: | 0.07 lb |
