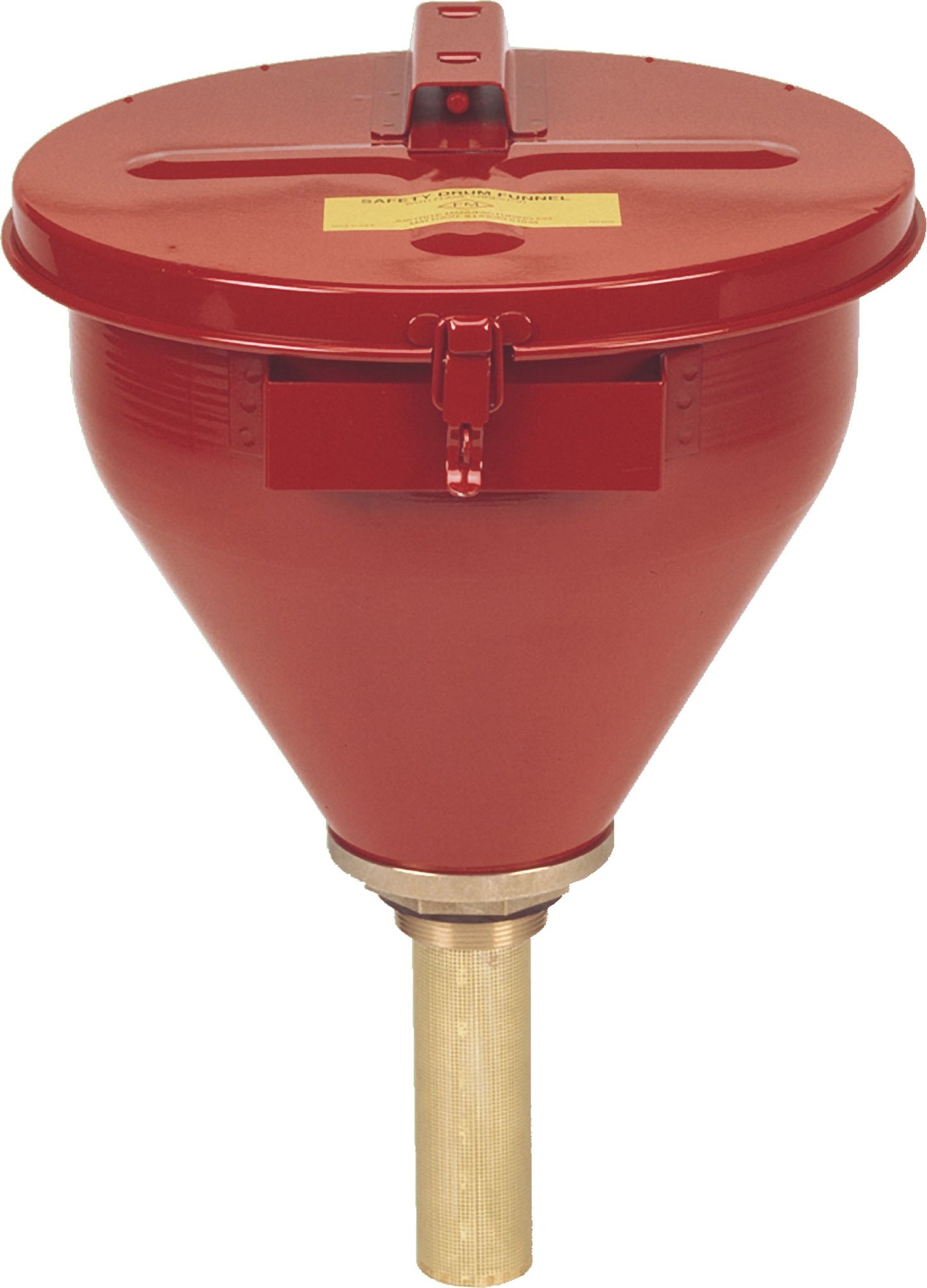

Justrite Safety Funnel
(Pack of
1.0)
Wide-mouth funnels fit 2" bung on a 30- or 55-gallon drums. Heavy, 18 Ga. galvanized steel with electrostatically-applied epoxy powder-coat paint provides durability and chemical resistance. Funnels intended for use with flammables are fitted with a brass flame arrester that absorbs and dissipates heat, preventing any external ignition source (like sparks from power tools, static electricity or cigarettes) from reaching the drum’s flammable contents. Larger funnels accept a lock to prevent unauthorized access. Self-closing covers have a fusible link that melts at 165°F (74°C). The cover then automatically shuts in case of a fire to extinguish the flames.
• Funnel size: 10-3/4" dia. x 10" high
• Mouth dia.: 10-3/4"
• Funnel capacity: 2.6 gal. (10L)
• Self-closing cover
All funnels comply with EPA and OSHA regulations and are FM approved.
Frequently Bought Together
Safety Funnel
Couldn't load pickup availability
Drum Funnel
Couldn't load pickup availability
Eagle Drum Funnel
Couldn't load pickup availability
Paint Marker Pink
Couldn't load pickup availability
High-Strength Double Side Molding Tape 5/8" x 50'
Couldn't load pickup availability
High-Strength Double Side Molding Tape 1/2" x 50'
Couldn't load pickup availability
Safety Storage Cabinet
Couldn't load pickup availability
Cigarette Receptacle
Couldn't load pickup availability
Safety Storage Cabinet
Couldn't load pickup availability
Marker Pen White
Couldn't load pickup availability
Prem Blk Ntrl Glvs, XLG, CS
Couldn't load pickup availability
Adhesive-Back Shim Stock 5/32 x 1/4" x 30'
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Couldn't load pickup availability
Nylon Cable Tie 7-1/2" Black
Couldn't load pickup availability
Product Description
Wide-mouth funnels fit 2" bung on a 30- or 55-gallon drums. Heavy, 18 Ga. galvanized steel with electrostatically-applied epoxy powder-coat paint provides durability and chemical resistance. Funnels intended for use with flammables are fitted with a brass flame arrester that absorbs and dissipates heat, preventing any external ignition source (like sparks from power tools, static electricity or cigarettes) from reaching the drum’s flammable contents. Larger funnels accept a lock to prevent unauthorized access. Self-closing covers have a fusible link that melts at 165°F (74°C). The cover then automatically shuts in case of a fire to extinguish the flames.• Funnel size: 10-3/4" dia. x 10" high
• Mouth dia.: 10-3/4"
• Funnel capacity: 2.6 gal. (10L)
• Self-closing cover
All funnels comply with EPA and OSHA regulations and are FM approved.
Technical Specifications
| Item#: | 1593104 |
|---|---|
| Style | Safety |
| Type | Drum Funnels |
| Height | 10 " |
| Material | 18 Gauge Galvanized Steel |
| Approvals | EPA, OHSA, FM |
| Description | With 6" Flame Arrestor |
| Diameter | 10-3/4 " |
| Capacity | 2.6 gal |
| Quantity Per Package | 1.0000 |
| UNSPSC #: | 27112902 |
| TAA Compliant: | No |
| Weight: | 9.8 lb |
