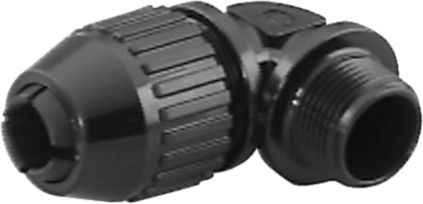

Liquidtight Strain Relief Connector, 3/4" Hub Size, Steel, Right Angled, 25/32" Throat Diameter Minimum, Nylon, Neoprene Bushing
(Pack of
2)
SKU:53319 Item#: 53319
• Achieves maximum pullout strength without installation tools – insert cord through connector and hand-tighten
• Corrosion-resistant
• Weather-stabilized nylon rated at –30°F to +221°F (–34°C to +105°C) indoor/outdoor
IMPORTANT: When a minimum size cord is used, the gland nut must be fastened tightly and as close as possible to shoulder.
Black Beauty® is a registered trademark of Thomas and Betts.
Frequently Bought Together
Trailer Cable 20' Coiled ABS Green
$0.00
Couldn't load pickup availability
Coaxial Cable 59/U 73 Ohms 100'
$0.00
Couldn't load pickup availability
Trailer Cable Harness 15' Straight Black
$0.00
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Master Series Handheld Flashlight
$0.00
Couldn't load pickup availability
Butt Connector 12 to 10 AWG Yellow
$0.00
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
$0.00
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
$0.00
Couldn't load pickup availability
Liquidtight Strain Relief Connector 1/4" Nylon
$0.00
Couldn't load pickup availability
Liquidtight Strain Relief Connector 1/2" Steel
$0.00
Couldn't load pickup availability
Liquidtight Strain Relief Connector 1/2" Steel
$0.00
Couldn't load pickup availability
Product Description
• Achieves maximum pullout strength without installation tools – insert cord through connector and hand-tighten• Corrosion-resistant
• Weather-stabilized nylon rated at –30°F to +221°F (–34°C to +105°C) indoor/outdoor
IMPORTANT: When a minimum size cord is used, the gland nut must be fastened tightly and as close as possible to shoulder.
Black Beauty® is a registered trademark of Thomas and Betts.
Technical Specifications
| Item#: | 53319 |
|---|---|
| Style | Liquidtight Strain Relief Connector |
| Size | 3/4"-90 |
| Cable Size Minimum | .560 " |
| Cable Size Maximum | .690 " |
| Hub Size | 3/4 " |
| Throat Diameter Minimum | 25/32 " |
| Approvals | UL, CSA |
| Maximum Temperature Rating | 221 F |
| Description | 90° |
| Type | Strain Relief Connectors |
| UNSPSC #: | 39121400 |
| TAA Compliant: | Yes |
| Weight: | 0.29 lb |
