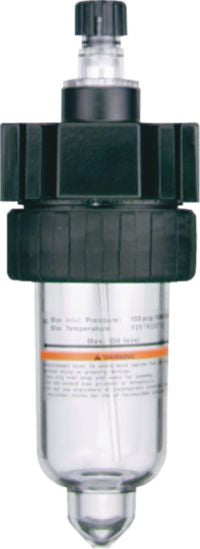

Lubricator, 1/2" Body, 3/8-18 Female NPT, 7.2oz, 65ft³/min, 150PSI
(Pack of
1)
SKU:55088 Item#: 55088
All modules can be completely assembled and disassembled with ordinary hex keys. No tools required for normal maintenance.
• Mist adjustment requires no tools (except 1/8" and 1", which require use of a screwdriver)
• Solid all-metal body
• Clear polycarbonate bowl
• 1" body size is all metal with a polycarbonate sight
Ideal for lubrication of air motors, tools and valves where air flow is encountered, these lubricators provide proportional oil delivery over a wide range of air flow. Generates oil particles of five microns or smaller, keeping the microscopic oil particles in suspension for system-wide lubrication.
Frequently Bought Together
Regulator 1-11-1/2 Female NPT
$0.00
Couldn't load pickup availability
Filter 1-11-1/2 Female NPT
$0.00
Couldn't load pickup availability
Port Block Connector 1/2-14 Female NPT
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Miniature Clamp SS 1/8 to 7/16"
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
$0.00
Couldn't load pickup availability
Product Description
All modules can be completely assembled and disassembled with ordinary hex keys. No tools required for normal maintenance.• Mist adjustment requires no tools (except 1/8" and 1", which require use of a screwdriver)
• Solid all-metal body
• Clear polycarbonate bowl
• 1" body size is all metal with a polycarbonate sight
Ideal for lubrication of air motors, tools and valves where air flow is encountered, these lubricators provide proportional oil delivery over a wide range of air flow. Generates oil particles of five microns or smaller, keeping the microscopic oil particles in suspension for system-wide lubrication.
Technical Specifications
| Item#: | 55088 |
|---|---|
| Description | Lubricator |
| Body Size | 1/2 " |
| Maximum Flow | 65 ft³/min |
| Maximum Pressure | 150 PSI |
| Port Style | Female NPT |
| Port Size | 3/8-18 |
| Bowl Capacity | 7.2 Oz. |
| Replacement Polycarbonate Bowl | 56957* |
| Replacement Metal Bowl | 56958 |
| UNSPSC #: | 27131600 |
| TAA Compliant: | Yes |
| Weight: | 2.7 lb |
