Home Fasteners Multi-Grip Rivet Dome Head Aluminum 1/4"
Fasteners

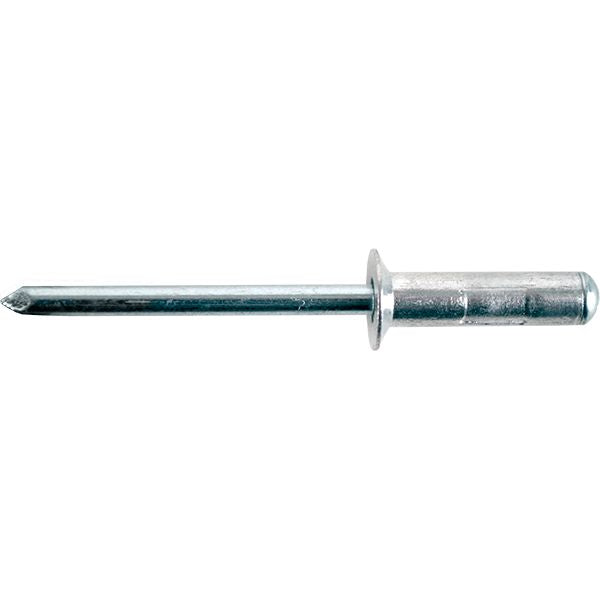

Multi-Grip Rivet, Dome Head, Aluminum Body/Steel Mandrel, 1/4" Diameter, 0.062 to 0.25" Grip Range, 0.472" Body Length
(Pack of 100)

Item#: 1543603

Kent Automotive

Dome Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets, reducing inventory
• Excellent hole-fill capability compensates for irregular holes
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

Read More
Check Availability

Catalog page#: 11-114

Frequently Bought Together


SAE J995C Locknut with Nylon Insert Grade 8 3/8-16

Item#: 53981

Hex Nut Grade 8 Alloy Steel 1/4-20

Item#: A100

Open End Rivet Large Flange Head Aluminum 3/16"

Item#: 82353

Multi-Grip Rivet 120° Countersunk Head 3/16"

Item#: 1543589

Multi-Grip Rivet Dome Head Aluminum 3/16"

Item#: 1543599

Multi-Grip Rivet Dome Head Aluminum 3/16"

Item#: 1981

Tigerbolt® Structural Rivet External Lock 3/16"

Item#: 1543620

Super-Grip Blind and Closed-End Rivet Assortment

Item#: LP454BL

Open End Rivet Dome Head Stainless Steel 3/16"

Item#: 97071

Molding Clip with Sealer Nylon White 11.5 x 21

Item#: 1457520

Nylon Cable Tie 11-3/4" Black

Item#: KT13409

Front Bumper and Radiator Support Drive Rivet

Item#: KT13537

Product Description

Dome Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets, reducing inventory
• Excellent hole-fill capability compensates for irregular holes
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

Technical Specifications

Item#: 1543603
Type Multi-Grip
Head Style Dome Head
Material Body / Mandrel Aluminum/Steel
Diameter 1/4 "
Grip Range 0.062 – 0.250 "
Hole Size 0.257 – 0.261 "
Head Diameter 0.511 "
Head Height 0.070 "
Body Length 0.472 "
Shear Strength 630 lb
Tensile Strength 900 lb
UNSPSC #: 31162201
TAA Compliant: No
Weight: 1.68 lb
