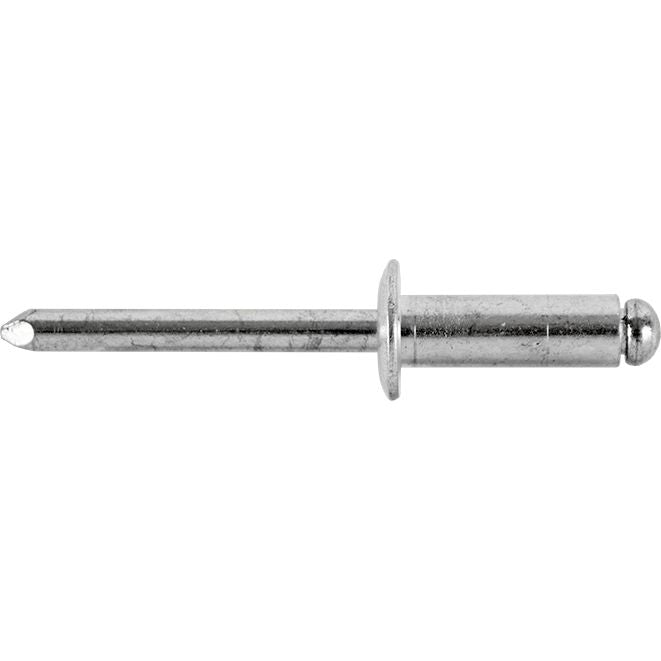

Open End Rivet, Dome Head, Aluminum Body/Steel Mandrel, 1/4" Diameter, 0.376 to 0.5" Grip Range, 0.75" Body Length
(Pack of
100)
SKU:85109 Item#: 85109
Dome Head
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Couldn't load pickup availability
Catalog page#: 11-108
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M10-1.25 x 30mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 25mm
Couldn't load pickup availability
Hex Flange Nut Grade 10 Steel M10-1.5
Couldn't load pickup availability
Sealing-Type Blind Rivet Large Flange Head 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Sealing-Type Blind Rivet Large Flange Head 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Couldn't load pickup availability
Product Description
Dome Head• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Technical Specifications
| Item#: | 85109 |
|---|---|
| Type | Open End |
| Head Style | Dome Head |
| Material Body / Mandrel | Aluminum/Steel |
| Diameter | 1/4 " |
| Grip Range | 0.376 – 0.500 " |
| Industry Number | 88 |
| Hole Size | 0.257 – 0.261 " |
| Drill Size | F |
| Head Diameter | 0.500 " |
| Head Height | 0.080 " |
| Body Length | 0.750 " |
| Shear Strength | 700 lb |
| Tensile Strength | 920 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 1.5 lb |
