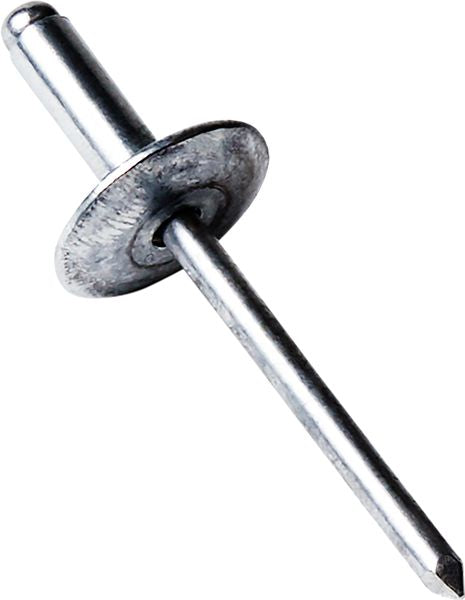

Open End Rivet, Large Flange Head, Aluminum, 3/16" Diameter, 0.251 to 0.375" Grip Range, 0.575" Body Length
(Pack of
100)
SKU:490 Item#: 490
Large Flange
• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application
Frequently Bought Together
Open End Rivet Dome Head Aluminum 5/32"
Item#: 1969
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Item#: 484
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Item#: 489
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 5/32"
Item#: 1969
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Item#: 484
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Item#: 489
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 5/32"
Item#: 1969
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Item#: 484
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Item#: 489
$0.00
Couldn't load pickup availability
Rear Bumper Cover Retainer Plastic 18mm
Item#: P23263
$0.00
Couldn't load pickup availability
Bumper and Wheel Well Liner Push-Type Retainer
Item#: 1404768
$0.00
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Item#: 1365427
$0.00
Couldn't load pickup availability
Product Description
Large Flange• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application
Technical Specifications
| Item#: | 490 |
|---|---|
| Type | Open End |
| Head Style | Large Flange |
| Material Body / Mandrel | Aluminum/Aluminum |
| Diameter | 3/16 " |
| Grip Range | 0.251 – 0.375 " |
| Industry Number | 66 |
| Hole Size | 0.192 – 0.196 " |
| Drill Size | #11 |
| Head Diameter | 0.625 " |
| Head Height | 0.092 " |
| Body Length | 0.575 " |
| Shear Strength | 260 lb |
| Tensile Strength | 320 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.49 lb |
