Home Fasteners Open End Rivet Large Flange Head Steel 1/8"
Fasteners

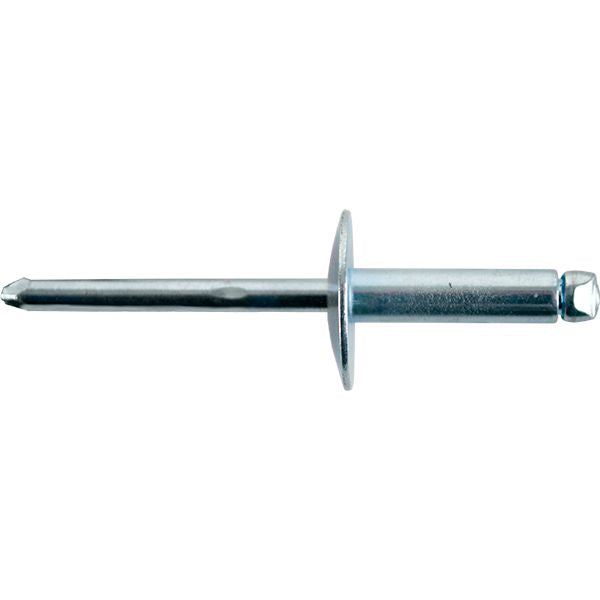

Open End Rivet, Large Flange Head, Steel, 1/8" Diameter, 0.313 to 0.375" Grip Range, 0.525" Body Length
(Pack of 100)

Item#: 41626

Kent Automotive

Large Flange
• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application

Read More
Check Availability

Catalog page#: 11-111

Frequently Bought Together


DIN 125A Flat Washer Grade 140 HV M8

Item#: 80263

SAE Flat Washer Thru-Hardened Steel 1/4"

Item#: FA88435

Hex Cap Screw Property Class 8.8 M6-1 x 16mm

Item#: 27330

Open End Rivet Dome Head Stainless Steel 3/16"

Item#: 97071

Open End Rivet Large Flange Head SS 1/8"

Item#: 97076

Open End Rivet Dome Head Aluminum 1/4"

Item#: 85109

Open End Rivet Dome Head Aluminum 3/16"

Item#: 1543553

Structural Rivet Internal Lock Steel 1/4"

Item#: 90481

Open End Rivet Dome Head Aluminum 1/8"

Item#: 1967

Front Bumper Specialty Nut Steel M4.2-1.41

Item#: 1420584

Shield Push-Type Retainer with Metal Insert

Item#: P85253

Rocker Panel Molding Clip Nylon White 12 x 20mm

Item#: P85316

Product Description

Large Flange
• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application

Technical Specifications

Item#: 41626
Type Open End
Head Style Large Flange
Material Body / Mandrel Steel/Steel
Diameter 1/8 "
Grip Range 0.313 – 0.375 "
Industry Number 46
Hole Size 0.129 – 0.133 "
Drill Size #30
Head Diameter 0.375 "
Head Height 0.065 "
Body Length 0.525 "
Shear Strength 260 lb
Tensile Strength 310 lb
UNSPSC #: 31162201
TAA Compliant: No
Weight: 0.48 lb
